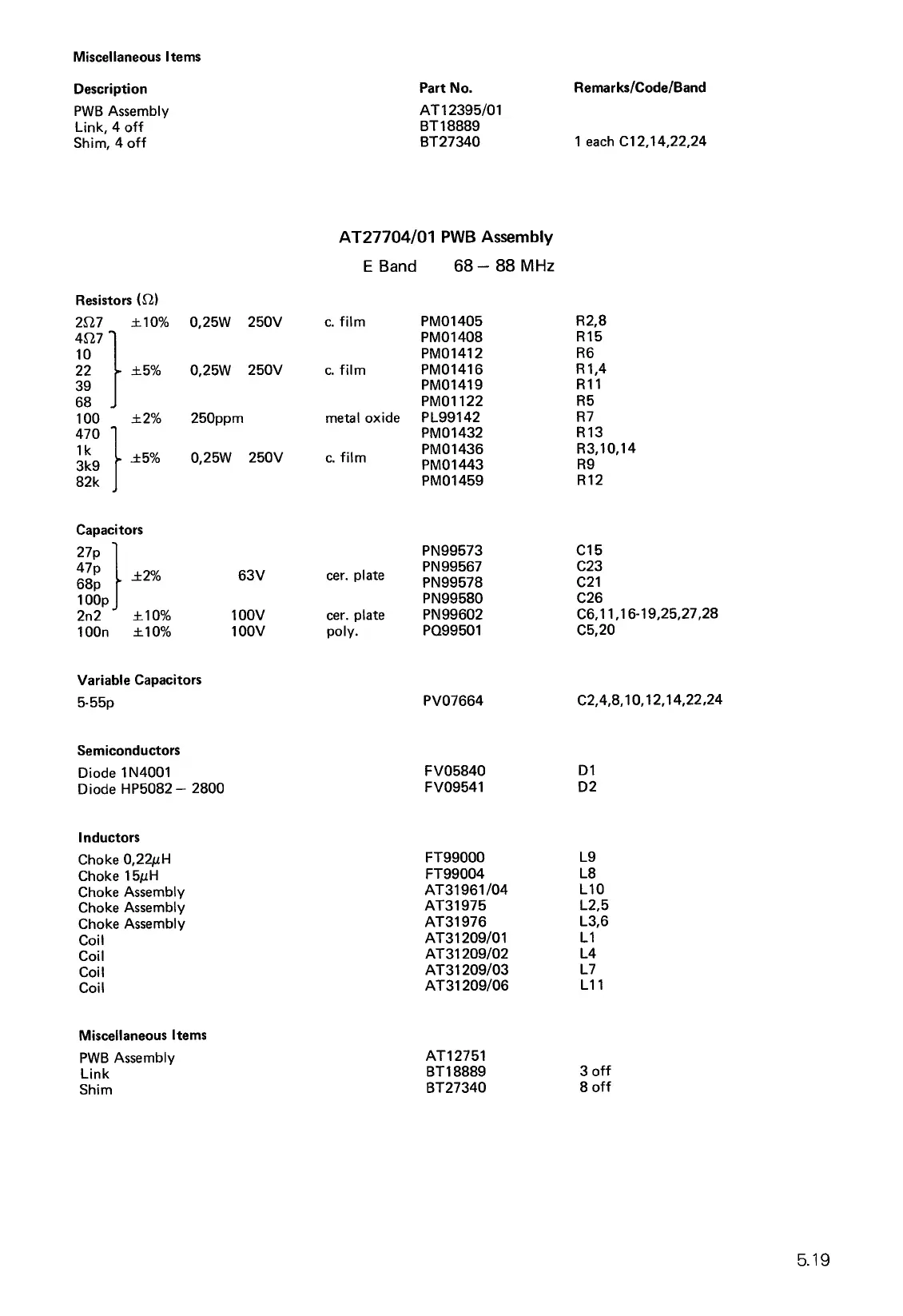

PYE OLYMPIC M201 - Page 84

Miscellaneous Items
Description 
Part No.

Remarks/Code/Band
PWB Assembly

AT12395/01
Link, 4 off 
BT18889
Shim, 4 off

BT27340 
1 each C12,14,22,24
AT27704/01 PWB Assembly
E Band 
68 — 88 MHz
Resistors
(IA
227 
±10% 0,25W 250V
427 -
10
22
.±.5% 0,25W
250V
39
68
100 
.±2%
250ppm
470
1k
3k9
. .±5%
0,25W 250V
82k
c. film 
PM01405 
R2,8

PM01408 
R15

PM01412 
R6
c. film 
PM01416

R1,4

PM01419 
R11

PM01122 
R5

metal oxide PL99142

R7

PM01432 
R13

PM01436 
R3,10,14
c. film

PM01443 
R9

PM01459 
R12
Capacitors
27p
47p
68p
±2%
}
63V
cer. plate
100p
2n2 
.±.10%
100V
cer. plate
100n 
±10%
100V
poly.
PN99573 
C15
PN99567

C23
PN99578 
C21
PN99580 
C26
PN99602 
C6,11,16-19,25,27,28
PQ99501 
C5,20
Variable Capacitors
5-55p 
PV07664

C2,4,8,10,12,14,22,24
Semiconductors
Diode 1N4001

FV05840

D1
Diode HP5082 — 2800

FV09541

D2
Inductors
Choke 0,220

FT99000 
L9
Choke 15/.2H

FT99004 
L8
Choke Assembly

AT31961/04 
L10
Choke Assembly

AT31975 
L2,5
Choke Assembly

AT31976 
L3,6
Coil

AT31209/01 
L1
Coil 
AT31209/02 
L4
Coil 
AT31209/03 
L7
Coil

AT31209/06 
L11
Miscellaneous Items
PWB Assembly

AT12751
Link 
BT18889
Shim 
BT27340
3 off
8 off
