ID INFORMATION
Device ID: Must be eight (8) alphanumeric character spaces. (For example, ALFGW001)
Device Type:
 Well: An active gas extraction well connected to a piping network which may require a
flow rate reading.
 Sample Port: A sample point along a gas transmission line that may require a flow rate.
 Probe: A passive gas migration monitoring probe that does not require a flow rate.
The GEM5000 calculates flow rate values specific to each device type (listed above). The
available flow devices programmed in GEM mode are listed below.
Flow Devices:

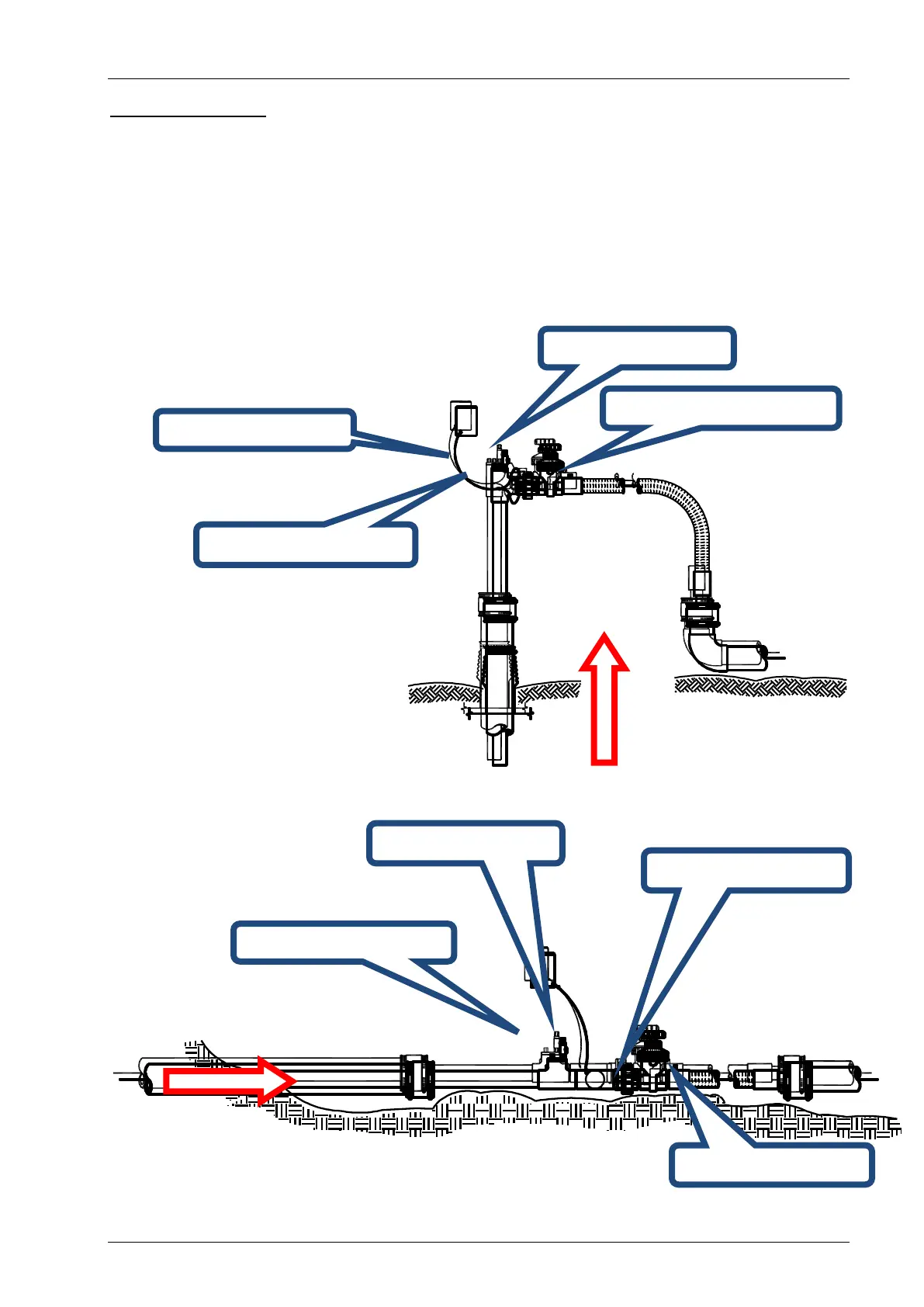

Figure 1 - ACCU-FLO Vertical Wellhead
Figure 2 - ACCU-FLO Horizontal Wellhead
Static Pressure Port
Impact Pressure Port
Temperature Port
System Pressure Port
Static Pressure Port
Temperature Port
System Pressure Port
Impact Pressure Port
