GEM5000 Gas Analyzer
Page 86 of 102

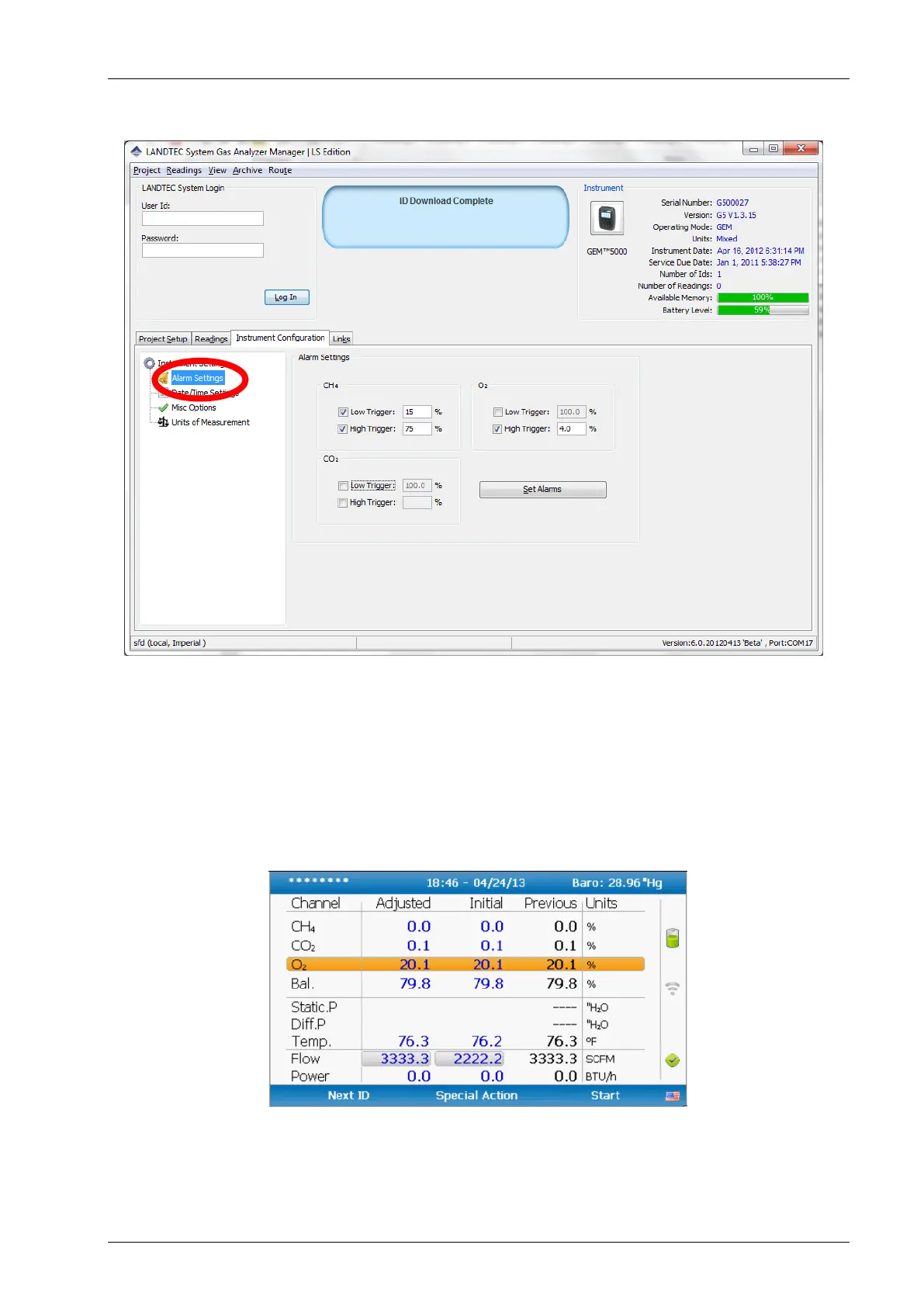

10.7.12 Alarm Settings
The Alarm Settings options control the activation and deactivation of the audible alarms in
the instrument. Audible alarms can be configured for CH
4
, CO
2
, and O
2
parameters
(additional gases present on plus model instrument). Each parameter can be configured with
a Low Trigger and/or High Trigger for the alarm. To activate any specific alarm, click and
place a checkmark in the desired box. This will activate the entry field to place the value.
The values must be 0 – 100 percent. When alarms are set, the instrument will highlight the
composition component in orange on the 5000 instrument on the 2000 instrument it will beep
and flash the parameter on the screen if an alarm threshold is surpassed when taking a gas
reading. Refer to the section titled “Set Alarms” for additional options that are available for
setting alarms directly on the 5000’s instrument.
Figure 7—Alarm Highlighting Example
