178 QXS G2 Hardware Installation and Maintenance Guide

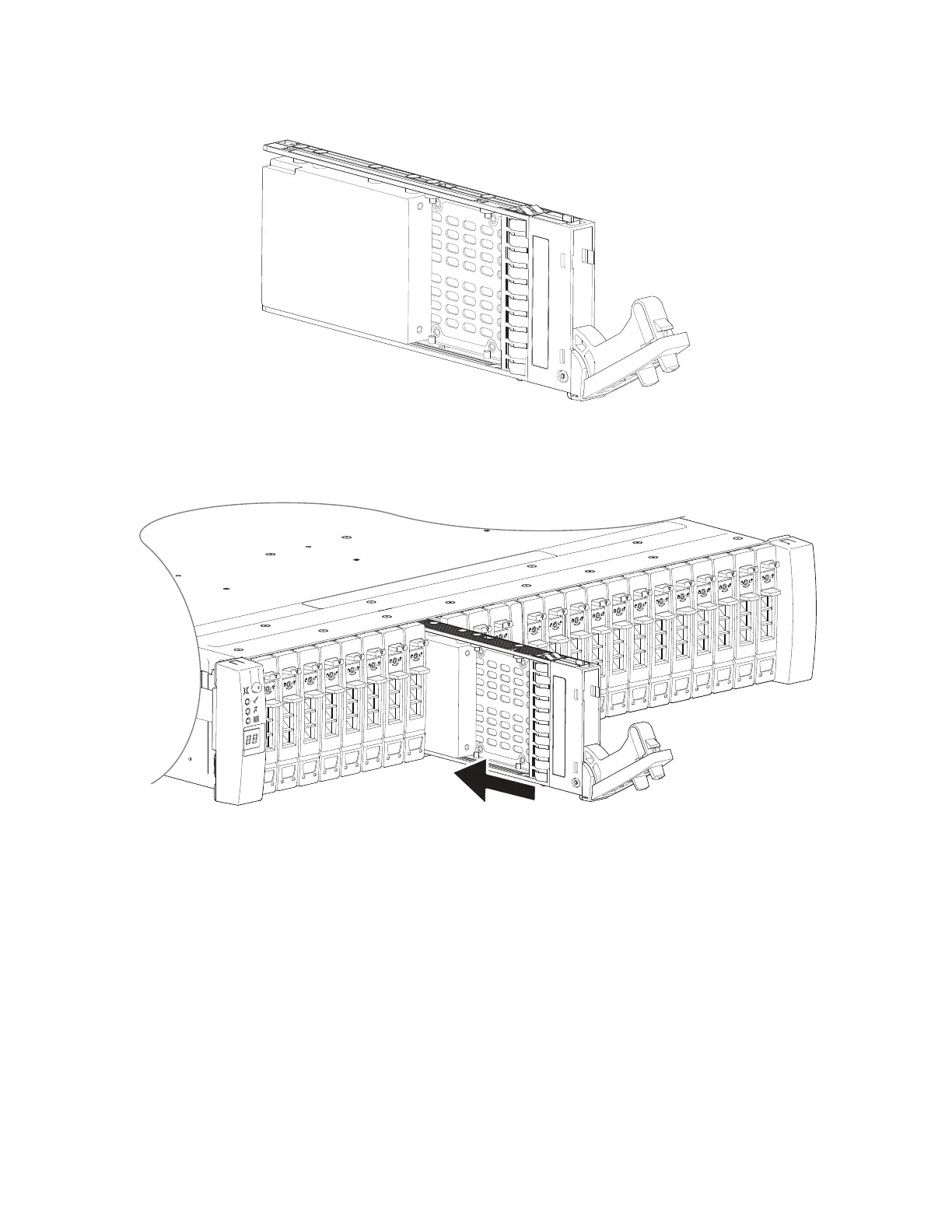

Figure 141 2/5” SFF Drive Carrier Module in Open Position
4 Slide the carrier fully into the chassis until it is stopped by the camming lever on the bottom of the
carrier.
Figure 142 Installing a 2.5” SFF Drive Carrier Module-1
5 Cam the carrier home.
