118 QXS G2 Hardware Installation and Maintenance Guide
2U Chassis Ops Panel LEDs
The Ops panel displays the aggregated status of all the 2U chassis CRU modules. Figure 99 provides
an illustration of the Ops panel LEDs for the RAID or expansion chassis.

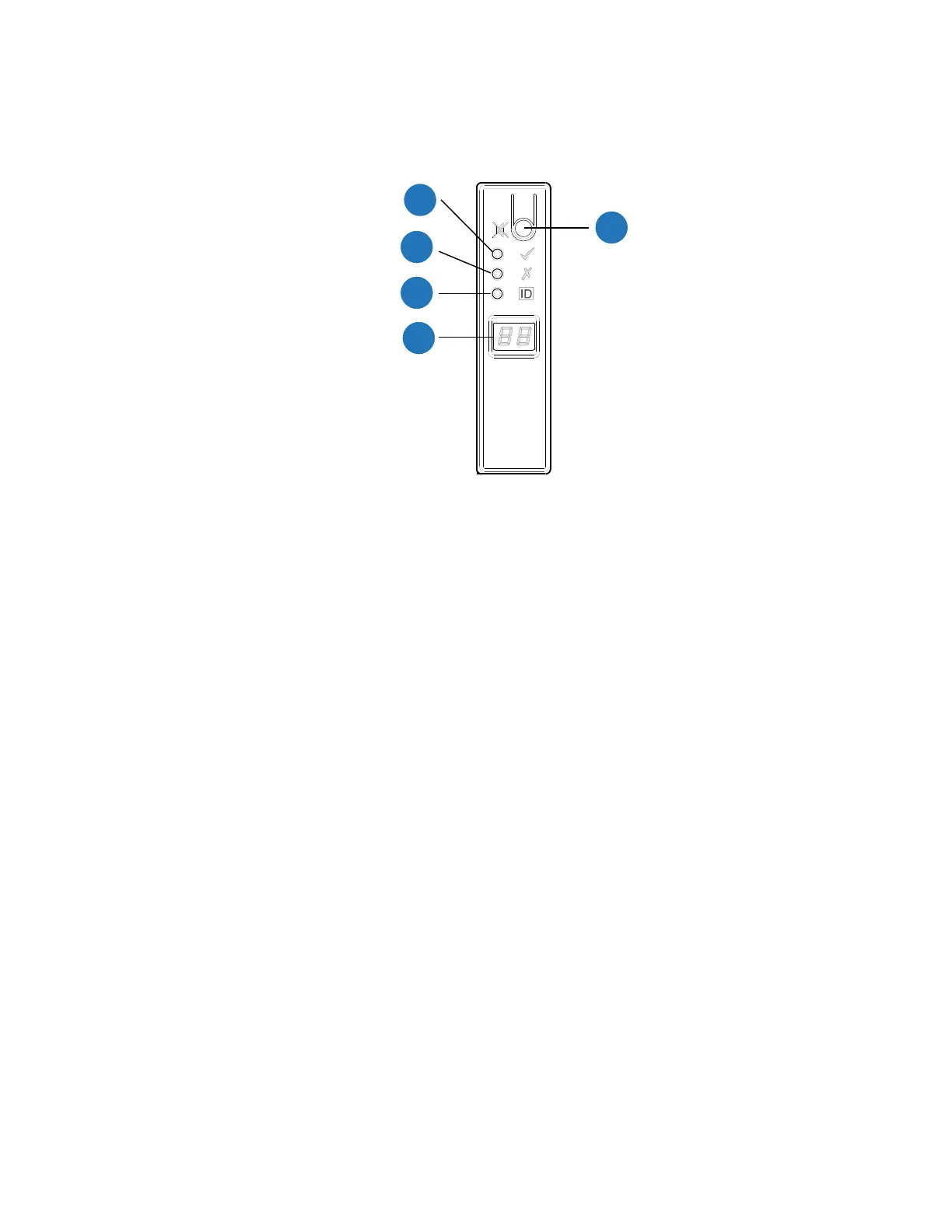

Figure 99 2U Chassis Ops Panel Functions
LED Status
1
Unit Identification Display Green: Seven segment display: chassis sequence
2
Identity Blue: Power On (5s) test state
3
Module Fault Constant or blinking amber: fault present
4
System Power On/Standby Constant Green: positive indication
Constant Amber: fault present
5
Mute Button Not used
Note: Chassis has a thermal sensor behind the ops panel.
3
4
5
2
1
