Installation 103
Connecting Two 5U Systems for Replication (Multiple Servers/Switches)

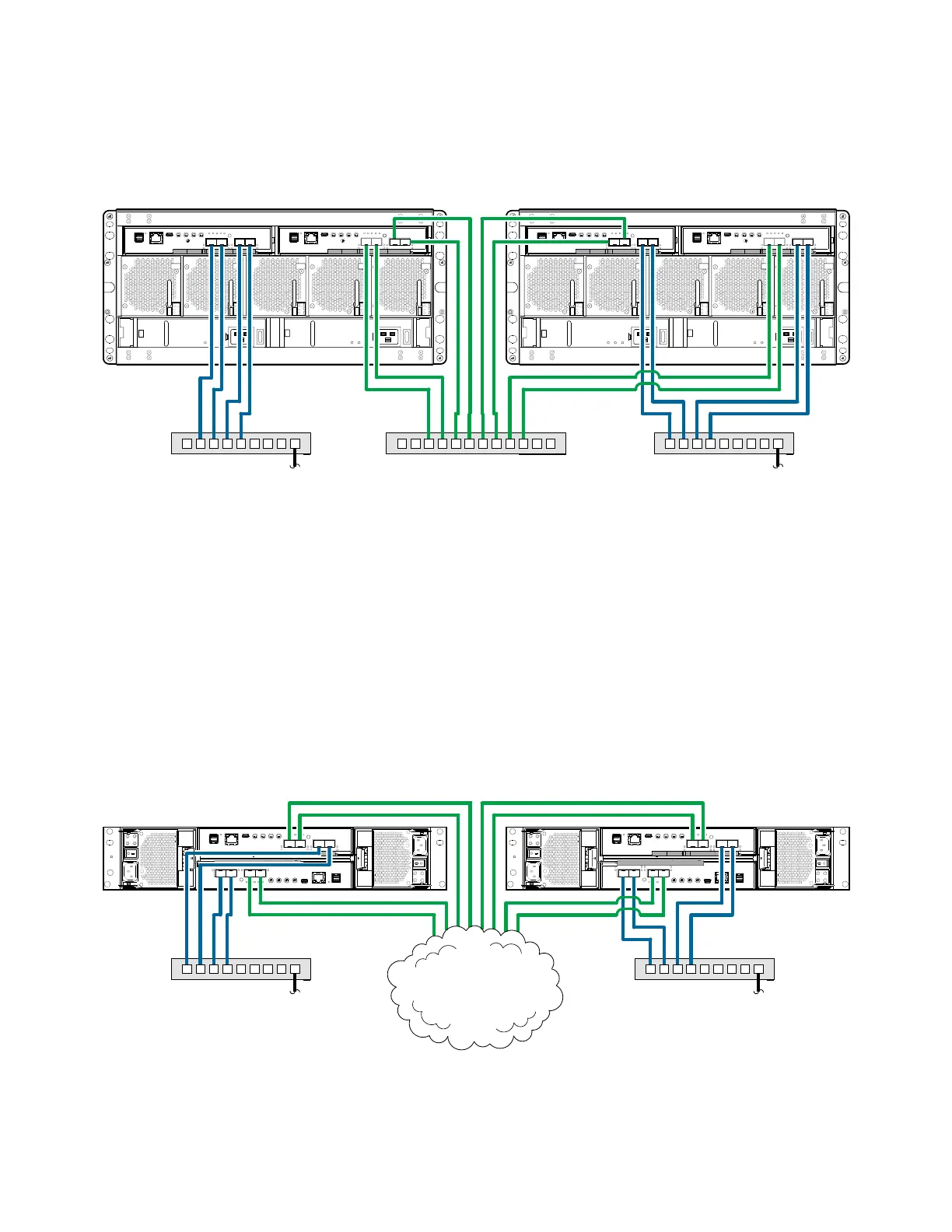

Figure 90 provides an illustration of connecting two 5U84 RAID chassis (storage systems) for
replication (multiple servers/switches/one location).
Figure 90 Connecting Two 5U Systems for Replication (Multiple Servers/Switches)
Multiple Servers/Different Networks/Multiple Switches
Figure 91 (2U) and Figure 93 on page 104 (5U) each show the rear panel of two chassis with I/O and
replication occurring on different networks. The I/O traffic occurs on the SAN, and the replication
traffic occurs on the Ethernet WAN.
Connecting Two 2U Systems (4-Host Ports) for Replication (Multiple
Servers/Switches/Locations)
Figure 91 provides an illustration of connecting two 2U12/2U24 RAID chassis (storage systems) for
replication (multiple servers/switches/two locations).
Figure 91 Connecting Two 2U Systems (4-Host Ports) for Replication (Multiple
Servers/Switches/Locations)
RAID Chassis RAID Chassis
To Host Servers To Host Servers
RAID Chassis RAID Chassis
I/O Switch I/O Switch
To Host Servers
(Site A)
To Host Servers
(Site B)
Ethernet WAN
To Next Page
