102 QXS G2 Hardware Installation and Maintenance Guide
Connecting Two 2U Systems (4-Host Ports) for Replication (Multiple Servers/Switches)
Figure 88 provides an illustration of connecting two 2U12/2U24 RAID chassis (storage systems) for
replication (multiple servers/switches/one location)..

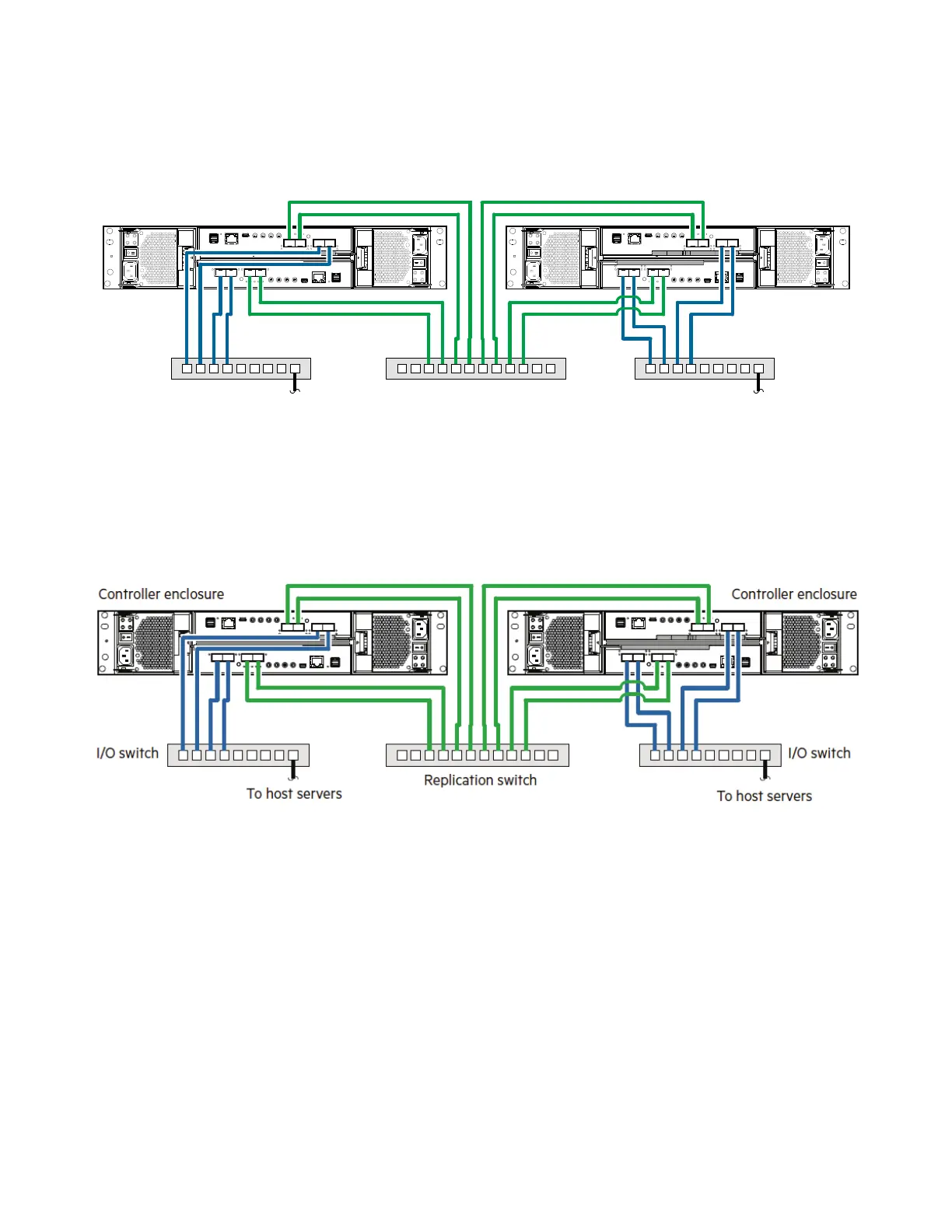

Figure 88 Connecting Two 2U Systems (4-Host Ports) for Replication (Multiple Servers/Switches)
Connecting Two 2U Systems (2-Host Ports) for Replication (Multiple Servers/Switches)
Figure 89 provides an illustration of connecting two 2U12/2U24 RAID chassis (storage systems) for
replication (multiple servers/switches/one location)..
Figure 89 Connecting Two 2U Systems (2-Host Ports) for Replication (Multiple Servers/Switches)
RAID Chassis RAID Chassis
I/O Switch I/O Switch
To Host Servers To Host Servers
