Quantum QXS G2 Series - Page 210

198 QXS G2 Hardware Installation and Maintenance Guide
2 Using a T20 torque-tip driver unlock the anti-tamper locks (2 each) on the left and right side of the
chassis bezel.

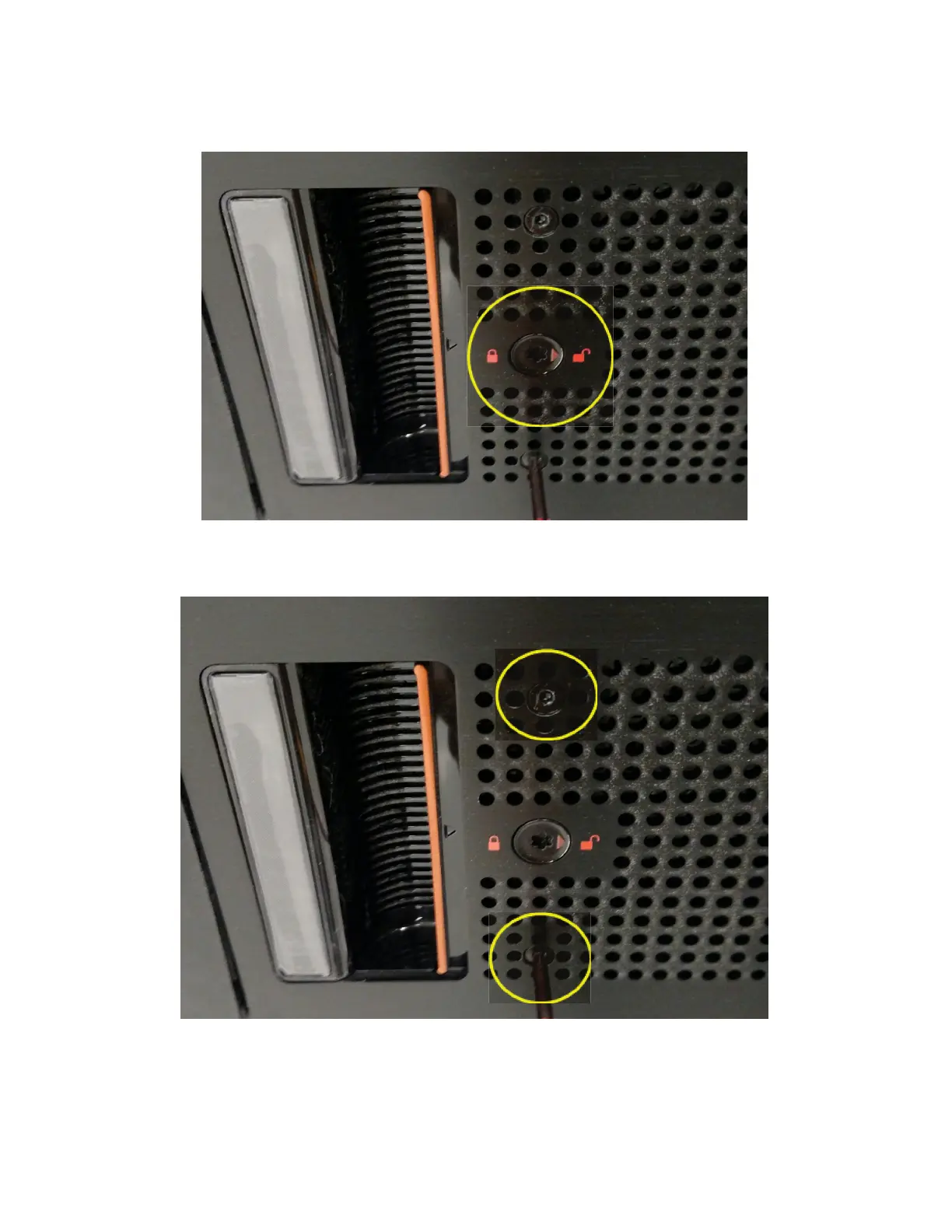

Figure 156 5U84 Chassis Unlock Anti-tamper Locks
3 Using a T8 torque-tip driver remove the four bezel screws on left and right side of the bezel.
Figure 157 5U84 Chassis Bezel Screws (4 Each)
