114 | Puma 20/40114 |

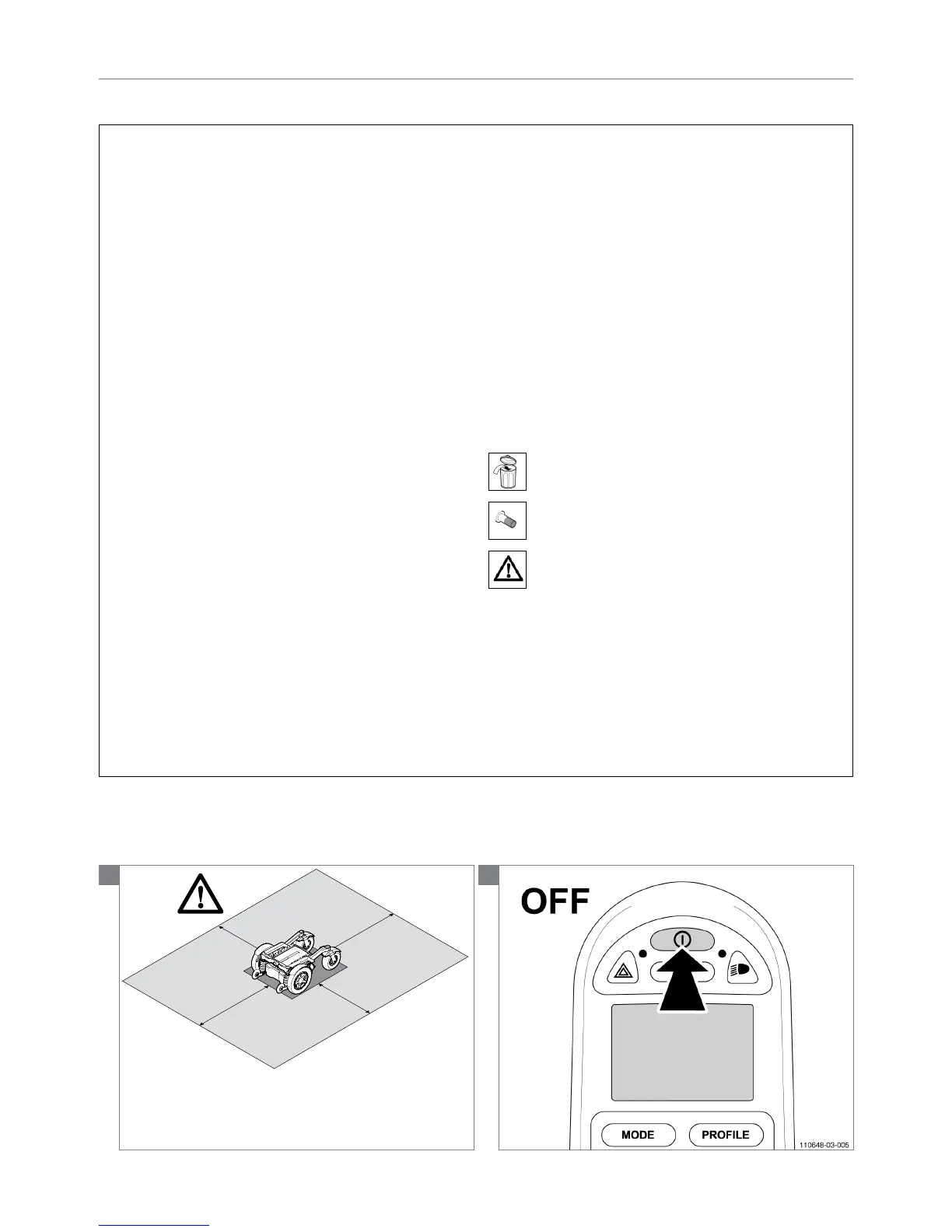

5.3.10 Replacing the drive wheel, indoor/outdoor Puma 40 / 3-spoke wheels > October 2016
Preparation
• Switch off the wheelchair via the remote control.
• Be sure that the freewheel switch is in ‘drive’ mode. If
the freewheel switch is in ‘push’ mode this will make
loosening the bolts impossible.
• Use a lifting device to raise the drive wheels clear of the
ground.
Instructions
• Remove the cap and remove the bolts and the locking
washers.
• Replace the new drive wheel.
• Screw the bolts with rings into the shaft and put the cap
back again.
• Check the tyre pressures.
Notice
Inate the tube to the correct pressure! (See ‘Technical
specications’)
Relevant article numbers
9011621 Wheel Mount hub assy 3-Spoke Wheel Service
9011616 Drive wheel mounting set, Puma 40 / 3-spoke
wheels, version > October 2016
9011617 Drive wheel outdoor 3.00-8 (14"), black / black, air
9011618 Drive wheel outdoor 3.00-8 (14"), black / black, air,
set
9011619 Drive wheel outdoor 3.00-8 (14"), black / black,
punctureproof
9011620 Drive wheel outdoor 3.00-8 (14"), black / black,
punctureproof, set
Tools used
• Lifting device
• Screwdriver
• Hammer (plastic)
• Torque wrench, socket, 5/16
• Water pump pliers
Icons
Parts need to be replaced. Dispose of waste parts in
accordance with local regulations
Bolts are provided with Loctite thread locker!
Note! Be aware of the issue!
1
min.
100 cm
min.
100 cm
min.
75 cm
min.
75 cm
110648-03-001
Note! Suitable work area required!
2
