Pos Qty Article number Description
1-9 2 9005963 Anti tip complete FWD
1,3,4,6 2 9002896 Anti tip wheel FWD
10-18 2 9005962 Anti tip complete RWD
10,12,13,15 2 9002897 Anti tip wheel RWD
19 1 9011556 Rubber suspension set Puma 20, version > October 2016
24a, 25-29 1 9011666 Motor bracket, RWD right/FWD left, version > October 2016
24b, 25-29 1 9011667 Motor bracket, RWD left/FWD right, version > October 2016
25,27-32,33,37,38 1 9007478 Motor set, 6 km/h DX and Shark, Puma 20
25,27-32,33a,37,38 1 9007479
Motor RWD right/FWD left, 6 km/h DX and Shark, Puma 20, see paragraph
5.2.1.
25,27-33b,37,38 1 9007480
Motor RWD left/FWD right, 6 km/h DX and Shark, Puma 20, see paragraph
5.2.1.
25,27-34,37,38 1 9007481 Motor set, 6 km/h PG (R-net and VR2), Puma 20
25,27-34a,37,38 1 9007482
Motor RWD right/FWD left, 6 km/h PG (R-net and VR2), Puma 20, see
paragraph 5.2.1.
25,27-34b,37,38 1 9007483
Motor RWD left/FWD right, 6 km/h PG (R-net and VR2), Puma 20, see
paragraph 5.2.1.
25,27-35,37,38 1 9007484 Motor set, 10 km/h DX and Shark, Puma 20
25,27-35a,37,38 1 9007485
Motor RWD right/ FWD left, 10 km/h DX and Shark, Puma 20, see paragraph
5.2.1.
25,27-35b,37,38 1 9007486
Motor RWD left/FWD right, 10 km/h DX and Shark, Puma 20, see paragraph
5.2.1.
25,27-36,37,38 1 9007487 Motor set, 10 km/h PG (R-net and VR2), Puma 20
25,27-36a,37,38 1 9007488
Motor RWD right/FWD left, 10 km/h PG (R-net and VR2), Puma 20, see
paragraph 5.2.1.
25,27-36b,37,38 1 9007489
Motor RWD left/FWD right, 10 km/h PG (R-net and VR2), Puma 20, see
paragraph 5.2.1.
30-31 2 1015807 Freewheel lever, Puma 20, Puma 40 version < November 2016
32 2 9002784 Brake Release Sticker
37 1 9006360 Puma 20 Motor Brushes 4pc service
38 2 9006452 Puma 20 Motor Brake Cover service

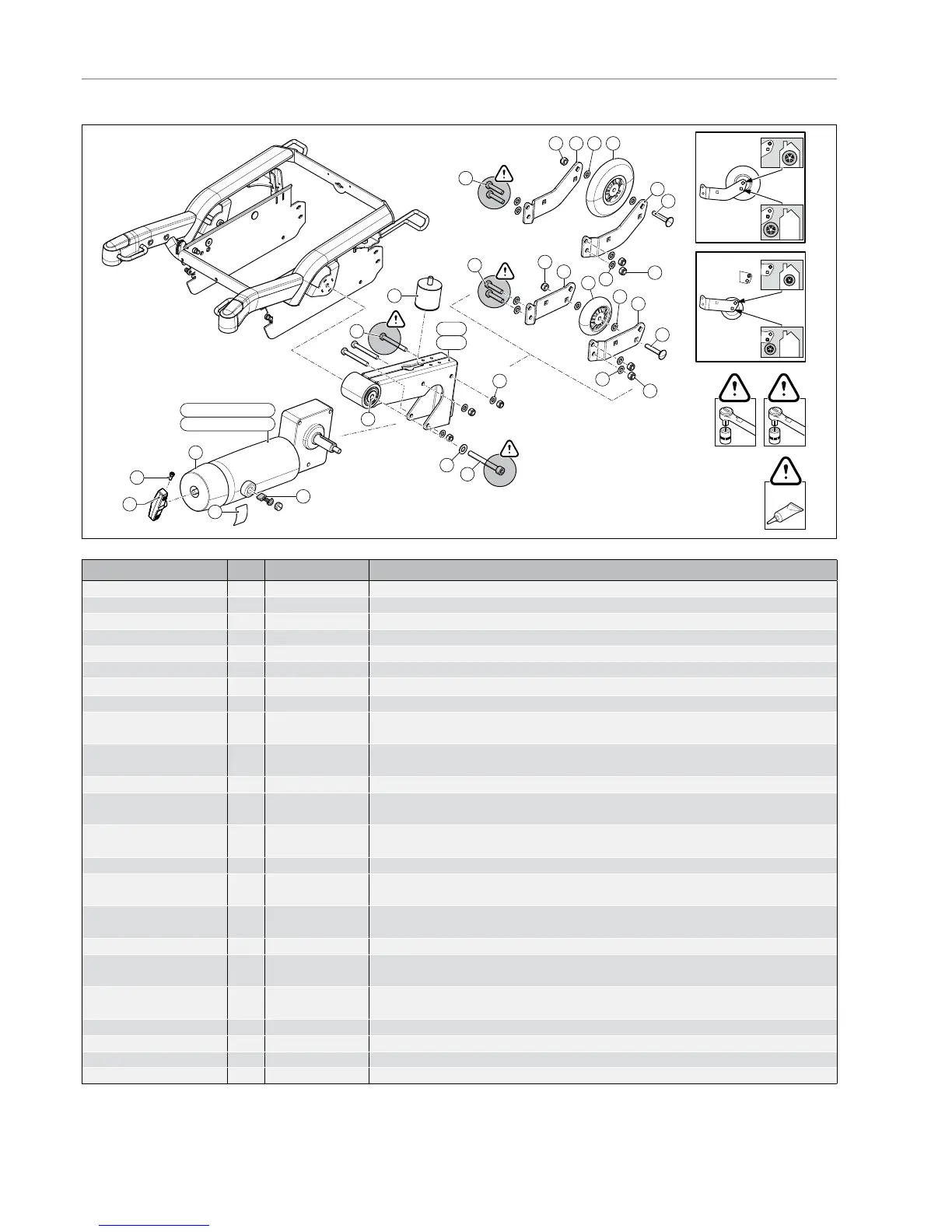

6 Suspension arm and motors Puma 20 > October 2016
A
B,C
A
A
RWD
FWD
32
37
13
26
30
19
29
25
28
27
31
11
1
5
10
15
8
7
18
6 3 4
38
2
14
12
16
17
9
33a, 34a, 35a, 36a
33b, 34b, 35b, 36b
24a
24b
Loctite 243
C
50Nm
B
25Nm
A
