138 |
Puma 20/40
138 |
5.3.19
Mounting the direct access, all Puma-versions
Preparation
Note!
Switch off the wheelchair via remote control.
Instructions
Note!
Suitable work area required!

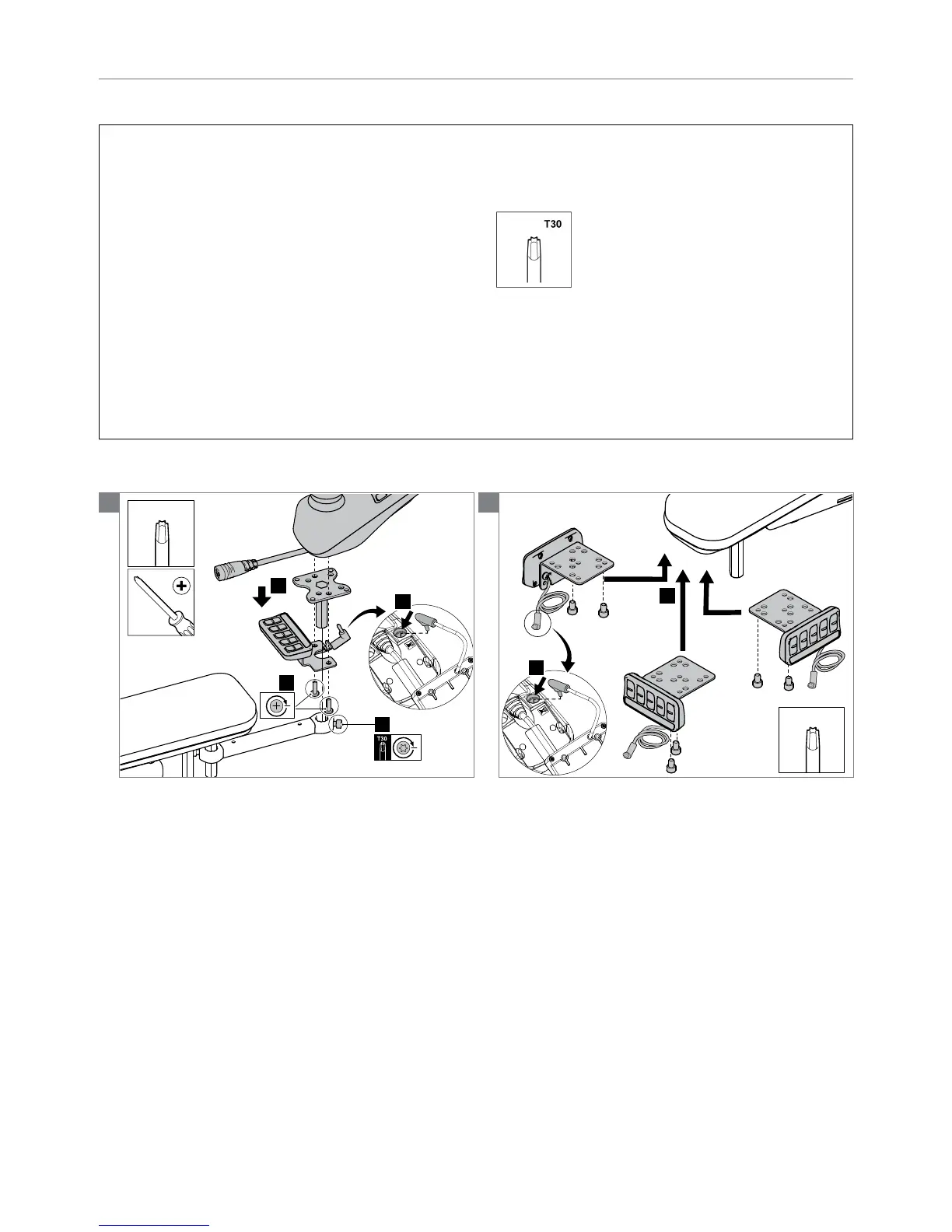

Follow the illustrated instructions.
1.
Joystick side
2.
Not joystick side
Relevant article numbers
1016968 R-net direct access keypad joystick side, set
1016969
R-net direct access keypad not joystick side, set
T
ools used
1
T30
1
3
2
4
2
T30
1
2
137
139
