| 141Puma 20/40 | 141

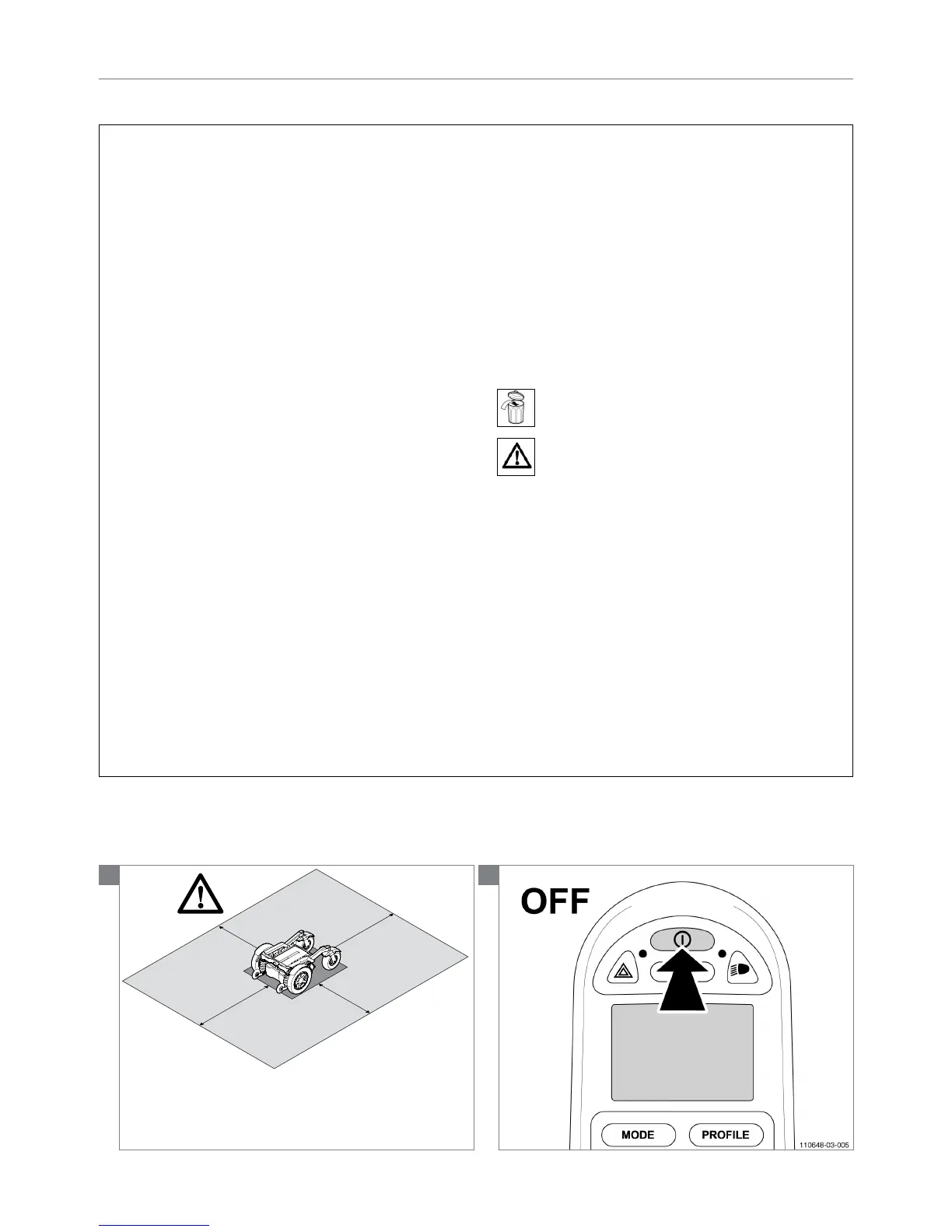

5.3.22 Replacing the batteries, all Puma-versions
Preparation
• Switch off the wheelchair via the remote control.
• Remove the fuses from the battery compartment before
carrying out any work on the electrical system.
Instructions
• Remove the leg rests and the chair.
• Remove the battery access cover, the battery-guard and
the battery strap rear.
• Remove the power module cover and disconnect all
connections from the power module.
• Release the battery strap from the battery-guard and
slide the battery-guard out of the battery box.
• Release the battery tray by tilting the battery-guard.
• Release the battery strap top and remove the batteries
from the battery tray.
• Disconnect all connections from the batteries.
• Replace the new batteries in reverse order.
Notice
• Contact your supplier, who will advise about disposing
the batteries as required.
• Avoid damage to the batteries when replacing them; this
may cause the batteries to leak.
Relevant article numbers
9002592 M8x12 CKS BZK PRECOTE 85
00000.2003 Locking ring, at M8
9002758 Battery 38 Ah (C20) Gel
6000589 Battery 50 Ah (C20) AGM
9002759 Battery 60 Ah (C20) Gel
9002760 Battery 78 Ah (C20) Gel
9005956 Battery spacer set universal
9005957 Battery spacer set MK (40/50A)
9005958 Battery spacer set MK (60/74A)
9005959 Battery spacer set Sonnenschein
Tools used
Torque wrench, socket, 10 mm
Icons
Parts need to be replaced. Dispose of waste parts
in accordance with local regulations.
Note! Be aware of the issue!
1
min.
100 cm
min.
100 cm
min.
75 cm
min.
75 cm
