Quickie puma 20 Technical Manual

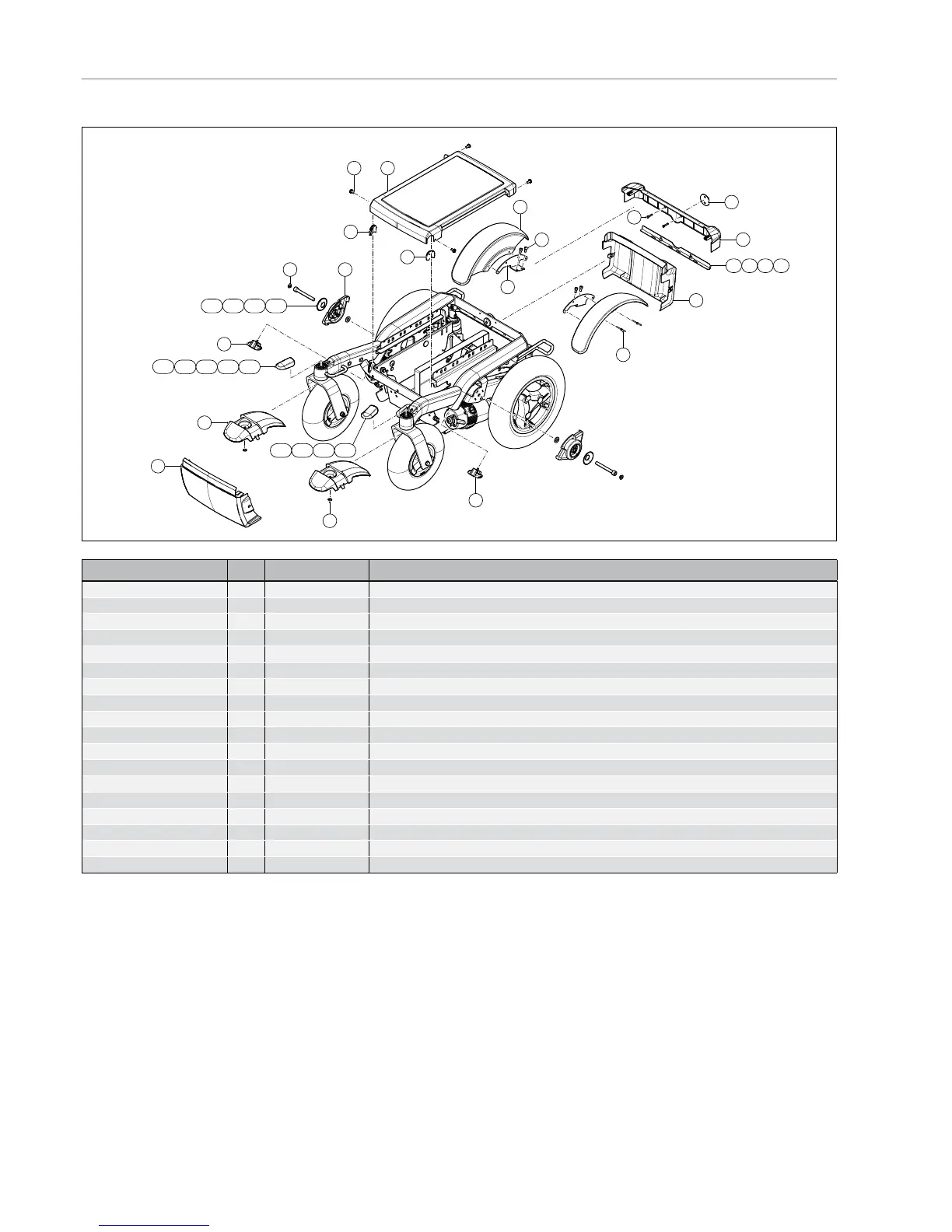

Puma 20/4030 | Spare parts
Pos Qty Article number Description
Pos Qty Article number Description
1-4 1 9005971 Battery cover black
3-4 1 9005972 Battery cover clips set
5 1 9005970 Logo Quickie
6,7 1 9011602 Suspension Bridge Cover black, version > October 2016
8a,16a,18a,19a 1 9009748 Deco covers green
8b,16b,18b,19b 1 9009749 Deco covers blue
8c,16c,18c,19c 1 9009750 Deco covers orange
8d,16d,18d,19d 1 9009751 Deco covers silver
9 1 9009305 Battery access cover
10,13 2 9011606 Drive wheel fender black with bracket set, version > October 2016
11,12 1 9011607 Drive wheel fender bracket set, version > October 2016
14 2 1007448 PVC black cover M10 DIN 912
15 1 9011608 Motor Arm Covers black set, version > October 2016
17,20 1 9011605 Tube bottom cover set, version > October 2016
18e 1 9011604 Ballhead covers black set
21-22 2 9005976 Castor wheel fender black
23 1 9004515 Power module cover
- 1 1017871 Deco cover set (accessoire kit)
13 Covers Puma 40 / 3-spoke wheels > October 2016
SM_P40RWD_EV-05_3spaak_2016
2
9
5
6
7
10
14
1
22
20
13
12
17
3
4
21
23
11
16a 16b 16c 16d
8a 8b 8c 8d
18b 18c 18d 18e
19a 19b 19c 19d
15
18a
