| 133Puma 20/40 | 133
5.3.17 Replacing the tyre and/or tube of the castor wheel, all Puma-versions
Preparation
• Switch off the wheelchair via the remote control.
• Use a lifting device to raise the drive and castor wheels
clear of the ground.
Instructions
• Deate the tyre (not necessary for replacing the complete
castor wheel!).
• Loosen the shaft and locking nut. (See instruction:
Replacing the castor wheel)
• Hold the wheel tight and remove the shaft.
• Take the castor wheel out of the fork.
• Loosen all Allen bolts and remove the front of the rim half.
• Remove the tyre and the tube, replace a new tube and/
or tyre.
• Replace the tyre and tube on the rim half.
• Mount the front of the rim half and remount the wheel.
• Inate the tube to the correct pressure. (See: ‘Technical
specications’)
Relevant article numbers
Puma 20
1015297 Inner tube 200x50 (8")
1015298 Outer tyre 200x50 (8") grey line prole
Puma 20/40
1015116 Inner tube 2.80/2.50x4 (9")
1015107 Outer tyre 2.80/2.50x4 (9") grey line prole
1015115 Inner tube 3.00x4 (10")
1015105 Outer tyre 3.00x4 (10") grey block prole
Puma 40
1015106 Outer tyre 3.00x4 (10") black highway prole
Tools used
• Lifting device
• Open-ended or ring spanners, 13 mm
• Torque wrench, socket, 13 mm
• Allen key, 5 mm

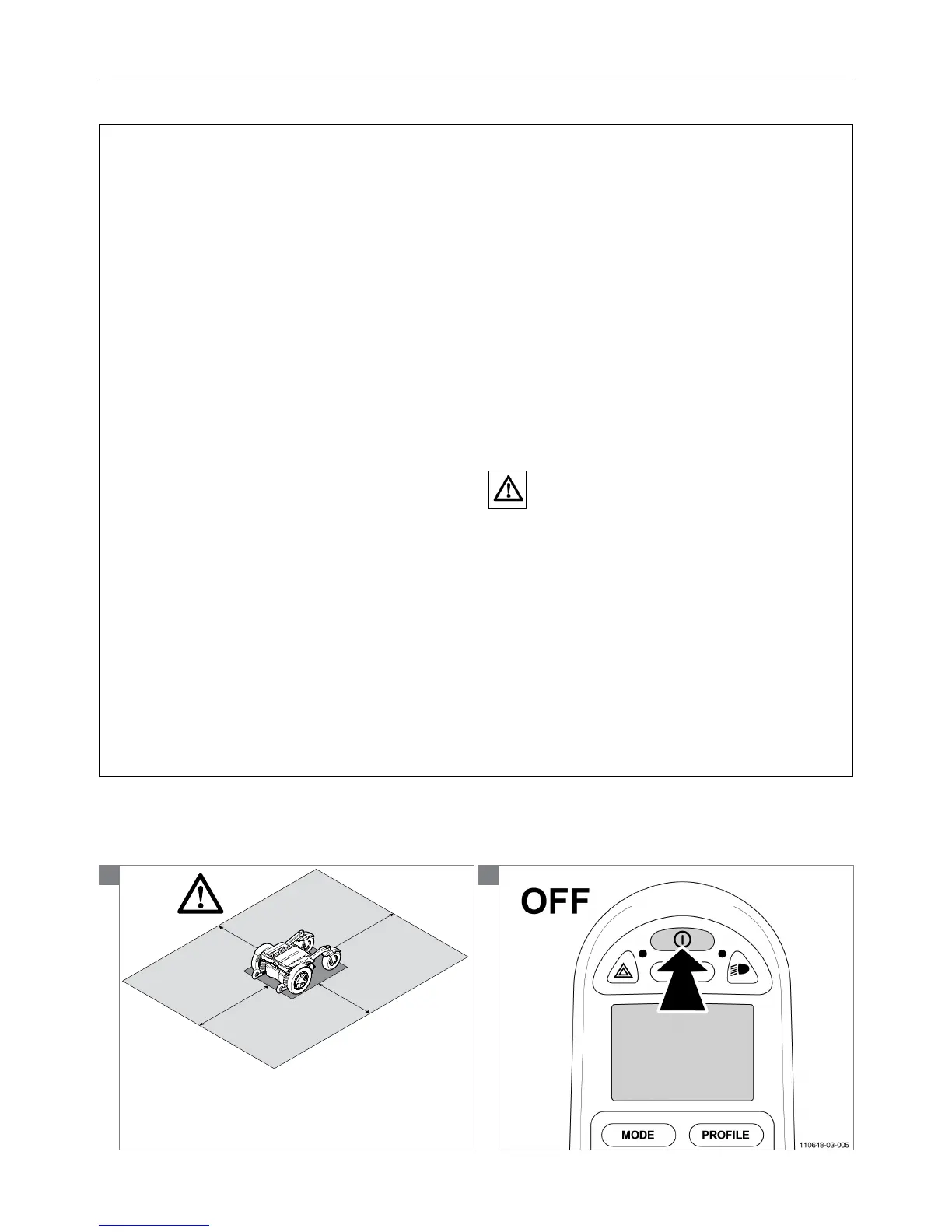

Icons
Note! Be aware of the issue!
1
min.
100 cm
min.
100 cm
min.
75 cm
min.
75 cm
110648-03-001
Note! Suitable work area required!
2
