Quickie puma 20 Technical Manual

| 151Puma 20/40 | 151

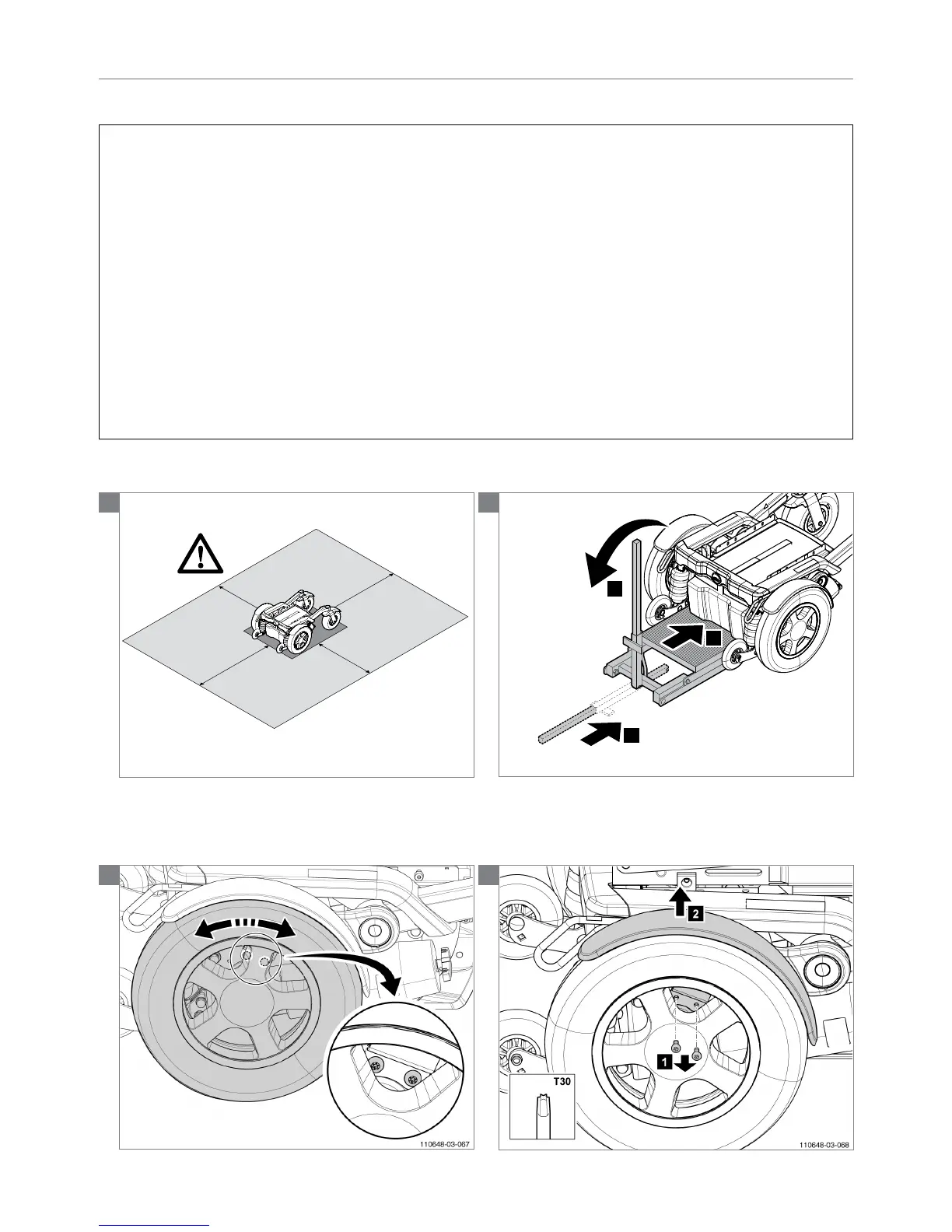

5.3.26 Replacing the mudguards, Puma 20/40 < November 2016
Preparation
• Switch off the wheelchair via the remote control.
• Use a lifting device to raise the drive wheels clear of the
ground.
Instructions
• Turn the drive wheel in the correct position.
• Loosen (through the rim) the 2 bolts of the mudguard
brackets on the motor arm.
• Remove the mudguards with brackets.
• Tighten the new mudguard with brackets on the motor
arm.
Relevant article numbers
0001.1110 Rivets alu 3,2 x 10
9006008 Drive wheel mounting set, Puma 40, version <
November 2016
9005978 Drive wheel fender with bracket
Tools used
• Lifting device
• Torx key T30
1
min.
100 cm
min.
100 cm
min.
75 cm
min.
75 cm
110648-03-001
Note! Suitable work area required!
2
3
1
2
110648-03-035
3 4
