| 165Puma 20/40 | 165
5.3.32 Adjusting the electrical seat tilt 0 - 25°, all Puma-versions
Preparation

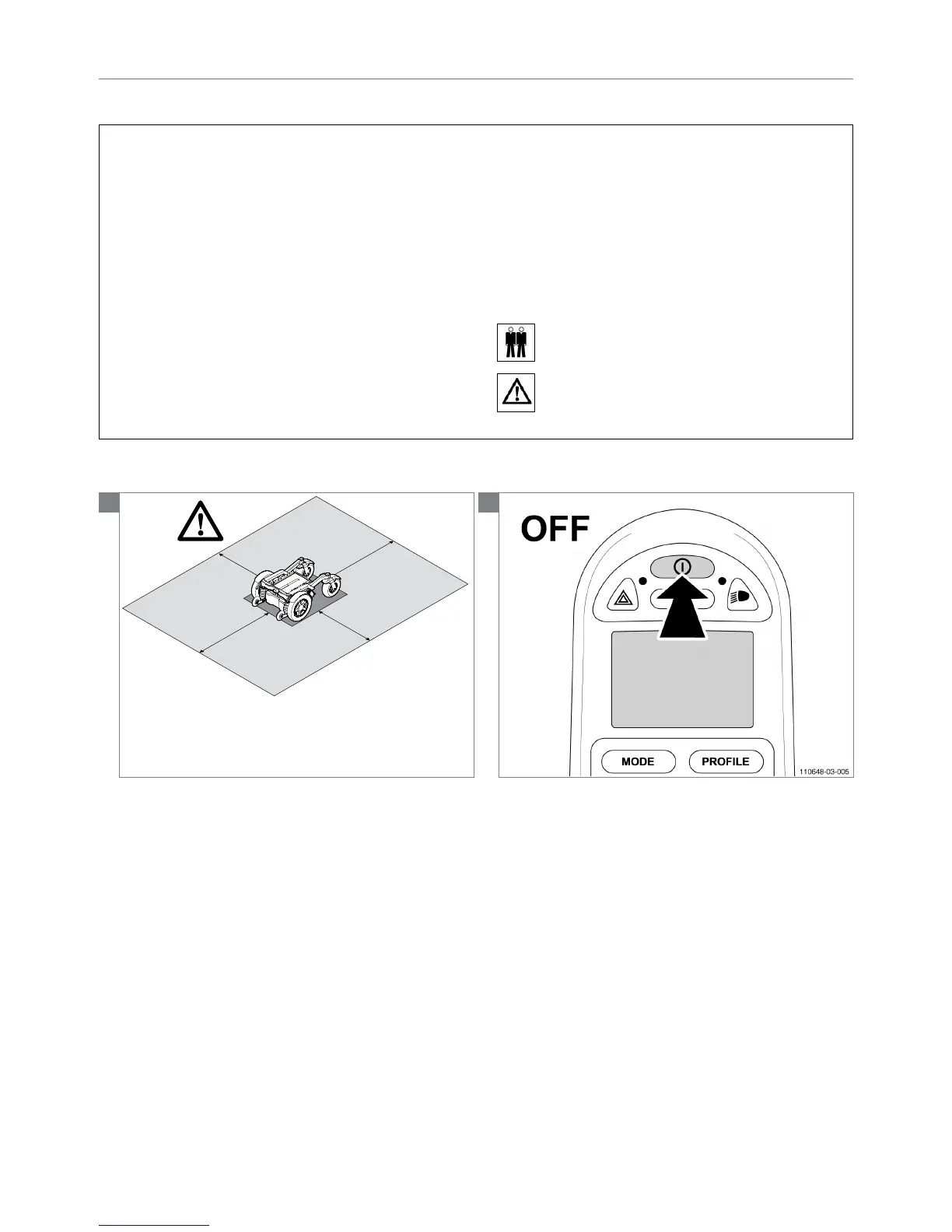

Switch off the wheelchair via the remote control.
Instructions
• Remove the entire seating unit from the carrier. Two
people are needed to carry out this operation.
(See instruction: Converting front wheel drive (FWD) to
rear wheel drive (RWD), Step 2 Remove interface and
seating.)
• Loosen the 2 bolts of hinge 1 or hinge 2 in the interface
frame.
• Move the upper part of the interface in the desired
position (hinge point 1 (hp1): 0 - 25°, hinge point 2 (hp2):
0 - 20°).
• Tighten the 2 bolts.
• Replace the seat on the interface.
Notice
Changing back the wheelchair's tilt position from 20° to
25° may negatively inuence the wheelchair's driving
characteristics.
Relevant article numbers
9006017 Electrical tilt 25°
Tools used
Open ended or ring spanner 10 mm
lAlen key 5 mm
Icons
Action must be carried out by two persons!
Note! Be aware of the issue!
1
min.
100 cm
min.
100 cm
min.
75 cm
min.
75 cm
