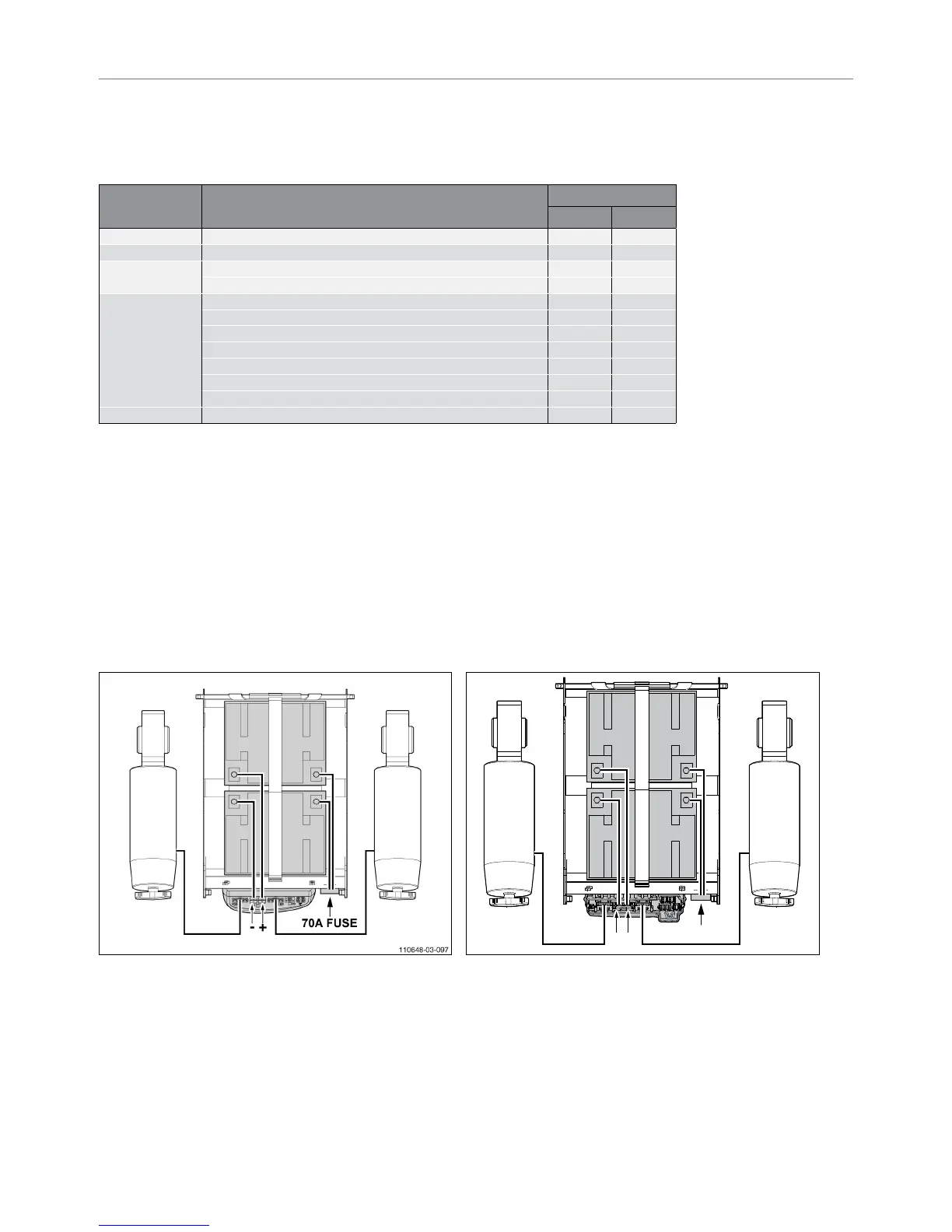

5 Service instructions
5.1 Maintenance plan
Below, we have indicated what needs to be checked, how often this should be done and by whom.
Time Description
To be carried out by
User Supplier
Daily • Charging the batteries, after each use. x -
Weekly • Checking the tyre pressures. x -
Monthly
• Cleaning the wheelchair. x -
• Cleaning the upholstery (if necessary). x -
Annually
• Inspecting the electrical system. - x
• Checking the batteries. - x
• Inspecting the drive. - x
• Inspecting the mechanical parts. - x
• Inspecting the bearings. - x
• Inspecting the suspension. - x
• Checking the tyres. - x
• Checking all fastenings and bolts: tighten if necessary - x
This document is a reference book to be used to order parts for the wheelchair model shown on the front cover.
Batteries
For maintenance, see the following documentation:
• Battery instructions.
• Battery charger user manual.
The wheelchair uses dry gel batteries. These dry batteries (dry t) are sealed and are maintenance free.
The battery wiring diagram is located on a sticker inside the battery tray.
Shark Diagrams / R-net Diagram / DX2 Diagram / VR-2 Diagram
Shark R-net
M2
M1
OBC
A1
INH-1
1x100A FUSE
-
+
To Next Page
