1-9 2 9005963 Anti tip complete FWD
1,3,4,6 2 9002896 Anti tip wheel FWD
10-18 2 9005962 Anti tip complete RWD
10,12,13,15 2 9002897 Anti tip wheel RWD
19-21,23 1 9005964 Rubber suspension set Puma 20 version < November 2016
24a,25-29 1 9005939 Motor bracket, RWD right/FWD left
24b,25-29 1 9005938 Motor bracket, RWD left/FWD right
28-32,33,37,38 1 9007478 Motor set, 6 km/h DX and Shark, Puma 20
28-32,33a,37,38 1 9007479
Motor RWD right/FWD left, 6 km/h DX and Shark, Puma 20, see paragraph
5.2.1.
28-32,33b,37,38 1 9007480
Motor RWD left/FWD right, 6 km/h DX and Shark, Puma 20, see paragraph
5.2.1.
28-32,34,37,38 1 9007481 Motor set, 6 km/h PG (R-net and VR2), Puma 20
28-32,34a,37,38 1 9007482
Motor RWD right/FWD left, 6 km/h PG (R-net and VR2), Puma 20, see
paragraph 5.2.1.
28-32,34b,37,38 1 9007483
Motor RWD left/FWD right, 6 km/h PG (R-net and VR2), Puma 20, see
paragraph 5.2.1.
28-32,35,37,38 1 9007484 Motor set, 10 km/h DX and Shark, Puma 20
28-32,35a,37,38 1 9007485
Motor RWD right/ FWD left, 10 km/h DX and Shark, Puma 20, see paragraph
5.2.1.
28-32,35b,37,38 1 9007486
Motor RWD left/FWD right, 10 km/h DX and Shark, Puma 20, see paragraph
5.2.1.
28-32,36,37,38 1 9007487 Motor set, 10 km/h PG (R-net and VR2), Puma 20
28-32,36a,37,38 1 9007488
Motor RWD right/FWD left, 10 km/h PG (R-net and VR2), Puma 20, see
paragraph 5.2.1.
28-32,36b,37,38 1 9007489
Motor RWD left/FWD right, 10 km/h PG (R-net and VR2), Puma 20, see
paragraph 5.2.1.
30-31 2 1015807 Freewheel lever, Puma 20, Puma 40 version < November 2016
32 2 9002784 Brake Release Sticker
37 1 9006360 Motor Brushes 4pc service
38 2 9006452 Puma 20 Motor Brake Cover service

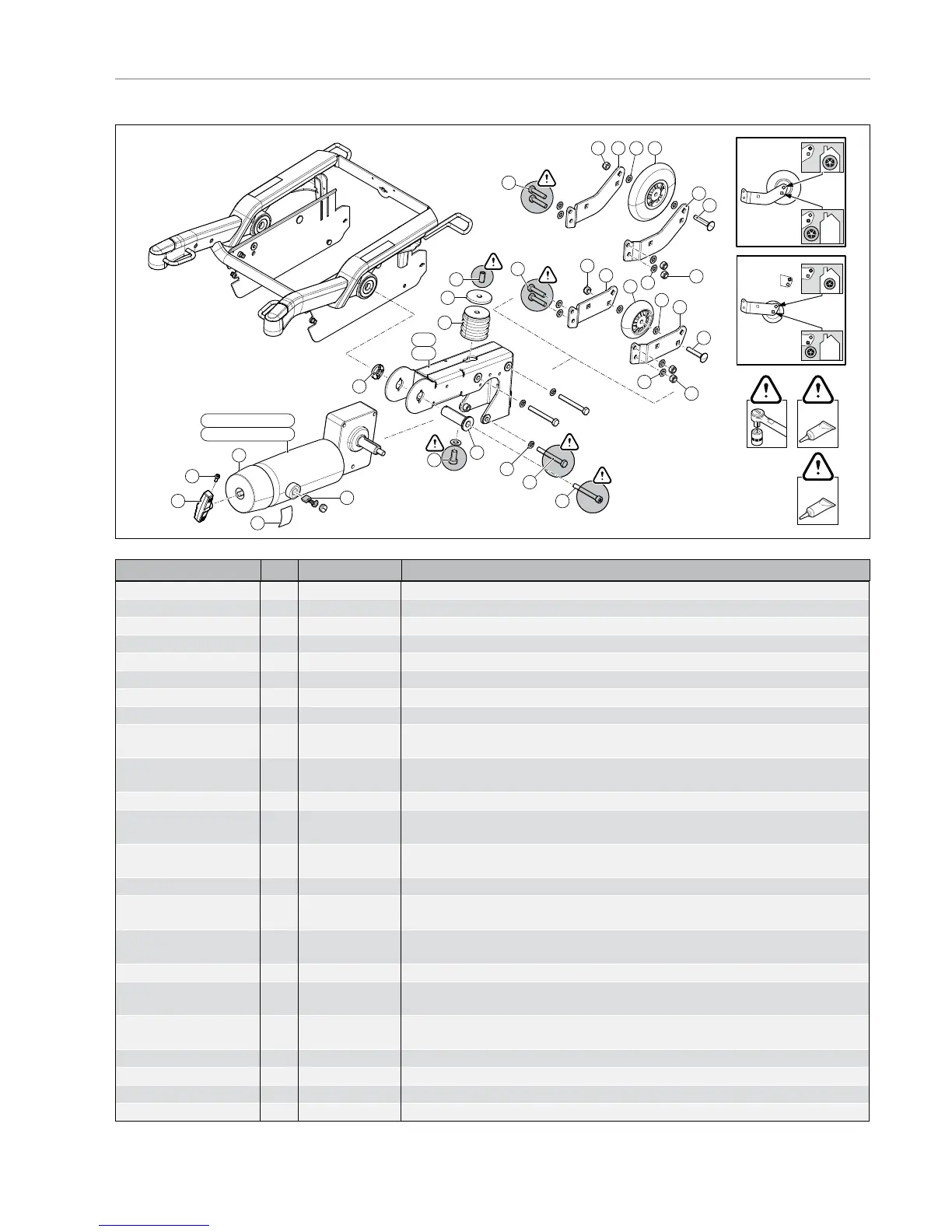

7 Suspension arm and motors Puma 20 < November 2016
SM_P20_RWD_03
A
A
A
A
Loctite 243
B
Loctite 270
C
25Nm
A
B
A
A
RWD
FWD
32
37
13
26
30
19
21
20
29
25
28
27
23
31
11
1
5
10
15
8
7
18
6 3 4
38
2
14
12
16
17
9
33a, 34a, 35a, 36a
33b, 34b, 35b, 36b
24a
24b
C
