Quickie puma 20 Technical Manual

Puma 20/4022 | Spare parts
Pos Qty Article number Description
1-3,4a,5,6 2 9005934 Anti shimmy + bearings, set
1-3,4b,5,6 2 9008818 Anti shimmy XT + bearings, set (12,5 km/h)
7-10 2 9005932 Castor fork (9" and 10")
8-11 2 1016998 Castor wheel indoor 2.80/2.50x4, air (9")
8-11 1 1017438 Castor wheel indoor 2.80/2.50x4, grey air (9"), set
8-10,12 2 1016999 Castor wheel indoor 2.80/2.50x4, punctureproof (9")
8-10,12 1 1017439 Castor wheel indoor 2.80/2.50x4, grey punctureproof (9"), set
8-10,13a 1 1017000 Castor wheel outdoor 3.00-4, right grey air (10")
8-10,13b 1 1017001 Castor wheel outdoor 3.00-4,left grey air (10")
8-10,13a,13b 1 1017436 Castor wheel outdoor 3.00-4, grey air (10"), set
8-10,14a 1 1017002 Castor wheel outdoor 3.00-4, right grey punctureproof (10")
8-10,14b 1 1017003 Castor wheel outdoor 3.00-4, left grey punctureproof (10")
8-10,14a,14b 1 1017437 Castor wheel outdoor 3.00-4, grey punctureproof (10"), set
8-10,15a 1 1017004 Castor wheel outdoor 3.00-4, right black air (10")
8-10,15b 1 1017005 Castor wheel outdoor 3.00-4, left black air (10")
8-10,15a,15b 1 1017444 Castor wheel outdoor 3.00-4, black air (10"), set
8-10,16a 1 1017006 Castor wheel outdoor 3.00-4, right black punctureproof (10")
8-10,16b 1 1017007 Castor wheel outdoor 3.00-4, left black punctureproof (10")
8-10,16a,16b 1 1017445 Castor wheel outdoor 3.00-4, black punctureproof (10"), set
20-21, 29 2 9011588 Drive wheel mounting set, Puma 40 / 5-spoke wheels, version > October 2016
22, 31 2 9011634 Drive wheel indoor 12 1/2 x 2 1/4 (12,5"), air, excl hub
23, 31 2 9011635 Drive wheel indoor 12 1/2 x 2 1/4 (12,5"), punctureproof, excl hub
24, 31 2 9011636 Drive wheel outdoor 3.00-8, grey air (14"), excl hub
25, 31 2 9011637 Drive wheel outdoor 3.00-8, grey punctureproof (14"), excl hub
26, 31 2 9011638 Drive wheel outdoor 3.00-8, grey air (14"), All Weather, excl hub
27, 31 2 9011639 Drive wheel outdoor 3.00-8 , black air (14"), excl hub
28, 31 2 9011640 Drive wheel outdoor 3.00-8 , black punctureproof (14"), excl hub
29 2 9007193 Wheelcover grey
30a 2 9011632 P40 hub outdoor Service, version > October 2016
30b 2 9011633 P40 hub indoor Service, version > October 2016
31 2 9011644 Nuts&Bolts Drive Wheel 5-Spoke
17-21,28,29-31 2 9011589 Drive wheel indoor 12 1/2 x 2 1/4 (12,5"), air, version > October 2016
17-21,28,29-31 1 9011590 Wheel Set indoor 12 1/2 x 2 1/4 (12,5") Air, version > October 2016
17-21,28,29-31 2 9011591 Drive wheel indoor 12 1/2 x 2 1/4 (12,5") PU, version > October 2016
17-21,28,29-31 1 9011592 Wheel Set indoor 12 1/2 x 2 1/4 (12,5") PU, version > October 2016
17-21,28,29-31 2 9011593 Drive wheel outdoor 3.00-8, grey air (14"), version > October 2016
17-21,28,29-31 1 9011594 Wheel Set outdoor 3.00-8, grey air (14"), version > October 2016
Pos Qty Article number Description

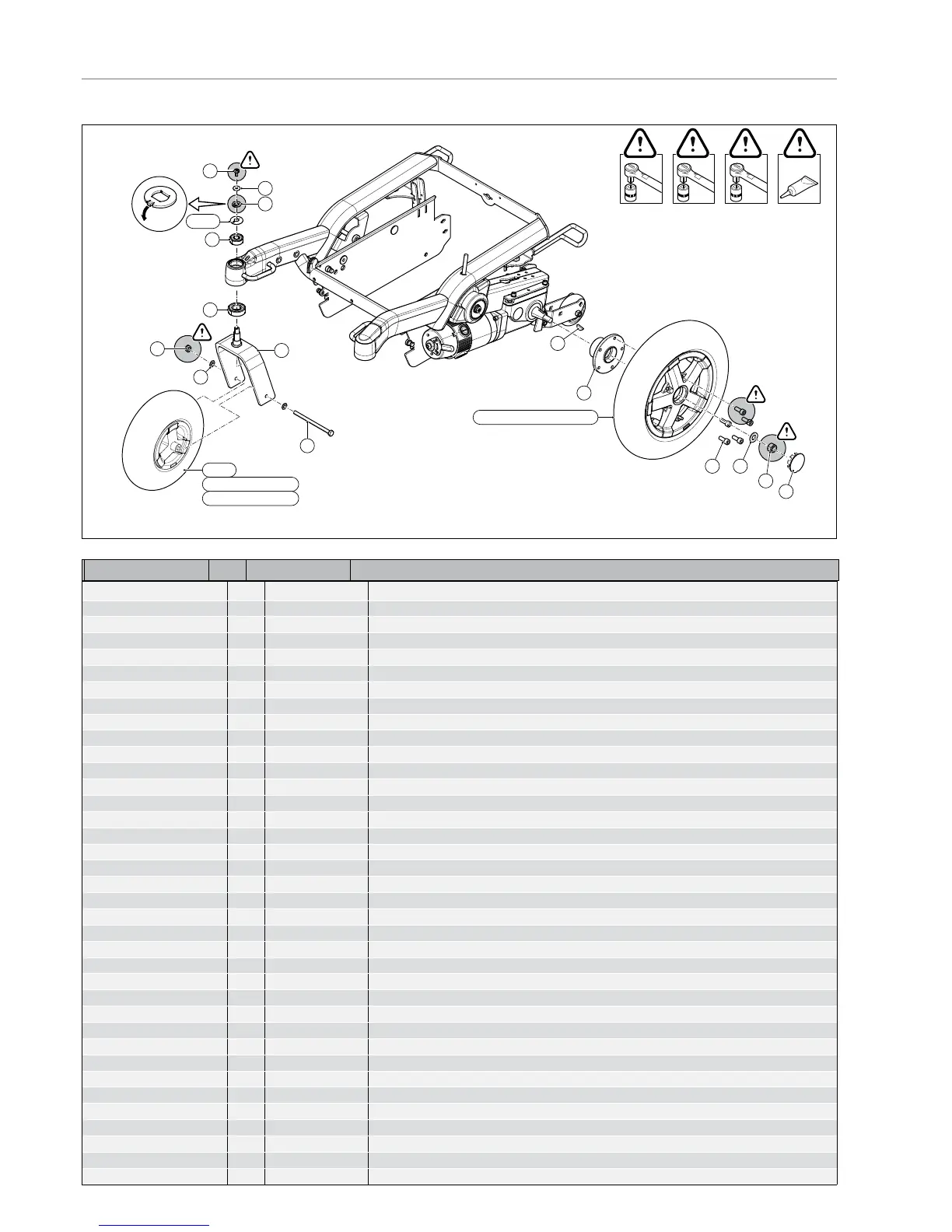

8 Castor forks and wheels Puma 40 / 5-spoke wheels > October 2016
SM_P40RWD_EV-04a_HC_5spaak_2016
A
C
Loctite 243
D
75Nm
C
25Nm
A
7Nm
B
B,D
A
17
10
2031
30
21
1
5
8
6
9
3
7
2
22, 23, 24, 25, 26, 27, 28
11, 12
4a, 4b
29
13a, 14a, 15a, 16a
13b, 14b, 15b, 16b
