Quickie puma 20 Technical Manual

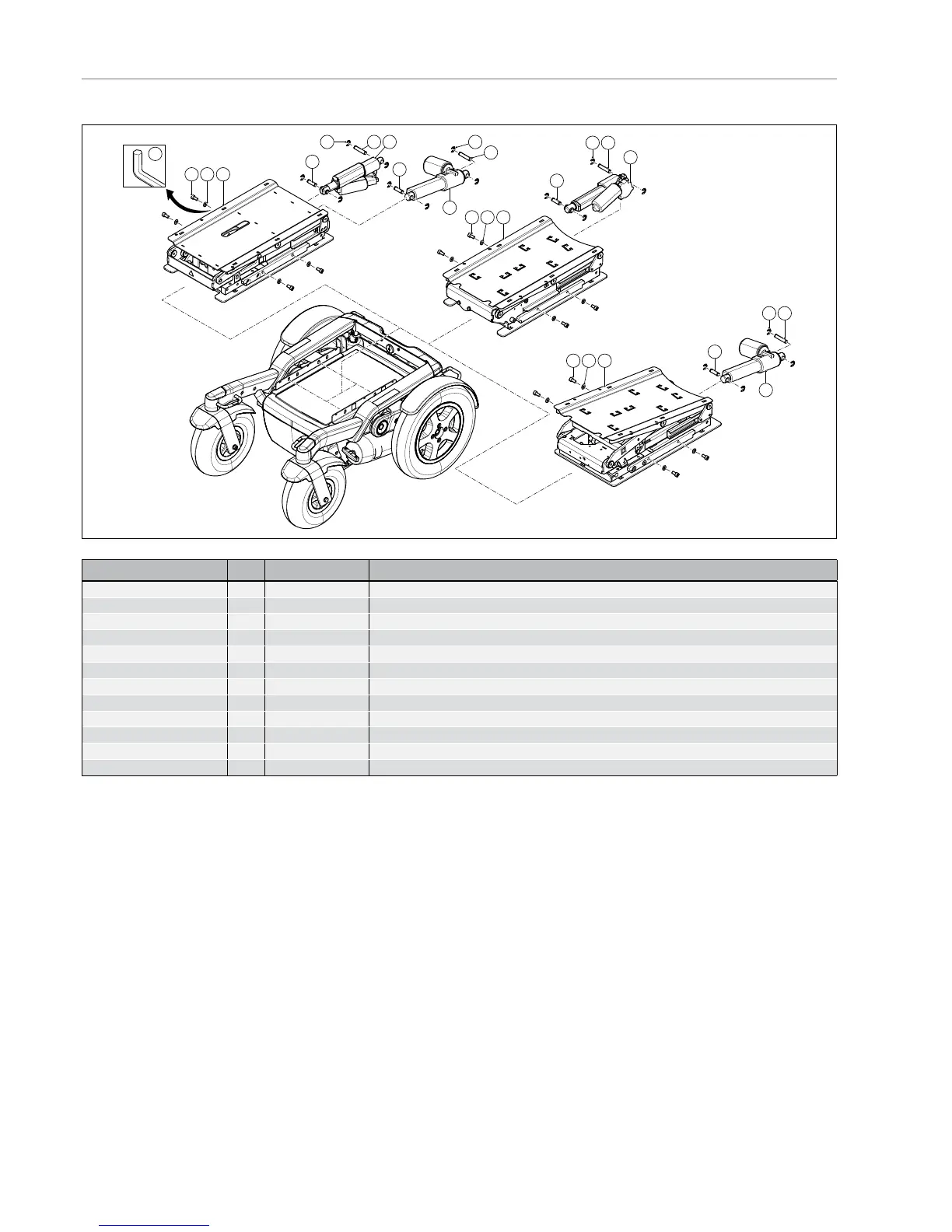

Puma 20/4034 | Spare parts
Pos Qty Article number Description
1-2,4-7,12-14 1 9006019 Electrical lift with xed tilt
1-2,8-11,15-17 1 9006021 Electrical tilt 45º
1-11 1 9006020 Electrical lift with electrical tilt 45º
4-6 1 9006025 Til actuator mounting set
4-7 1 9006023 Tilt actuator < mid October 2012 (1 micro switch)
4-7 1 1017466 Tilt actuator > mid October 2012 (2 micro switches)
8-10 1 9006024 Lift actuator mounting set
8-11 1 9006022 Lift actuator
18 1 9007749 Square Allan key 6 mm
- 1 9007683 Down limit switch
- 1 9007684 Inhibit switch for electrical lift
- 1 9009963 Inhibit switch for electrical tilt
Pos Qty Article number Description
17 Tilt and lift modules Puma 40 (all versions)
1
4
2 3
12 13 14
15 16 17
5 6 7
10
4
10
5 6
7
8 9
11
8
9
11
18
