Quickie puma 20 Technical Manual

Puma 20/40
Spare parts | 27
Pos Qty Article number Description
1-6 2 9005934 Anti shimmy + bearings, set
7a,8,9,10a 2 9005932 Castor fork (9" and 10")
7b,8,9,10b 2 9007752 Castor fork 60 mm (8")
8,9,10b,11,12a 2 1016987 Castor wheel indoor 200x50, grey air (8")
8,9,10b,11,12a 1 1017434 Castor wheel indoor 200x50, grey air (8"), set
8,9,10b,11,12a 2 1016988 Castor wheel indoor 200x50, grey punctureproof (8")
8,9,10b,11,12a 1 1017435 Castor wheel indoor 200x50, grey punctureproof (8"), set
8-11,12a 2 1016998 Castor wheel indoor 2.80/2.50x4, air (9")
8-11,12a 1 1017438 Castor wheel indoor 2.80/2.50x4, grey air (9"), set
8-11,12b 2 1016999 Castor wheel indoor 2.80/2.50x4, punctureproof (9")
8-11,12b 1 1017439 Castor wheel indoor 2.80/2.50x4, grey punctureproof (9"), set
8-11,12c 1 1017000 Castor wheel outdoor 3.00-4, right grey air (10")
8-11,12d 1 1017001 Castor wheel outdoor 3.00-4,left grey air (10")
8-11,12c,12d 1 1017436 Castor wheel outdoor 3.00-4, grey air (10"), set
8-11,12e 1 1017002 Castor wheel outdoor 3.00-4, right grey punctureproof (10")
8-11,12f 1 1017003 Castor wheel outdoor 3.00-4, left grey punctureproof (10")
8-11,12e,12f 1 1017437 Castor wheel outdoor 3.00-4, grey punctureproof (10"), set
16, 19 2 9011634 Drive wheel indoor 12 1/2 x 2 1/4 (12,5"), air, excl hub
16, 19 2 9011635 Drive wheel indoor 12 1/2 x 2 1/4 (12,5"), punctureproof, excl hub
16, 19 2 9011636 Drive wheel outdoor 3.00-8, grey air (14"), excl hub
16, 19 2 9011637 Drive wheel outdoor 3.00-8, grey punctureproof (14"), excl hub
16, 19 2 9011638 Drive wheel outdoor 3.00-8, grey air (14"), All Weather, excl hub
16, 19 2 9011639 Drive wheel outdoor 3.00-8 , black air (14"), excl hub
16, 19 2 9011640 Drive wheel outdoor 3.00-8 , black punctureproof (14"), excl hub
18a 2 9011642 Hub indoor CT Service, Puma 20
18b 2 9011643 Hub outdoor CT Service, Puma 20
19 2 9011644 Nuts&Bolts Drive Wheel 5-Spoke
13-15, 17 2 9006792 Drive Wheel mounting set, Puma 20
13-19 2 1017314 Drive wheel indoor 12 1/2 x 2 1/4, grey air (12,5"), Puma 20
13-15,16a,17 1 1017958 Drive wheel indoor 12 1/2 x 2 1/4, grey air (12,5"), Puma 20, set
13-15,16b,17 2 1017315 Drive wheel indoor 12 1/2 x 2 1/4, grey punctureproof (12,5"), Puma 20
13-15,16b,17 1 1017959 Drive wheel indoor 12 1/2 x 2 1/4, grey punctureproof (12,5"), Puma 20, set
13-15,16c,17 2 1017312 Drive wheel outdoor 3.00-8, grey air (14"), Puma 20
13-15,16c,17 1 1017956 Drive wheel outdoor 3.00-8, grey air (14"), Puma 20, set
13-15,16d,17 2 1017313 Drive wheel outdoor 3.00-8, grey punctureproof (14"), Puma 20
13-15,16d,17 1 1017957 Drive wheel outdoor 3.00-8, grey punctureproof (14"), Puma 20, set
17 2 9007193 Wheelcover grey
Pos Qty Article number Description

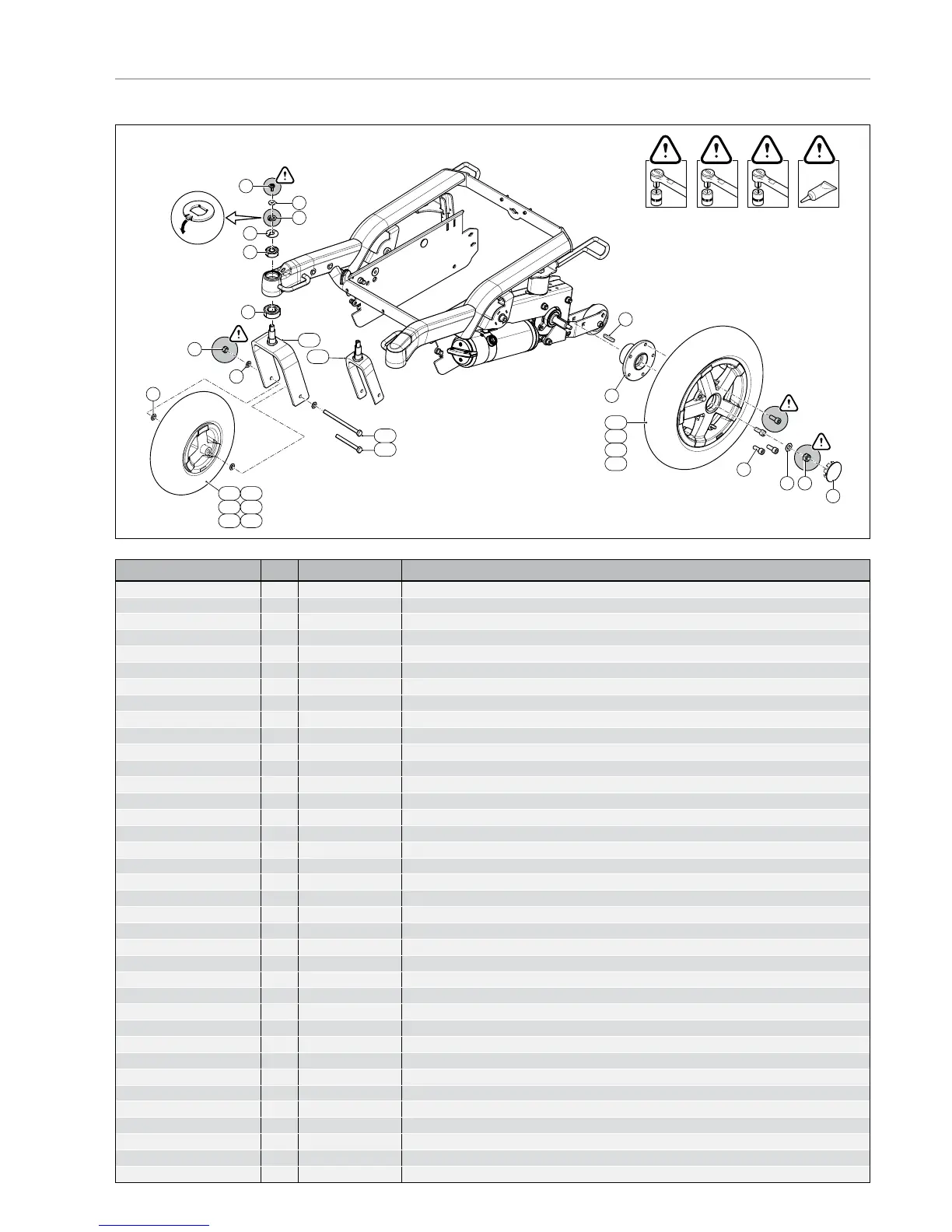

11 Castor forks and wheels Puma 20 (all versions)
SM_P20RWD_EV-04a_HC_2016
A,D
A
A
B,D
Loctite 243
D
50Nm
C
25Nm
A
7Nm
B
13
15
17
14
18
19
1
4
5
8
6
11
9
12d
12e
12f
16a
16b
16c
16d
3
2
7a
7b
10a
10b
12a
12b
12c
