Quickie puma 20 Technical Manual

Puma 20/4018 | Spare parts
Pos Qty Article number Description
1-12 1 9005965 Rubber suspension + bridge
8-12 1 9005966 Rubber suspension set Puma 40
13-21 2 9005963 Anti tip complete FWD
13,15,16,18 2 9002896 Anti tip wheel FWD
22-30 2 9005962 Anti tip complete RWD
22,24,25,27 2 9002897 Anti tip wheel RWD
31a,32-36 1 9006782 Motor bracket 4 pole, RWD right/FWD left, version < November 2016
31b,32-36 1 9006781 Motor bracket 4 pole, RWD right/FWD left, version < November 2016
35-39, 40a, 44a 1 9006783
Motor 4-pole RWD left/FWD right, 6 km/h DX and Shark, version < November
2016, Puma 40
35-39, 40b, 44a 1 9006784
Motor 4-pole RWD right/FWD left, 6 km/h DX and Shark, version < November
2016, Puma 40
35-39, 41a, 44a 1 9006785
Motor 4-pole RWD left/FWD right, 6 km/h PG (R-net and VR2), version <
November 2016, Puma 40
35-39, 41b, 44a 1 9006786
Motor 4-pole RWD right/FWD left, 6 km/h PG (R-net and VR2), version <
November 2016, Puma 40
35-39, 42a, 44a 1 9006787
Motor 4-pole RWD left/FWD right, 10 km/h DX and Shark, version < November
2016, Puma 40
35-39, 42b, 44a 1 9006788
Motor 4-pole RWD right/FWD left, 10 km/h DX and Shark, version < November
2016, Puma 40
35-39, 43a, 44a 1 9006789
Motor 4-pole RWD left/FWD right, 10 km/h PG (R-net and VR2), version <
November 2016, Puma 40
35-39, 43b, 44a 1 9006790
Motor 4-pole RWD right/FWD left, 10 km/h PG (R-net and VR2), version <
November 2016, Puma 40
35-39, 45a, 44b 1 9008626
Motor 4-pole RWD left/FWD right, 12,5 km/h DX and Shark, version <
November 2016, Puma 40
35-39, 45b, 44b 1 9008629
Motor 4-pole RWD right/FWD left, 12,5 km/h DX and Shark, version <
November 2016, Puma 40
35-39, 46a, 44b 1 9008630
Motor 4-pole RWD left/FWD right, 12,5 km/h PG (R-net and VR2), version <
November 2016, Puma 40
35-39, 46b, 44b 1 9008631
Motor 4-pole RWD right/FWD left, 12,5 km/h PG (R-net and VR2), version <
November 2016, Puma 40
37-38 2 1015807 Freewheel lever, Puma 20, Puma 40 version < November 2016

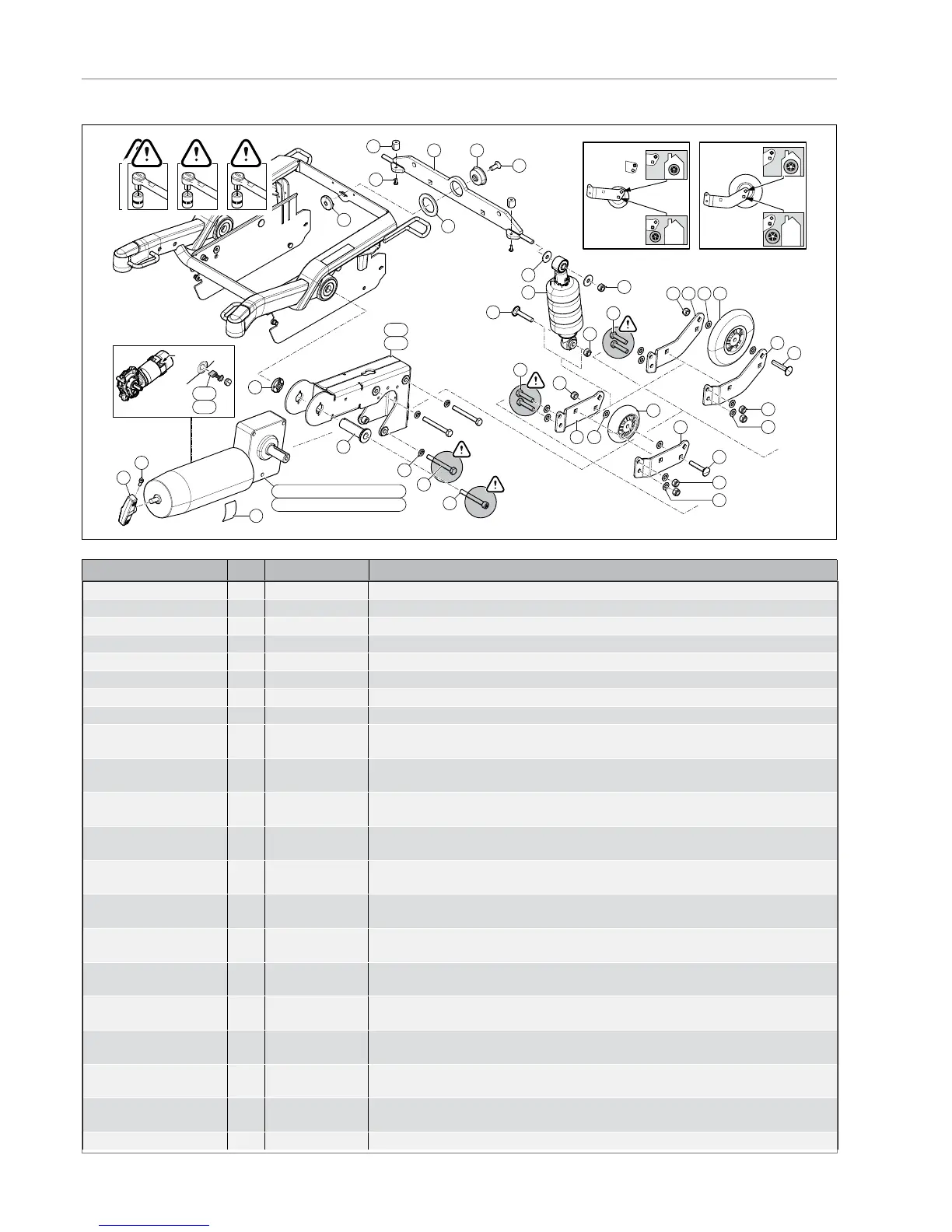

5 Suspension arm and motors Puma 40 < November 2016
25Nm
RWD
FWD
4x
4P HT
40a, 41a, 42a, 43a, 45a, 46a
40b, 41b, 42b, 43b, 45b, 46b
31a
31b
37
38
39
11
1
5
9
33
35
36
8
34
32
25
6
13
27
26
12
22
13
17
23 24
28
29
19
20
10
4
30
21
2 3
18 14 1615
44a
44b
25Nm
C
10Nm
A
50Nm
B
