| 149Puma 20/40 | 149

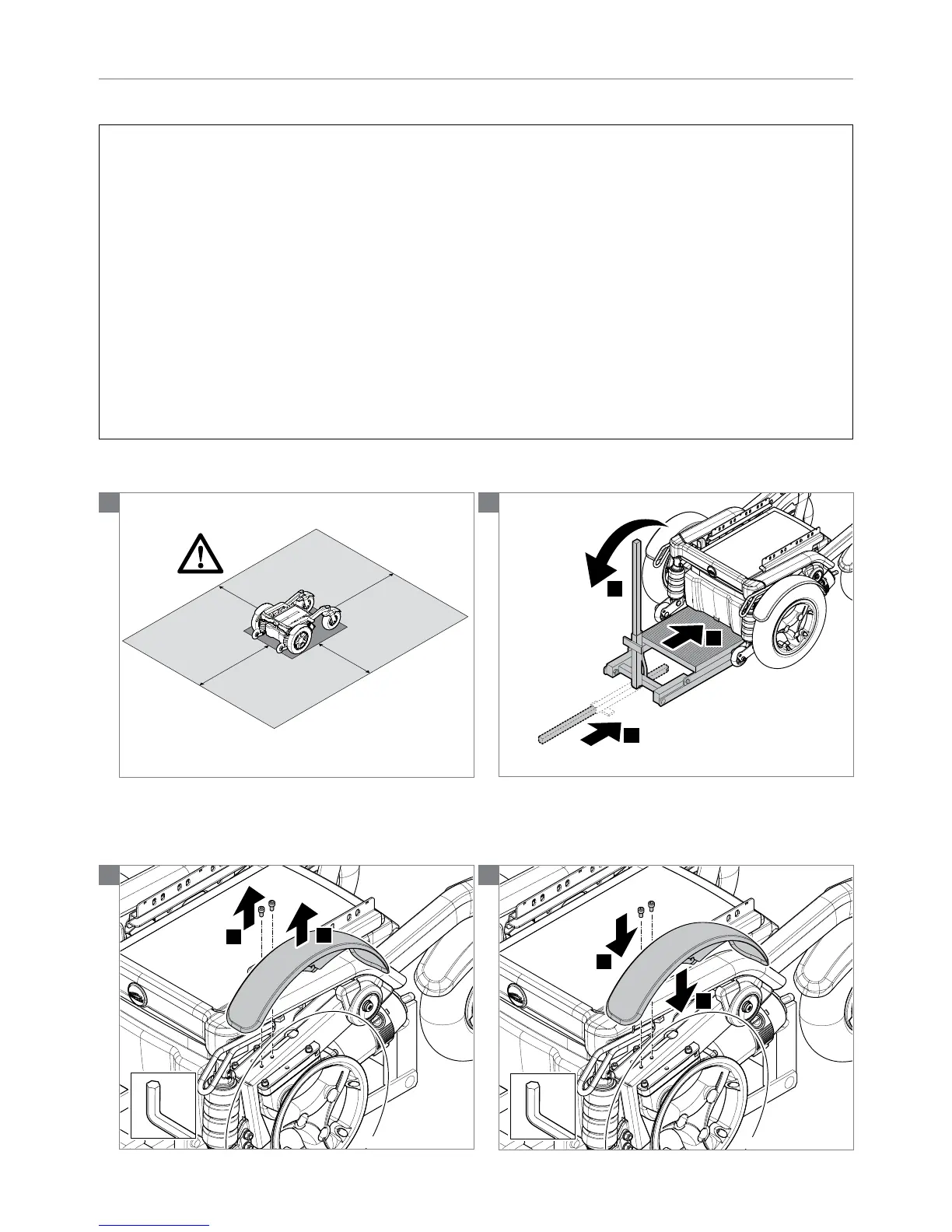

5.3.25 Replacing the mudguards, Puma 40 / 3-spoke wheels > October 2016
Preparation
• Switch off the wheelchair via the remote control.
• Use a lifting device to raise the drive wheels clear of the
ground.
Instructions
• Turn the drive wheel in the correct position.
• Loosen (through the rim) the 2 bolts of the mudguard
brackets on the motor arm.
• Remove the mudguards with brackets.
• Tighten the new mudguard with brackets on the motor
arm.
Relevant article numbers
9005978 Drive wheel fender black with bracket set,
version > October 2016
9005979 Drive wheel fender bracket set,
version > October 2016
Tools used
• Lifting device
• Hexagonal socket wrench, 5mm
1
min.
100 cm
min.
100 cm
min.
75 cm
min.
75 cm
110648-03-001
Note! Suitable work area required!
2
3
2
1
110648-03-035_3spaak_2016
3
1
2
5
110648-03-067_5spaak_2016
4
2
1
5
110648-03-069_3spaak_2016
