Quickie puma 20 Technical Manual

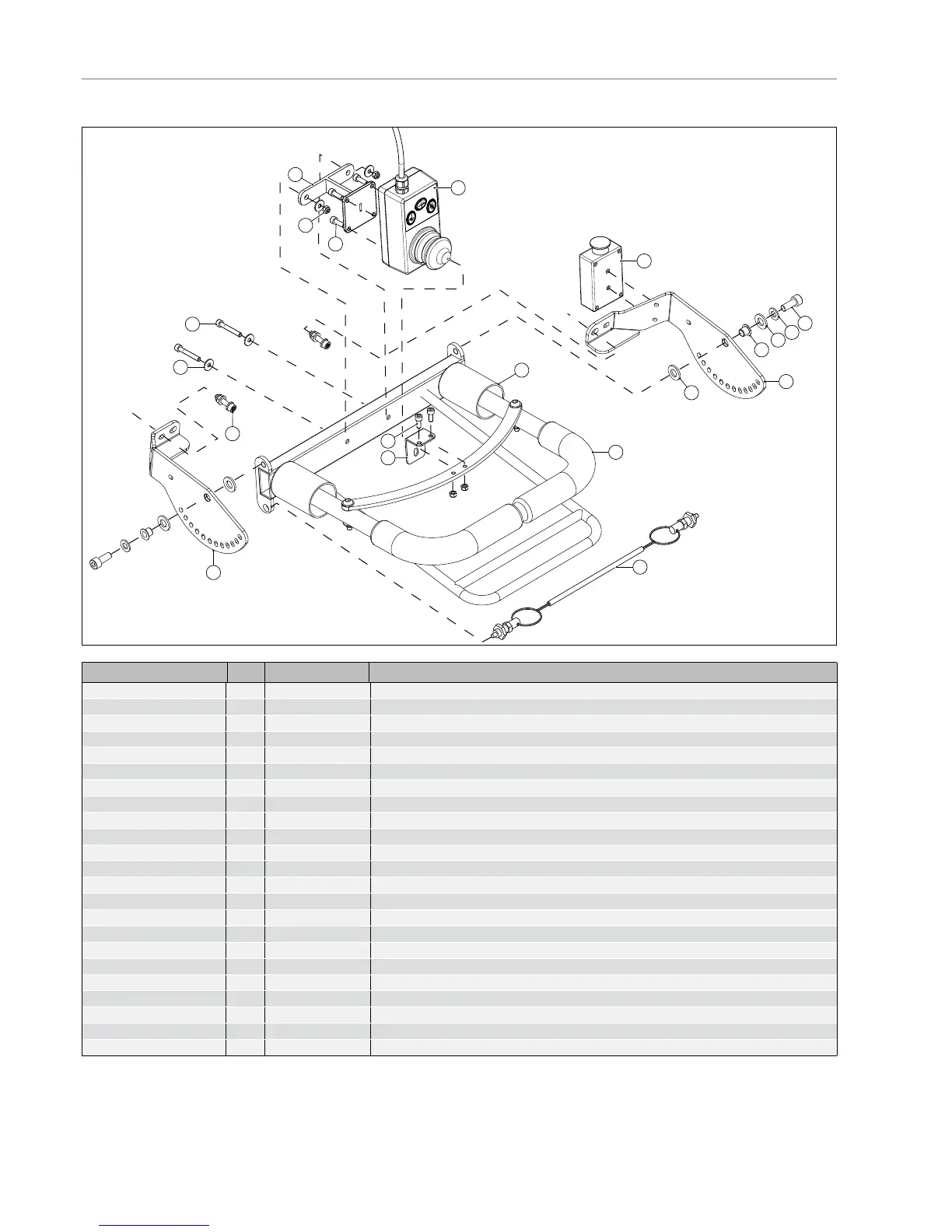

Puma 20/4038 | Spare parts
Pos Qty Article number Description
1,4 1 9006030 R-net attendant module service
1-8 1 1017223 R-net attendent module for Z-steering, Sedeo Pro+
1-18 1 1017034 R-net Z-steering incl. electronics and mounting set, Sedeo Pro+
2 4 - Washer D9021 M5
3 2 - Bolt D912 M5x35
4 4 - Screw cross M5x16 Din7985
5 4 - Nut D985 M5
6 1 - Joystick holder
7 2 - Bolt D912 M5x12
8 1 - Joystick plate
9 2 - Iglidur GFM 0810-10
9-15 1 1017224 Z-steering complete
10 1 1016909 Z-steering
11 2 1017226 Z-steering foam
12 4 - Washer nylon M10
13 2 - Washer D125 M8
14 2 - Bolt D912 M8x20
15 1 1017225 Z-steering index plunjer, set
16 1 9009765 Z-steering holder, right
16-17 1 9009618 Z-steering holder, set
17 1 9009914 Z-steering holder, left
18 2 1015335 Torx countersunk socket head screw M6x30 iso14579 (100 pieces)
19 1 1017227 Emergency stop button
21 Attendant Z-steering (only for the Norwegian market)
3
2
1
5
4
6
7
8
19
12
13
14
16
10
15
18
11
9
12
17

Quickie puma 20 Specifications

General

Brand	Quickie
Model	puma 20
Category	Wheelchair
Language	English
