Quickie puma 20 Technical Manual

| 155Puma 20/40 | 155
5.3.28 Replacing the anti-tip wheels and bracket, all Puma-versions
Preparation
Switch off the wheelchair via the remote control.
Instructions

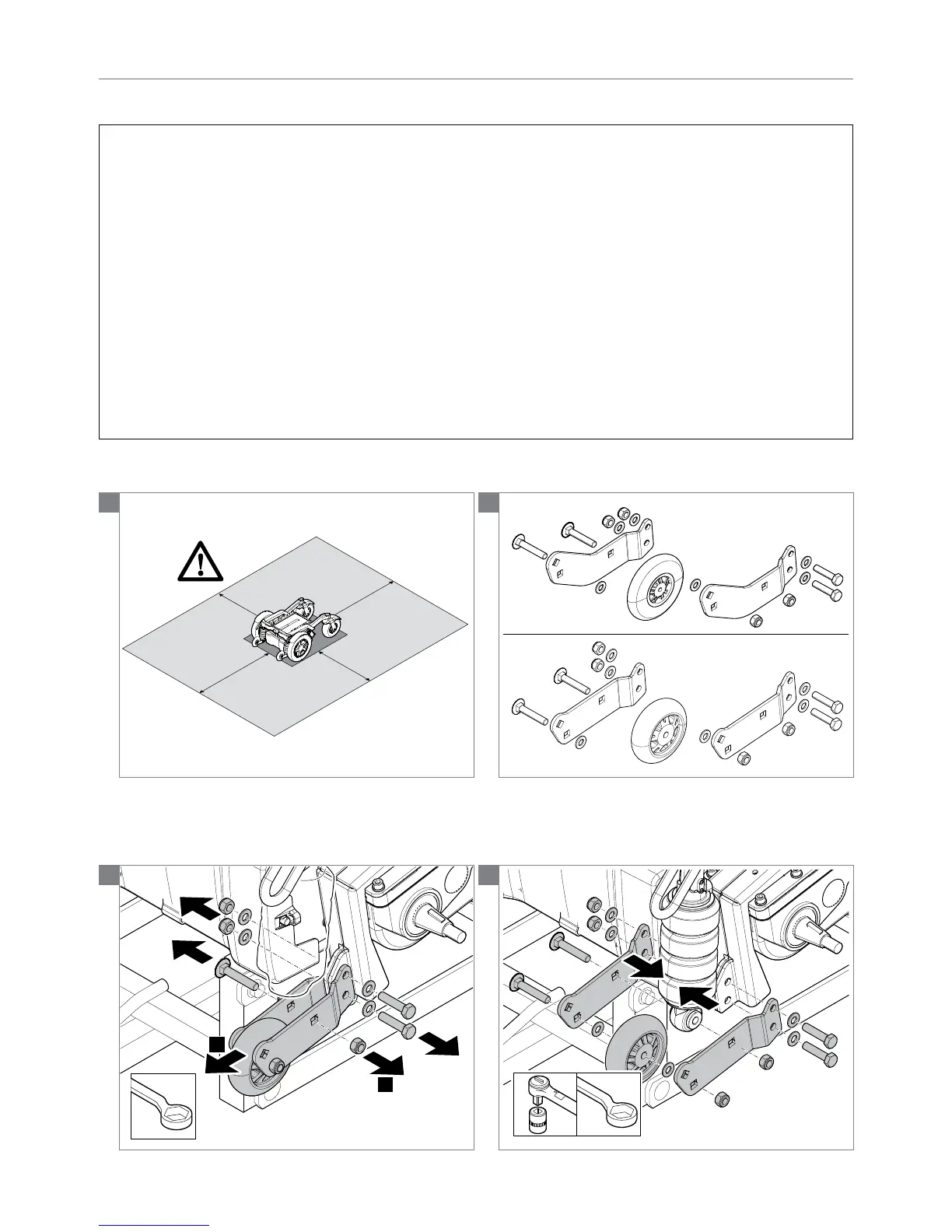

Follow the illustrated instructions.
Relevant article numbers
9005962 P2040 Anti-Tip RWD Complete Service
9005963 P2040 Anti-Tip FWD Complete Service
Tools used
• Open ended or ring spanners, 13 mm, 2x
• Torque wrench, socket, 13 mm
1
min.
100 cm
min.
100 cm
min.
75 cm
min.
75 cm
110648-03-001
2
RWD
FWD
3
13
2X
1
2
110648-03-900_5spaak_2016
Note! Replace the anti-tip wheels and brackets!
4
13
13
25Nm
110648-03-901_5spaak_2016
Note! Use top mounting holes for Indoor anti-tip wheel!
Note! Use bottom mounting holes for Outdoor anti-tip wheel!
