| 169Puma 20/40 | 169

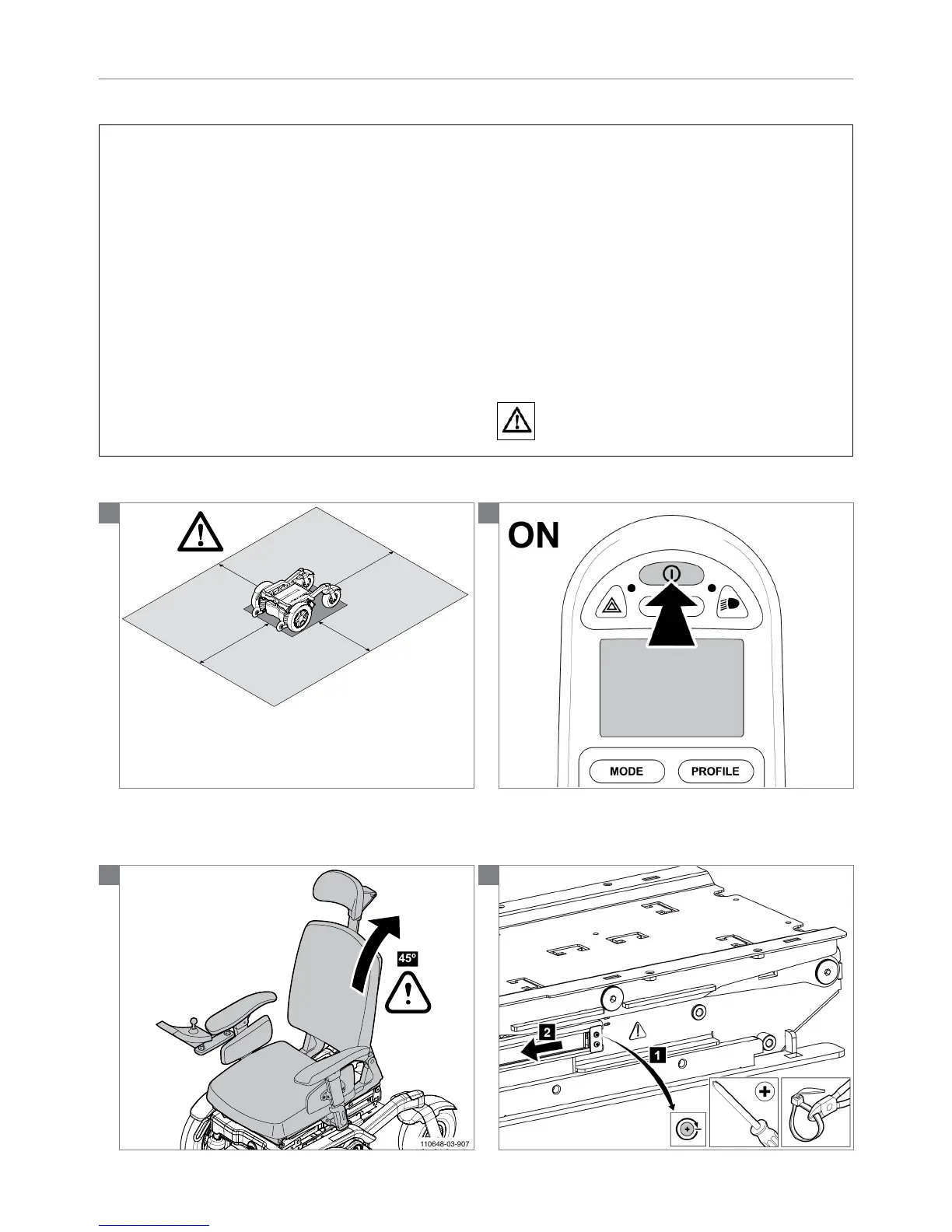

5.3.34 Adjusting the electrical seat tilt 0 - 45°, the maximum tilt angle (< 45°) ), all Puma-versions
There are certain settings of the carrier and seating system
combination at which interference can occur between the
Sedeo seating system and the Carrier (see 5.2.6). In these
situations the maximum tilt angle must be limited to prevent
serious damage.
The maximum tilt angle can be adjusted by use of the up
limit switch which is placed in the prole on the right side of
the tilt module. This switch stops the upward movement as
soon as the triangular slider travels in to it.
Preparation
Switch on the wheelchair via the remote control.
Instructions
• Adjust the seating height and seating system (see 5.2.5
seat adjustments) to the desired settings
• Carefully tilt the seat backwards to the point that it
almost makes contact with the frame of the wheelchair.
• Loosen the up limit switch by unscrewing the cross head
screws a little
• Move the switch to the point that it makes contact with
the slider and push it just a little further until it clicks/
switches
• Tighten the screws again and if needed xate the cable
with a new tie wrap
• Tilt the seat forward and backward again to check if it
stops at the correct angle
Relevant article numbers
9006021 Electrical tilt 45°
9006020 Electrical lift with electrical tilt 45°
Tools used
• Screwdriver, crosshead
• Pair of wire cutters (for tie-wraps)
Icons
Note! Be aware of the issue!
1
min.
100 cm
min.
100 cm
min.
75 cm
min.
75 cm
110648-03-001
Note! Suitable work area required!
2
3
