Quickie puma 20 Technical Manual

Puma 20/40
Spare parts | 17
Pos Qty Article number Description
Pos Qty Article no Description
1-12 1 9005965 Rubber suspension + bridge
8-12 1 9005966 Rubber suspension set Puma 40
13-21 2 9005963 Anti tip complete FWD
13,15,16,18 2 9002896 Anti tip wheel FWD
22-30 2 9005962 Anti tip complete RWD
22,24,25,27 2 9002897 Anti tip wheel RWD
31,32, 34-36 1 9011573 Motor bracket right / left, version > October 2016
32, 34-39, 40a, 44a 1 9011574
Motor 4-pole RWD left/FWD right, 6 km/h DX and Shark, version > October
2016
32, 34-39, 40b, 44a 1 9011575
Motor 4-pole RWD right/FWD left, 6 km/h DX and Shark, version > October
2016
32, 34-39, 41a, 44a 1 9011576
Motor 4-pole RWD left/FWD right, 6 km/h PG (R-net and VR2), version >
October 2016
32, 34-39, 41b, 44a 1 9011577
Motor 4-pole RWD right/FWD left, 6 km/h PG (R-net and VR2), version >
October 2016
32, 34-39, 42a, 44a 1 9011578
Motor 4-pole RWD left/FWD right, 10 km/h DX and Shark, version > October
2016
32, 34-39, 42b, 44a 1 9011579
Motor 4-pole RWD right/FWD left, 10 km/h DX and Shark, version > October
2016
32, 34-39, 43a, 44a 1 9011580
Motor 4-pole RWD left/FWD right, 10 km/h PG (R-net and VR2), version >
October 2016
32, 34-39, 43b, 44a 1 9011581
Motor 4-pole RWD right/FWD left, 10 km/h PG (R-net and VR2), version >
October 2016
32, 34-39, 45a, 44b 1 9011582
Motor 4-pole RWD left/FWD right, 12,5 km/h DX and Shark, version > October
2016
32, 34-39, 45b, 44b 1 9011583
Motor 4-pole RWD right/FWD left, 12,5 km/h DX and Shark, version > October
2016
32, 34-39, 46a, 44b 1 9011584
Motor 4-pole RWD left/FWD right, 12,5 km/h PG (R-net and VR2), version >
October 2016
32, 34-39, 46b, 44b 1 9011585
Motor 4-pole RWD right/FWD left, 12,5 km/h PG (R-net and VR2), version >
October 2016
37-38 2 9011586 Freewheel lever, Puma 40 version > October 2016
39 2 9002784 Brake Release Sticker
44 2 9011587 Bush Kit 4-Pole Incl Caps, version > October 2016

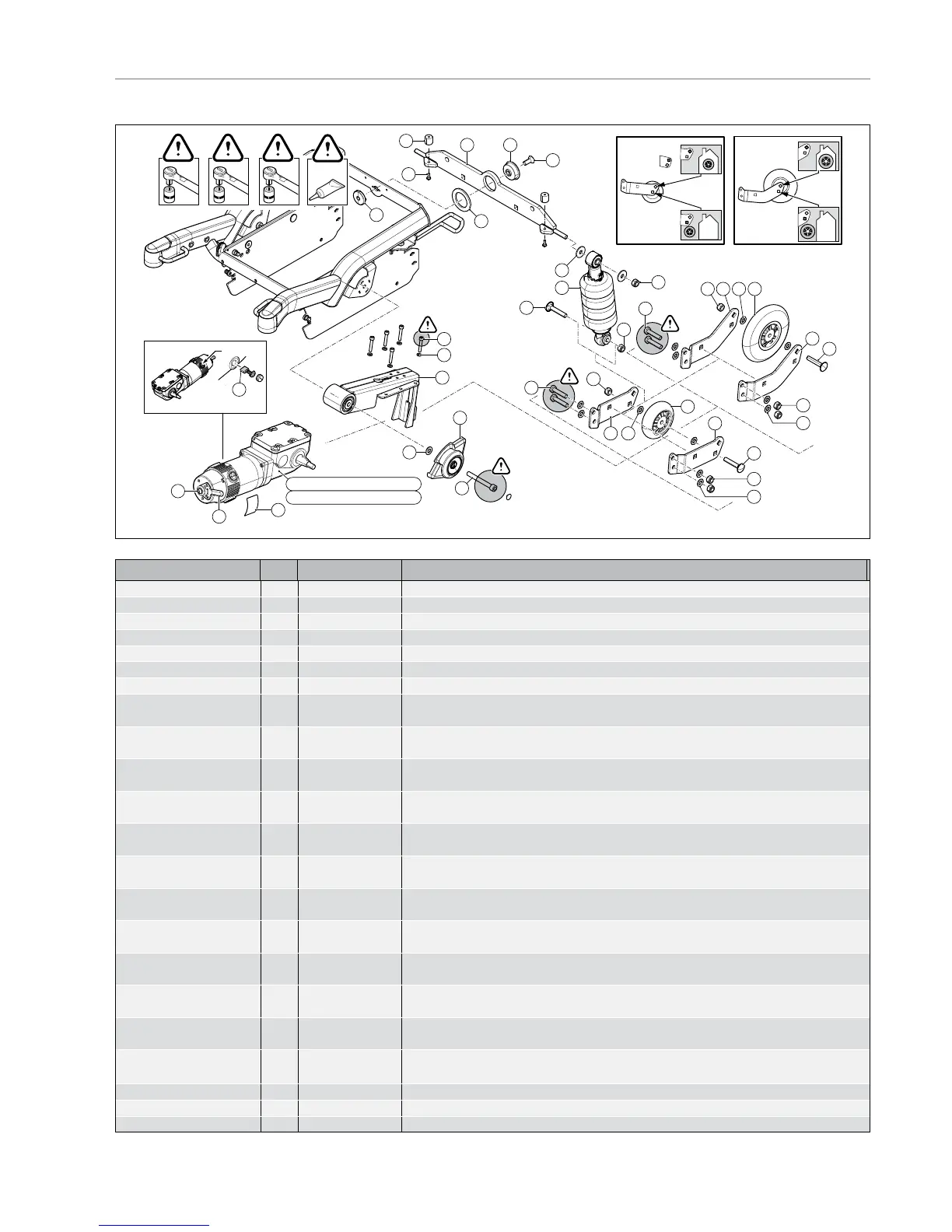

4 Suspension arm and motors Puma 40 > October 2016
SM_P40RWD_EV-03_2016
B,D
A
C
RWD
FWD
C
25Nm
C
10Nm
A
50Nm
B
4x
40a, 41a, 42a, 43a, 45a, 46a
40b, 41b, 42b, 43b, 45b, 46b
37
38
39
11
1
5
9
35
36
33
8
34
32
25
6
13
27
26
12
22
13
17
23 24
28
29
19
20
10
4
30
21
2 3
18 14 1615
44
31
Loctite 243
D
