Quickie puma 20 Technical Manual

Puma 20/40 Trouble shooting | 187
DX2-ACT Flash Code List
Note:

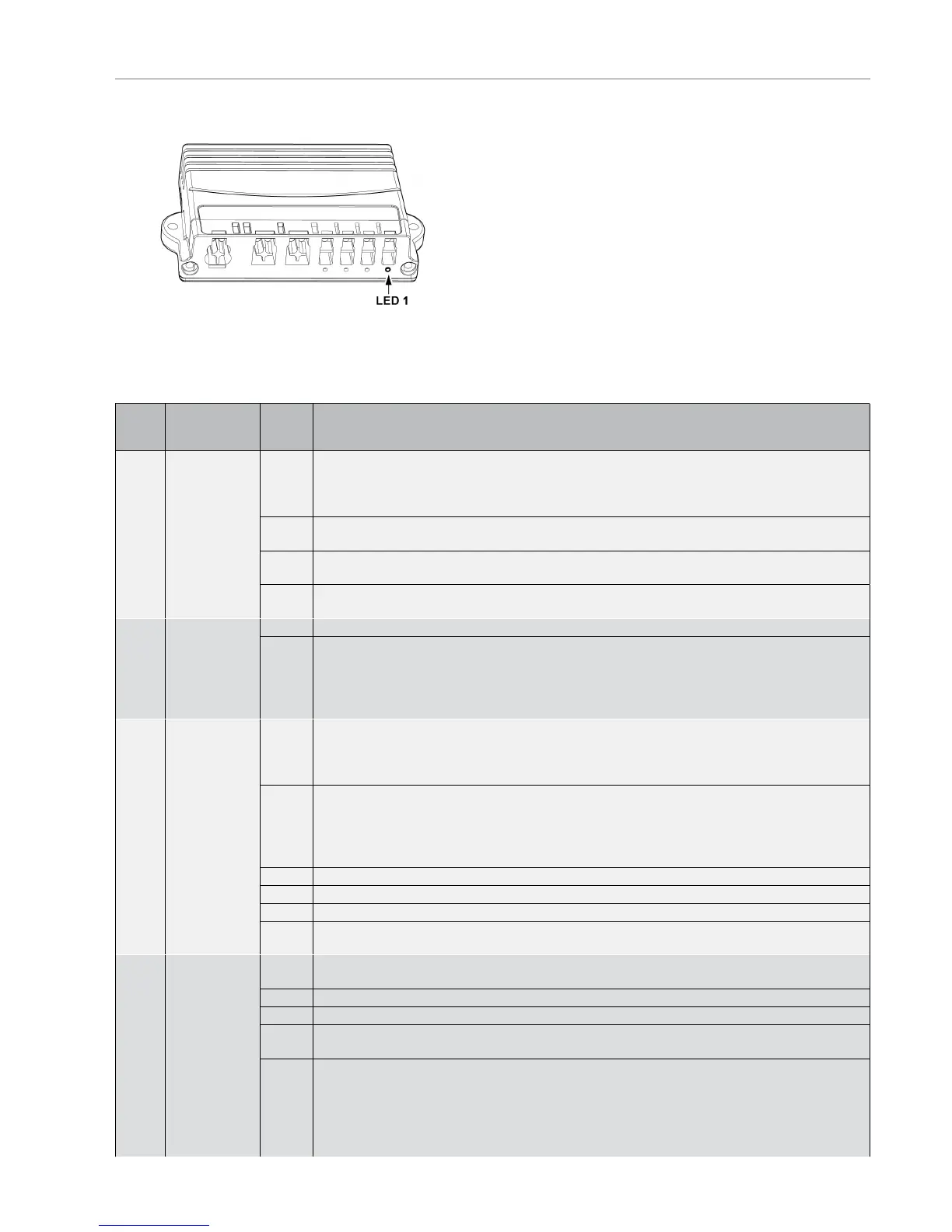

These ash codes are the Actuator Module ash codes that are visible on LED 1 of the Actuator Module. They are not the DX
System ash codes that are visible on the DX System status LED on the Master Remote. For DX System ash codes, see DX2
faultnding table
Flash
Code
Fault
source
Sub
code
(HHP)
Meaning
01 User
00
Wizard programming in progress
• Finish programming and then turn the system off and on.
• Make sure that you wait 10 seconds after you have turned the system off before you turn it
on again.
01
Power Down in progress
• Wait 10 seconds before you turn the system on again.
02
Joystick source changed to a joystick that is not in the centre position
• Release the joystick to the centre
03
Invalid Actuator Prole (A-F) or direction demand
• If this happens often, contact the Service Department of Sunrise Medical HCM
02
Slow function
battery
none see DX2 System condition indications
00
Battery Voltage too low or too high
• Check the batteries and the cables
• Batteries may be empty: charge the batteries
• Batteries may be damaged: replace the batteries
Batteries may be overcharged: if driving downhill, slow down
03 Actuator
00
01
02
03
Internal current or Voltage fault
• Contact the Service Department of Sunrise Medical HCM
04
05
Actuator motor voltage is not what it should be during drive
Possible motor short circuit
• check the actuator cables for damage
• check that the actuator is not faulty
• Otherwise internal controller fault, contact the Service Department of Sunrise Medical HCM
06 Failed To Stop
07 Too Many Fast Current Limit Events
08 Driving Stopped Due To Trip
All
other
Internal fault
• Contact the Service Department of Sunrise Medical HCM
06 Conguration
01
Module ID collision
• Check that multiple Actuator Modules in the system do not have the same ID
02 System check failed
03 Missing system check
05
DX System internal fault
Actuators will not move when the DX System itself is in a fault state
All
other
Internal DX2-ACT conguration fault
• Check DX BUS cables
• Turn the system off and on several times.
Make sure to wait 10 seconds before you turn the system on again.
• If turning the system off and on does not help, contact the Service Department of Sunrise
Medical HCM
