Quickie puma 20 Technical Manual

Puma 20/40
Spare parts | 61
Electrical diagrams VR-2 (3)

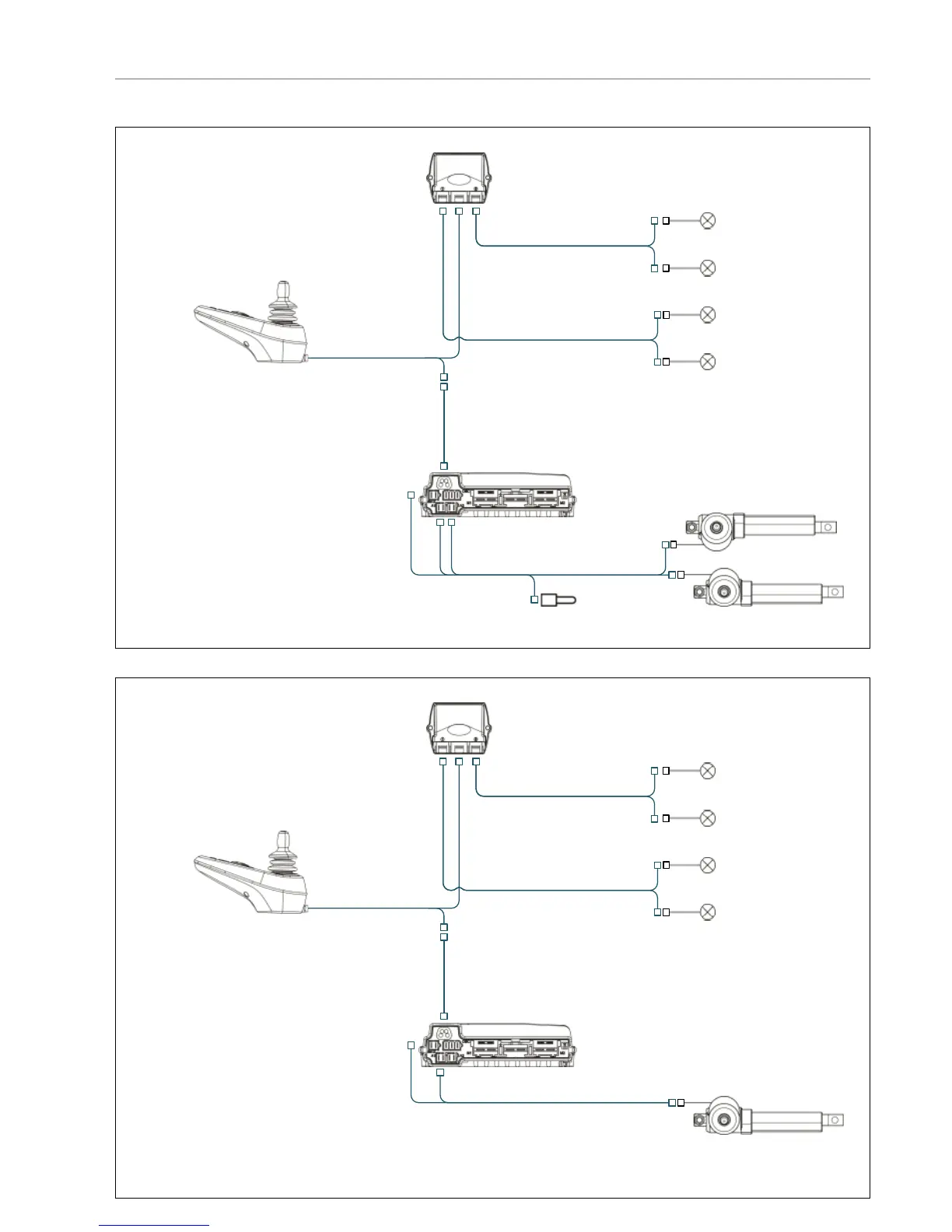

VR2 Lift (Lights optional)
Cable lenghts are not drawn to scale
VR2 6 Puma2040
Lift
Lighting
6000038
6000039
6000038
6000039
PM
JSM
FWD : 9006854 (1.5m)
RWD: 9006855 (2.0m)
LM
9006333
9006333
FWD : 9006328 / RWD: 9006 329
Tilt 45°
VR2 Lift & Tilt 45° (Lights optional)
Cable lenghts are not drawn to scale
VR2 5 Puma2040
Lift
Lighting
6000038
6000039
6000038
6000039
PM
JSM
FWD : 9006854 (1.5m)
RWD: 9006855 (2.0m)
LM
9006333
9006333
FWD : 9006325 / RWD: 9006326
FB-Term
9006301
