Service instructions | 73
Puma 20/40
Service instructions | 73
7
1
10648-03-01
1_FWD_5sp
aak_2016
Note!
Keep the spacers for reuse at step 5.2!

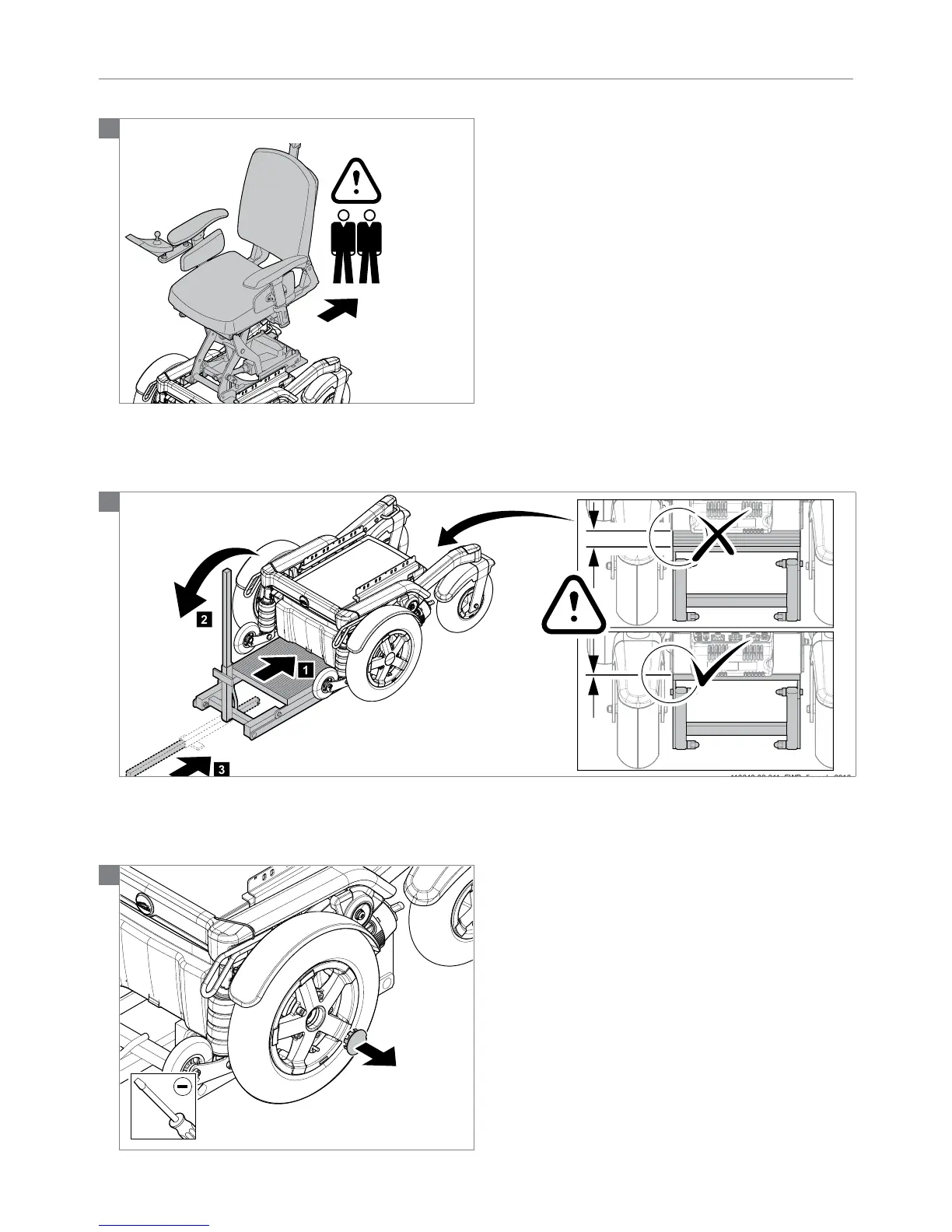

Step 3 Change the direction of drive wheels and the mudguards.
1
3
2
1
1
10648-03-91
1_FWD_5sp
aak_2016
Note!
Use a lifting device to provide a proper working platform.
Note!
Position the lift completely under the carrier!
Caution!
Check no cables are caught between the lift and the carrier!
2
1
10648-03-912_FWD_5spaak_2016
72
74
Table of Contents
Puma
2
Table of Contents
4
Introduction
6
This Manual
6
Identification of the Product
6
Symbols Used in this Manual
6
Safety
7
Maximum User Weight Reduction When Puma 20 Options Are Installed on a Puma 40
7
Personnel Qualification
7
Cautions and Warning Statements
7
Used Decals on the Wheelchair
9
Tools, Parts and Components
10
Tools
10
Tools Electronics
10
Driving Programs
10
Spare Parts
11
Use Of The Parts Lists
11
Carrier and Seat Adjustments
12
Pos Description Page
13
Battery Tray and Suspension and Chair Interface Puma 20/40 (All Versions)
14
Dahl Car Docking System Puma 40 FWD (Only I.C.w. Sedeo Pro+)
15
Dahl Car Docking System Puma 40 RWD (Only I.C.w. Sedeo Pro+)
16
Suspension Arm and Motors Puma 40 > October 2016
17
Suspension Arm and Motors Puma 40 < November 2016
18
Suspension Arm and Motors Puma 20 > October 2016
20
Suspension Arm and Motors Puma 20 < November 2016
21
Castor Forks and Wheels Puma 40 / 5-Spoke Wheels > October 2016
22
Castor Forks and Wheels Puma 40 / 3-Spoke Wheels > October 2016
24
Castor Forks and Wheels Puma 40 < November 2016
25
Castor Forks and Wheels Puma 20 (All Versions)
27
Covers Puma 40 / 5-Spoke Wheels > October 2016
29
Covers Puma 40 / 3-Spoke Wheels > October 2016
30
Covers Puma 40 < November 2016
31
Covers Puma 20 > October 2016
32
Covers Puma 20 < November 2016
33
Tilt and Lift Modules Puma 40 (All Versions)
34
Tilt Modules Puma 20 (All Versions)
35
Kerb Climber Puma 20/40 (All Versions)
36
Direct Access Puma 20/40 (All Versions)
37
Attendant Z-Steering (Only for the Norwegian Market)
38
Wiring and Modules Shark
39
Wiring and Modules R-Net
46
Wiring And Modules Dx2
52
Wiring And Modules Vr2
58
Service Instructions
67
Maintenance Plan
67
Cabling
68
Assembly, Replacement and Adjustment Instructions
69
Replacing Puma 20 Motors
69
Converting Front Wheel Drive (FWD) to Rear Wheel Drive (RWD) and Vice Versa, Puma 40 / 5-Spoke Wheels > October 2016
70
Converting Front Wheel Drive (FWD) to Rear Wheel Drive (RWD) and Vice Versa, Puma 40 / 3-Spoke Wheels > October 2016
79
Converting Front Wheel Drive (FWD) to Rear Wheel Drive (RWD) and Vice Versa, Puma 20/40 < November 2016
89
Puma
98
Mounting the Kerb Climber (RWD, All Puma-Versions)
98
Replacing the Carbon Brushes, Puma 40 / 5-Spoke Wheels > October 2016
100
Replacing the Carbon Brushes, Puma 40 / 3-Spoke Wheels > October 2016
104
Replacing the Carbon Brushes, Puma 40 < November 2016 and Puma 20 (All Versions)
108
Replacing the Drive Wheel, Indoor/Outdoor, Puma 40 / 5-Spoke Wheels > October 2016
112
Replacing the Drive Wheel, Indoor/Outdoor Puma 40 / 3-Spoke Wheels > October 2016
114
Replacing the Drive Wheel, Indoor/Outdoor, Puma 40 < November 2016
116
Replacing the Drive Wheel, Indoor/Outdoor, Puma 20 (All Versions)
119
Replacing The Tube And/Or Tyre Of A Drive Wheel, Puma 40 / 5-Spoke Wheels > October 2016
121
Replacing The Tube And/Or Tyre Of A Drive Wheel, Puma 40 / 3-Spoke Wheels > October 2016
124
Replacing the Tube And/Or Tyre of a Drive Wheel, Puma 20/40 < November 2016
127
Replacing the Castor Wheel, All Puma-Versions
131
Replacing the Tyre And/Or Tube of the Castor Wheel, All Puma-Versions
133
Replacing the Castor Fork, All Puma-Versions
136
Mounting the Direct Access, All Puma-Versions
138
Mounting the Attendant Steering on Backrest Frame Sedeo Pro+, All Puma-Versions
139
Mounting the Attendant Z-Steering Mechanisme Sedeo Pro+ (Only for Norwegian Market)
140
Replacing the Batteries, All Puma-Versions
141
Replacing the Power Module, All Puma-Versions
145
Replacing the Mudguards, Puma 40 / 5-Spoke Wheels > October 2016
147
Replacing the Mudguards, Puma 40 / 3-Spoke Wheels > October 2016
149
Replacing the Mudguards, Puma 20/40 < November 2016
151
Replacing the Coloured Covers (All Puma 40-Versions, Not Valid for Puma 20)
153
Replacing the Anti-Tip Wheels and Bracket, All Puma-Versions
155
Adjusting the Seating Height, All Puma-Versions
156
Adjusting the Centre Point of Gravity, All Puma-Versions
161
Adjusting the Mechanical Seat Tilt, All Puma-Versions
164
Adjusting the Electrical Seat Tilt 0 - 25°, All Puma-Versions
165
Adjusting the Electrical Seat Tilt 0 - 45°, the Minimum Tilt Angle (0 - 9°), All Puma-Versions
167
Adjusting the Electrical Seat Tilt 0 - 45°, the Maximum Tilt Angle (< 45°) ), All Puma-Versions
169
Seat Tilt Configuration Tables
171
Guidelines to Solve Shimmy Problems
179
Trouble Shooting
180
Shark Faultfinding Table
180
R-Net Faultfinding Table
181
DX2 Faultfinding Table
185
Faultfinding Table
189
Technical Product Information
192
CE Declaration and Standards
192
Technical Information
192
Warranty
195
Definitions Of Terms
195
Warranty Period Table
195
Serial Number
200
