QM-7 SERIES SERVICE MANUAL
PAGE 1.10
JANUARY 2012 SUNRISE MEDICAL
1 = 24 Vdc (POS)
2 = 0 Vdc (NEG)
3 = Inhibit 1/
Programmer
1 = White
2 = Blue
3 = Black (-)
4 = Red (+)
2
1
3
Charger Port
Charger port
Joystick 4pin connector
M1 = LEFT SIDE MOTOR
M2 = RIGHT SIDE MOTOR
JSM = JOYSTICK MODULE
INH-2 = INHIBIT 2
A1 = ACTUATOR 1
A2 =ACTUATOR 2
OBC = ON BOARD
CHARGER
+ - =BATTERY
1 = 24 Vdc
2 = 0 Vdc
3 = INHIBIT 1/
PROGRAMMER
VR2 Controller
On-Board Charger - Used to power Switch-
controlled actuators and Actuator Inhibit.
Motor Plug Port
+
_

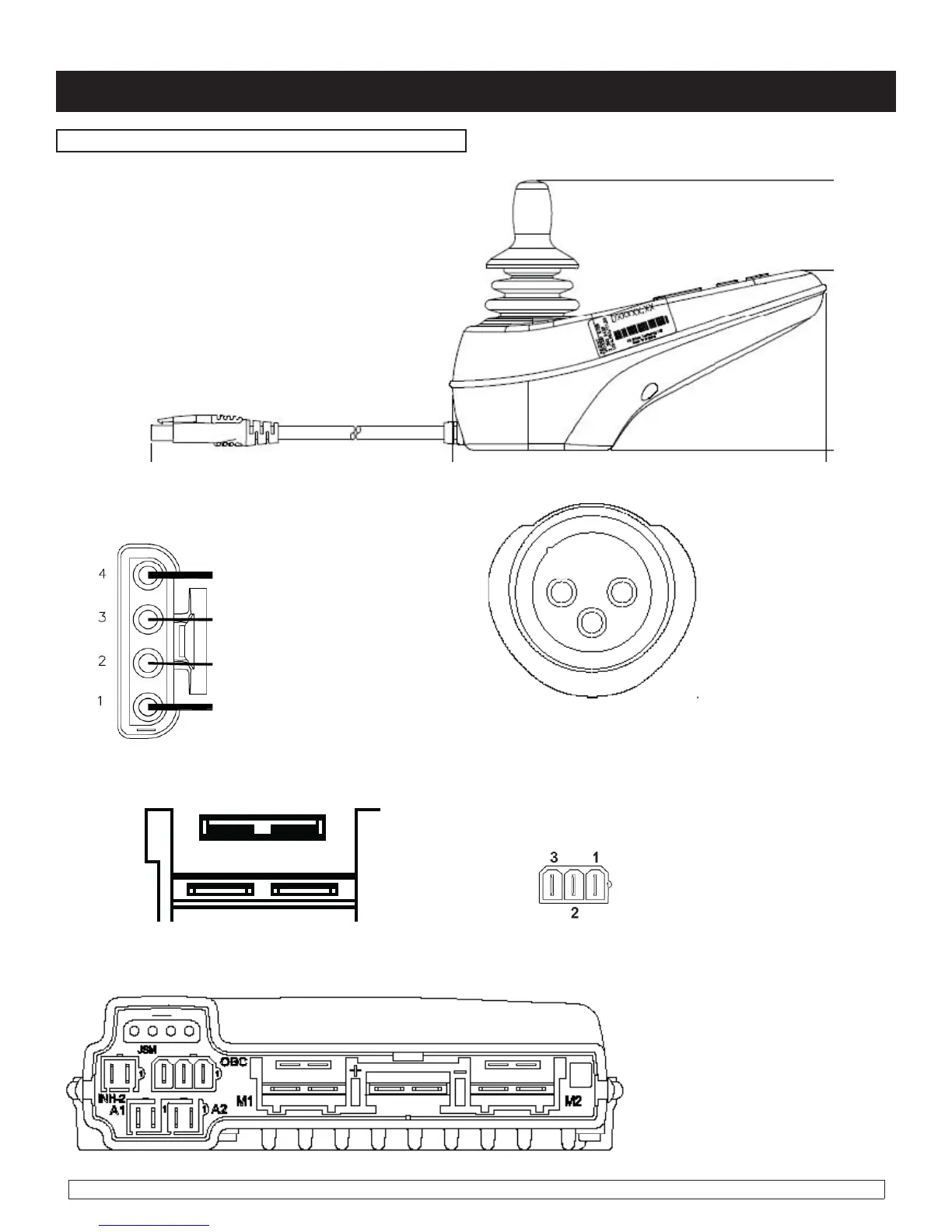

VR2 Plugs and Connectors
Section 1
Motor Brakes
