QM-7 SERIES SERVICE MANUAL
PAGE 8.5
JANUARY 2012SUNRISE MEDICAL
Section 8

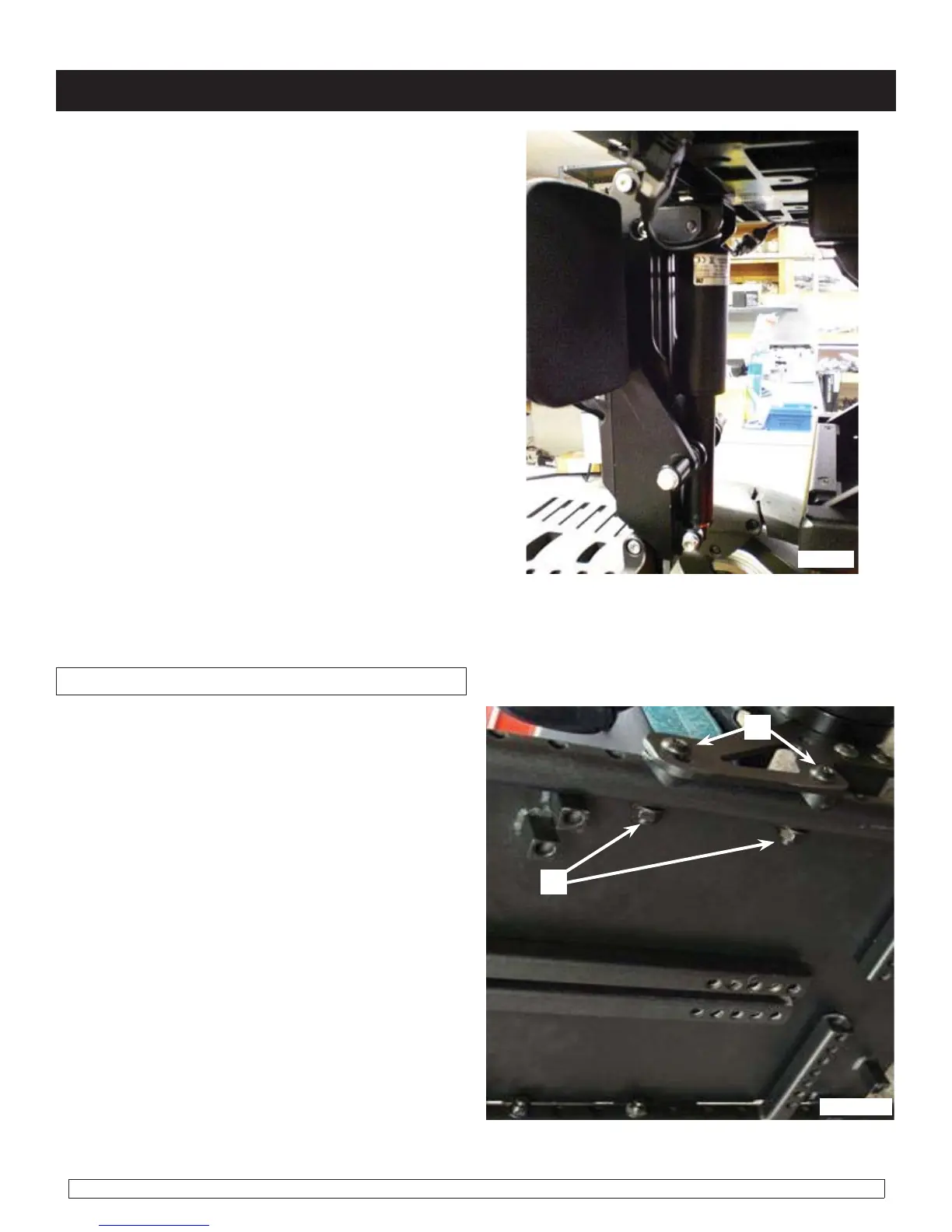

4. Left Command (4) - Operates extension of
leg outward and inward. Actuator is shown,
(fig 8.5.1)
fig. 8.5.1
Back-rest Angle Adjustment
1 Make sure you have the right tools- 5mm
Hex Key, and 13mm open end wrench and/or
ratchet.
B
fig. 8.5.2
2. Loosen the 2 BHCS bolts (A) (figure 8.6.1)
with a 5mm Hex key and use 13mm open end
Wrench for the nuts (B).
A
