QM-7 SERIES SERVICE MANUAL
PAGE 7.6
JANUARY 2012 SUNRISE MEDICAL
Section 7
1. To remove or replace the Caster Stem, Use a
Flat Head Screwdriver to remove the Caster cap
as shown in (fi gure 7.6.3)
fig. 7.6.4
2. Using a 24mm Socket for the Locknut on top of
the stem, and an open end 24mm wrench for the
bottom of the stem assembly, remove the locknut,
washer, and caster stem from the Caster Arm.
(fi gure 7.6.4)

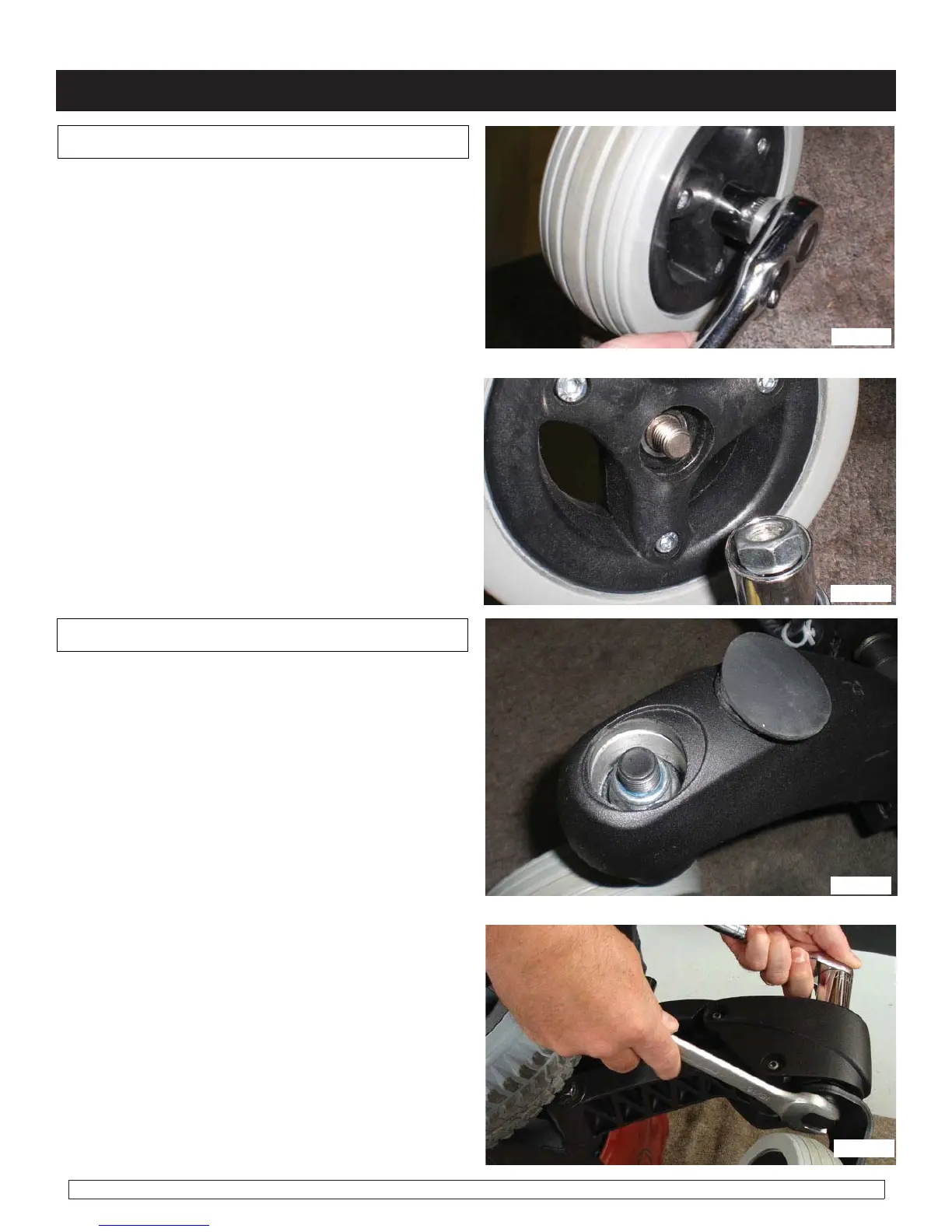

Front and Rear Caster Stem Removal
Front and Rear Caster Wheel Removal
fig. 7.6.1
fig. 7.6.2
1. Use a 17 mm socket to remove the Locknut
holding the wheel to the caster shaft, and remove
the wheel (fi gure 7.6.1, and 7.6.2).
fig. 7.6.3
