QM-7 SERIES SERVICE MANUAL
PAGE 1.13
JANUARY 2012SUNRISE MEDICAL
M1 = LEFT SIDE MOTOR
M2 = RIGHT SIDE MOTOR
INH-2 = INHIBIT 2
A1 = ACTUATOR 1
A2 =(NOT USED)
OBC = ON BOARD
CHARGER
+ - =BATTERY
1 = 24 Vdc (POS)
2 = 0 Vdc (NEG)
3 = Inhibit
1 = White wire
2 = Blue wire
3 = Black (-)
4 = Red (+)
2
1
3
Motor Plug Port
1 = 24 Vdc
2 = 0 Vdc
3 = INHIBIT 1/
PROGRAMMER
Rnet Controller
12
3
4
+
_
Charger Port
On-Board Charger - Used to power Switch-
controlled actuators and Actuator Inhibit.

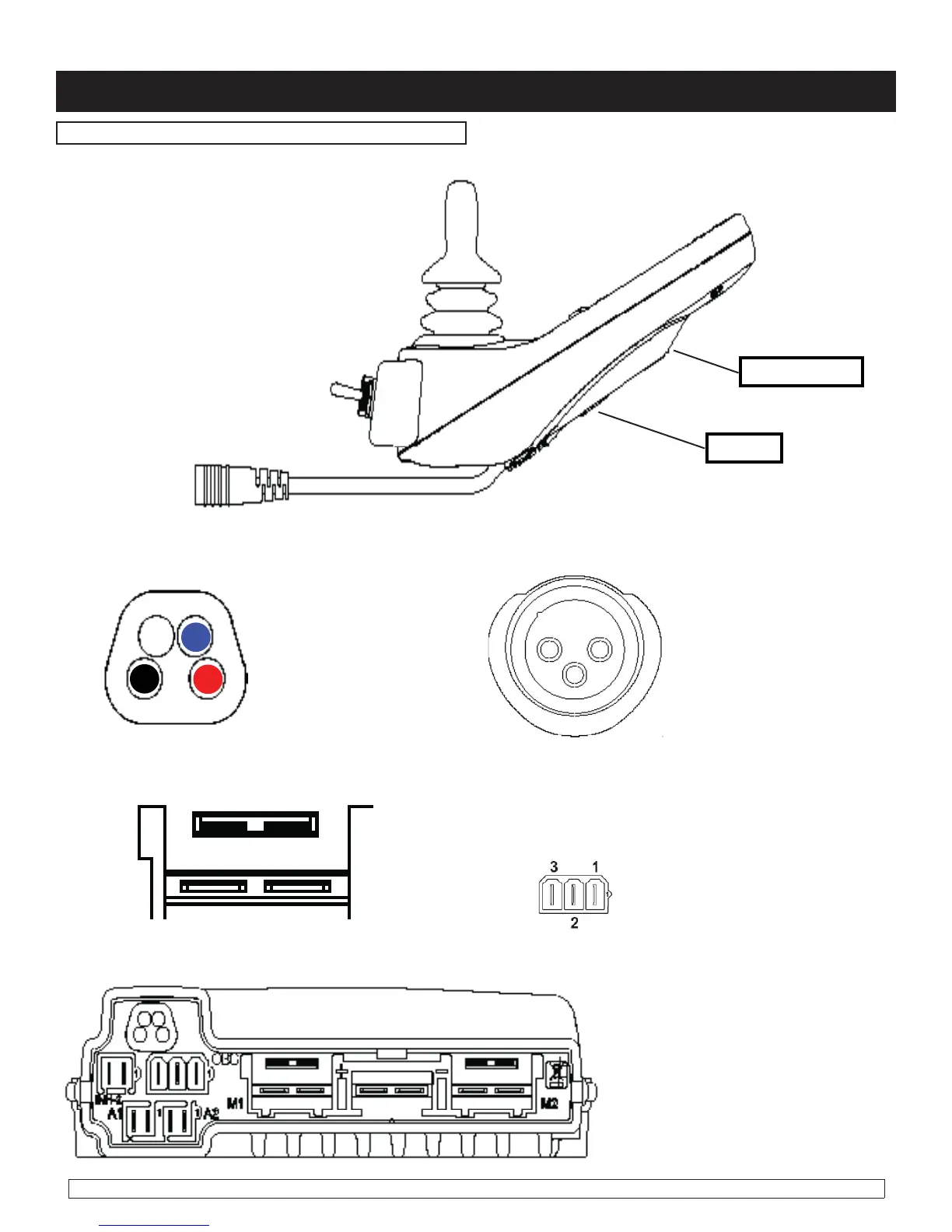

R-NET Plugs and Connectors
Section 1
Pinout for Rnet Harness
Jacks
Motor
Brakes
