Cantilevered Armrest adjustments

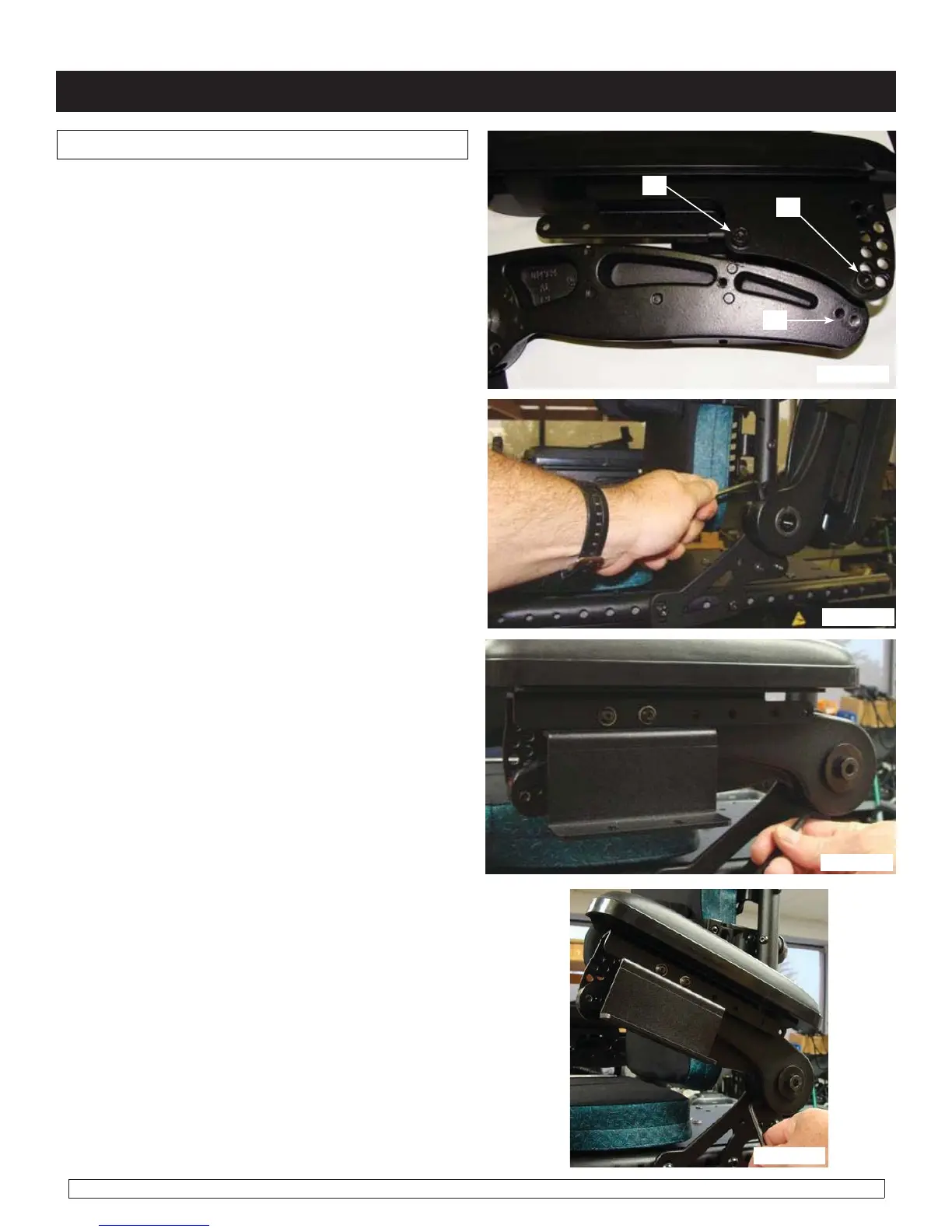

1. The Kids Cantilevered Armrest angle adjust
range is from 0° to 40° in 5° increments. To adjust
the armrest angle up or down, loosen the pivot
bolt (A) and unscrew the 5mm bolt (B) using a
Hex key (figure 8.9.1) Adjust as necessary, using
either the inside or outside bolt hole (C) and then
re-tighten bolts to specifications.
A
B
fig. 8.9.1
C
fig. 8.9.2
2. Height adjustment for the armrest also utilizes
the 5mm Hex Key. Loosen the bolt as shown in
(figure 8.9.2) and move the armrest up or down.
Once desired height is acheived, re-tighten the
bolts on both sides to specifications
3. For User-in-chair angle adjustments, Loosen
the set screw with a 5mm Hex Key as shown in
(figure 8.9.3). adjust the armrest angle and then
tighten the set screw at desired angle.
(figure 8.9.4.
fig. 8.9.4
fig. 8.9.3
