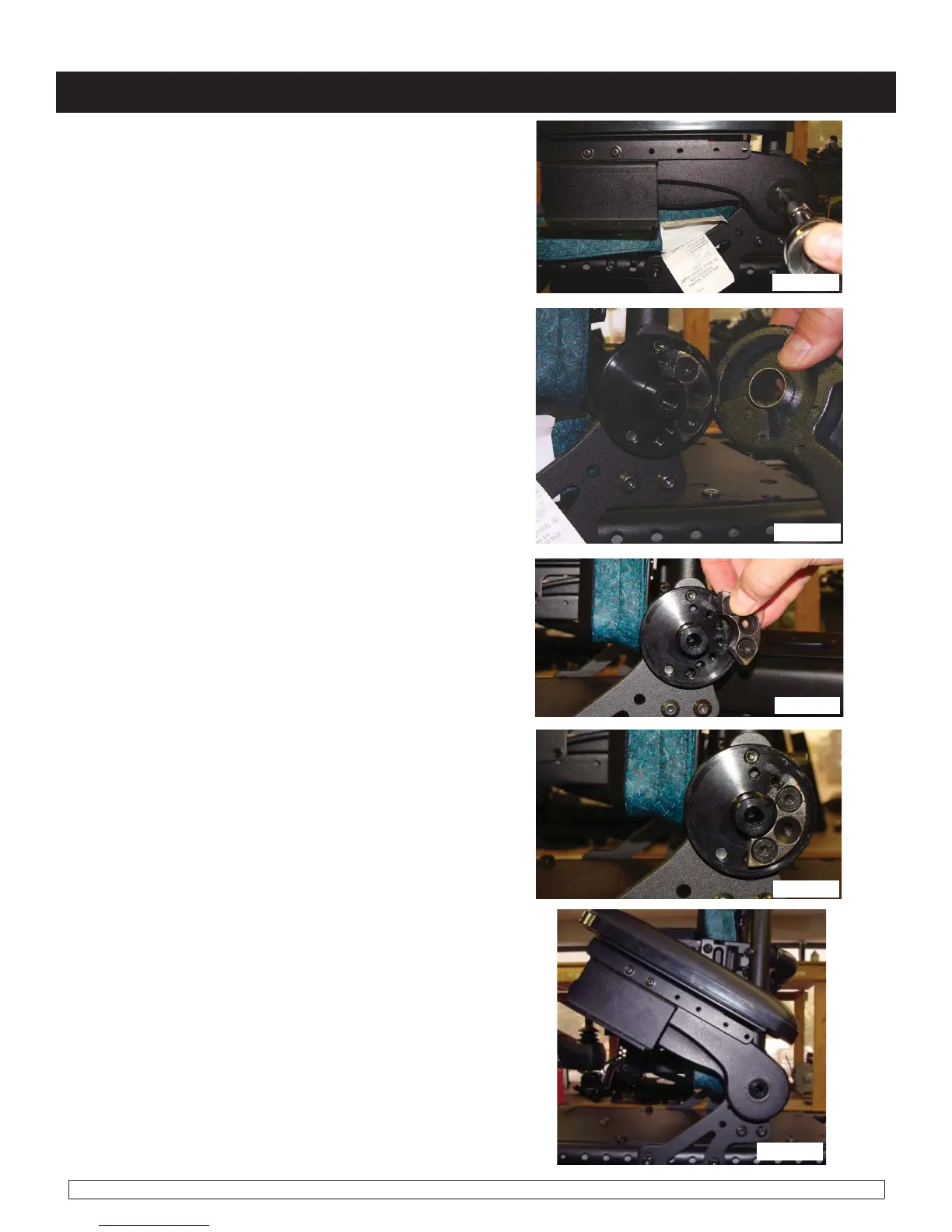

3. For Extreme angle adjustments, remove the
outside shell of the armrest casing using a 7mm
Hex Key on the bolt as shown in (figure 8.10.1)
and (figure 8.10.2)
4. For Extreme angle adjustments, remove the
outside shell of the armrest casing using a 7mm
Hex Key on the bolt as shown in (figure 8.10.3)
fig. 8.10.1
5. Remove the flathead socket screws holding
the insert block in place and adjust as shown.
The block can be set from 17° forward, or 15°
rearward. Block placement in (figure 8.10.4),
yeilds the result seen in (figure 8.10.5)
fig. 8.10.2
fig. 8.10.3
fig. 8.10.4
fig. 8.10.5
