Quickie QM-7 Series - Powered Center-Mount Legrest Adjustment

QM-7 SERIES SERVICE MANUAL
PAGE 8.4
JANUARY 2012 SUNRISE MEDICAL
Section 8

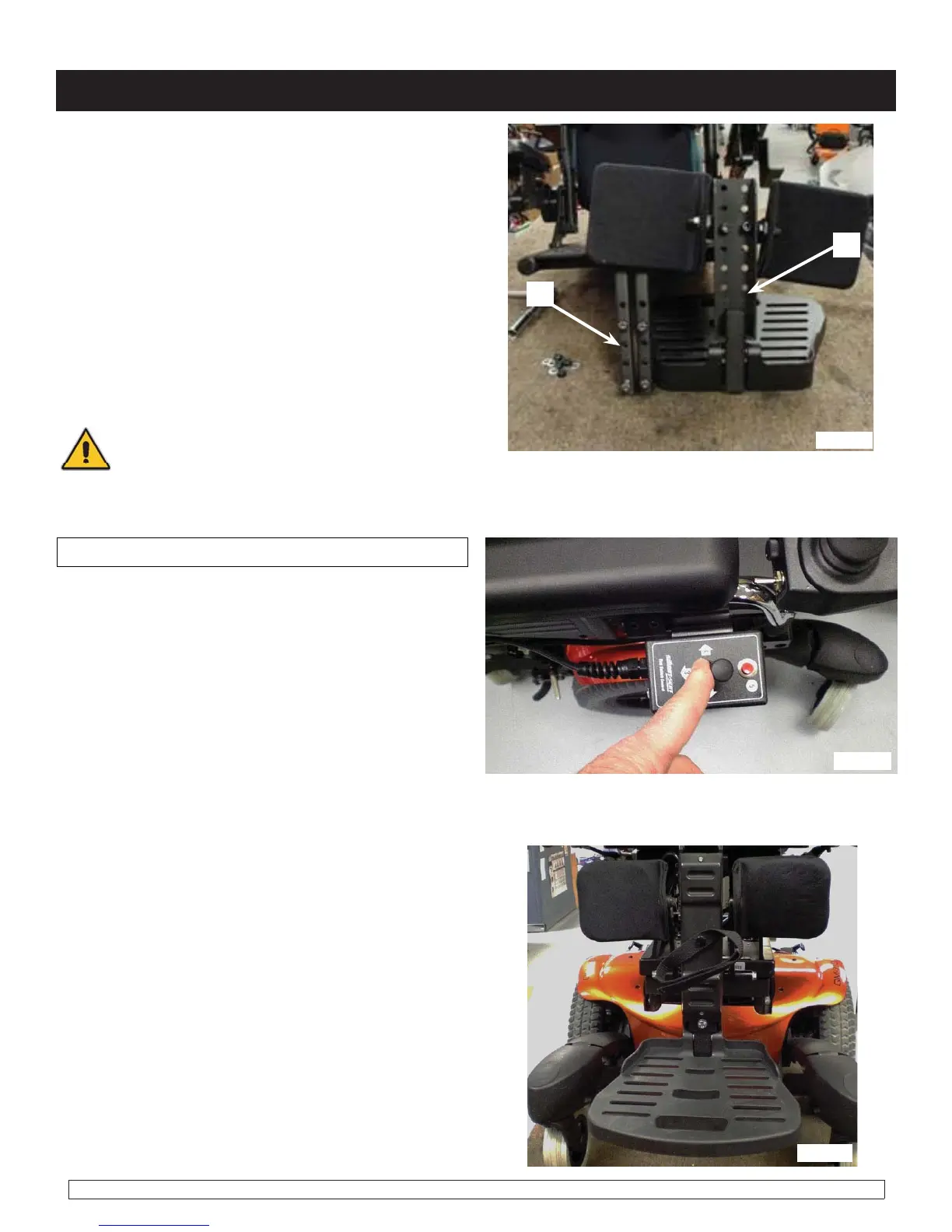

fig. 8.4.1
4. Once desired height is achieved, Reset
placement of bolts then tighten with 5mm Hex
key and 13mm wrench. Tighten to correct
torque specifications (figure 8.4.1)
Powered Center-Mount Legrest adjustment
1. To perform Legrest adjustments (figure 8.4.2)
Operation of the 4-way switch is detailed below.
2 Right Command (2) - Controls the raising and
lowering of the leg on the center mount.
3. Reverse Command (3) - Operates both raising
and lowering Center Mount, plus extension of
the legrest (figure 8.4.3)
fig. 8.4.3
fig. 8.4.2
3. There are 5 sets of holes as seen on the
front bars (A), and 6 sets of holes as seen on
the centerpost (B) (figure 8.4.1) Bolts can go
through any of these holes to give adjustability
of up to 6 inches from top to bottom. To extend
the front arms further, simply loosen 5mm
size SHCS screws and move the bars further
forward, then retighten.
A
B
Caution: Allow at least 2" of Ground Clearance when making adjustments to the legrest, and
footplate assembly.
NOTE: It is also possible to perform these operations with the thru Drive using the joystick.
