Section 8

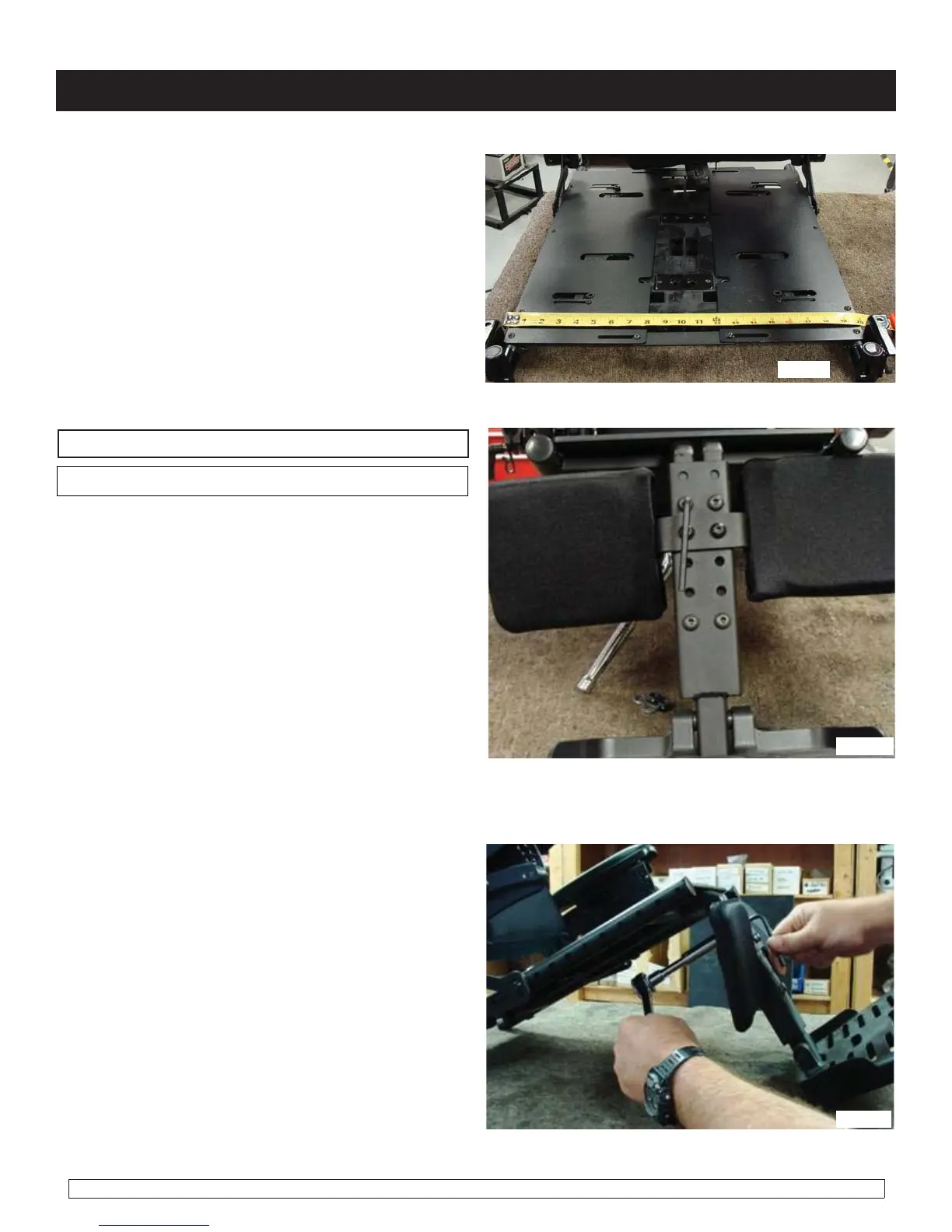

8. After checking alignment, symmetry, and
measurement of the final adjustment change,
(figure 8.3.1) the nuts and bolts can be re-
tightened in the reverse order of the steps listed.
Make sure all bolts are tightened to appropriate
specifications.
fig. 8.3.1
Legrest adjustment
1. To perform a Legrest adjustment (figure
8.3.2) the following tools are required: A 5mm
Hex Key, and a 13mm open end wrench and/or
ratchet.
2 Loosen all 3 sets of bolts/nuts as shown in
(figure 8.3.2) and (figure 8.3.3) using the 5mm
hex key and 13mm open-end wrench or ratchet.
Move the footrest extension, and calfpads to the
desired fit locations. Double-check fit with client
before fully tightening the hardware.
fig. 8.3.2
Long or Short Center-Mount adjustment
fig. 8.3.3
