QM-7 SERIES SERVICE MANUAL
PAGE 8.2
JANUARY 2012 SUNRISE MEDICAL
Section 8

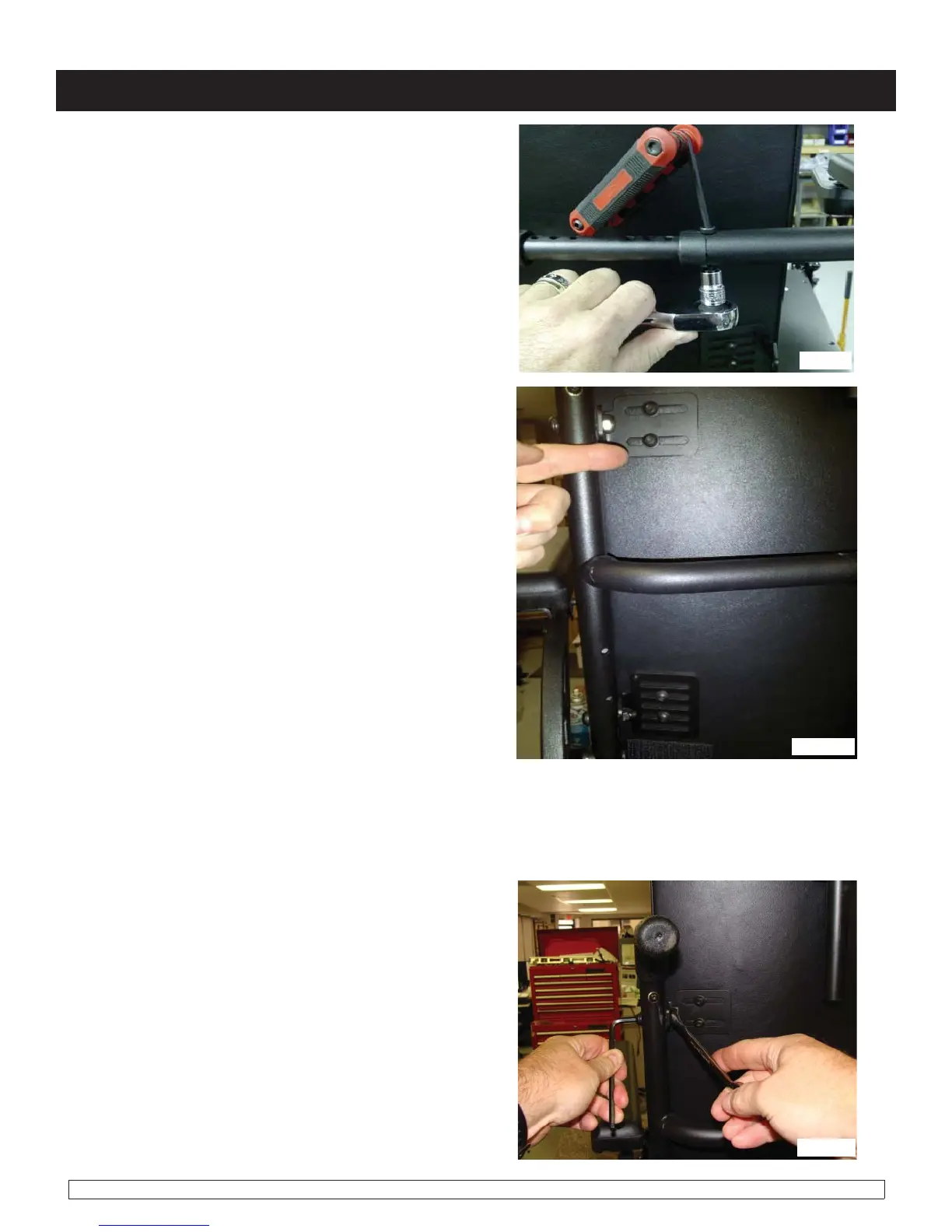

6. Loosen the Back bracket on the chair to allow
for changes to the seat width. (figure 8.2.2).
7. Using a 5mm Hex Key and either a 13mm
open end wrench or ratchet., Remove the nuts
and bolts from the back bracket attached to the
back cane assembly (figure 8.2.3) and adjust as
necessary.
fig. 8.2.2
fig. 8.2.3
5. Remove the nut, and bolt that secures the
rear towel bar using a 4mm Hex Key and a
13mm open end wrench or ratchet as shown in
(figure 8.2.1).
fig. 8.2.1
NOTE: It is recommended to use the back width to accommodate the user, for example – 16
with 16 wide – 18 with 18” wide. If, however there is a ½ “ adjustment needed, the brackets in
(figure 8.2.2) show that a ½” change equals a 1” accomadation to the user .
