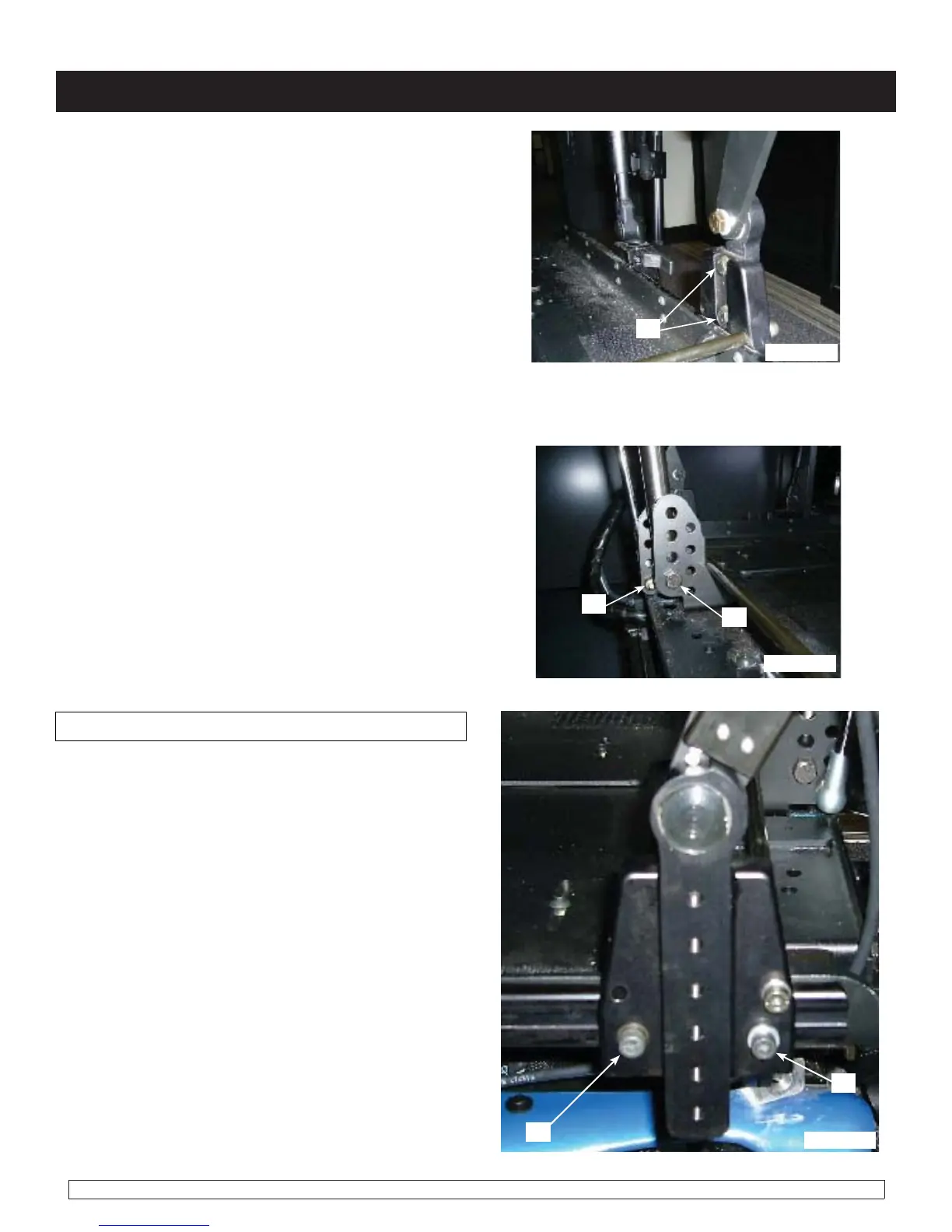

QM-7 SERIES SERVICE MANUAL

PAGE 8.8

JANUARY 2012 SUNRISE MEDICAL

Section 8

3. Re-insert and tighten the bolts securing the

pivot point. (figure 8.8.1)

4. As the pivot point is raised, the recline

actuator and gas strut must be raised an equal

amount. Do this by removing the mounting bolts

(B) to raise the units. (figure 8.8.2)

Note: If the pivot point is raised, it is suggested to replace the back pan with a larger pan to

decrease the gap from the bottom of the back to the seat-pan.

fig. 8.8.1

fig. 8.8.2

2. Use a 7/16" socket and ratchet to remove

the bolts holding pivot point (A). Raise it to the

desired location.(figure 8.8.1)

6. Seat-back depth is adjusted by moving the

mounting brackets to the front or the rear, in the

seat-pan track. (figure 8.9.1)

7. Loosen the two mounting bolts (C) and slide

the bracket to the desired location. There are

recessed holes in track for Seat depth as well.

(figure 8.8.3)

Seat-back depth adjustment

fig. 8.8.3
