QM-7 SERIES SERVICE MANUAL
PAGE 7.5
JANUARY 2012SUNRISE MEDICAL
Section 7
3. Use 4 mm Hex Key to remove left and right
screws/washers attaching the controller to the
Battery Box (fi gure 7.5.1).
4. Once all bolts and washers have been removed,
Separate the module from the backing plate and
remove it. (fi gure 7.5.2)

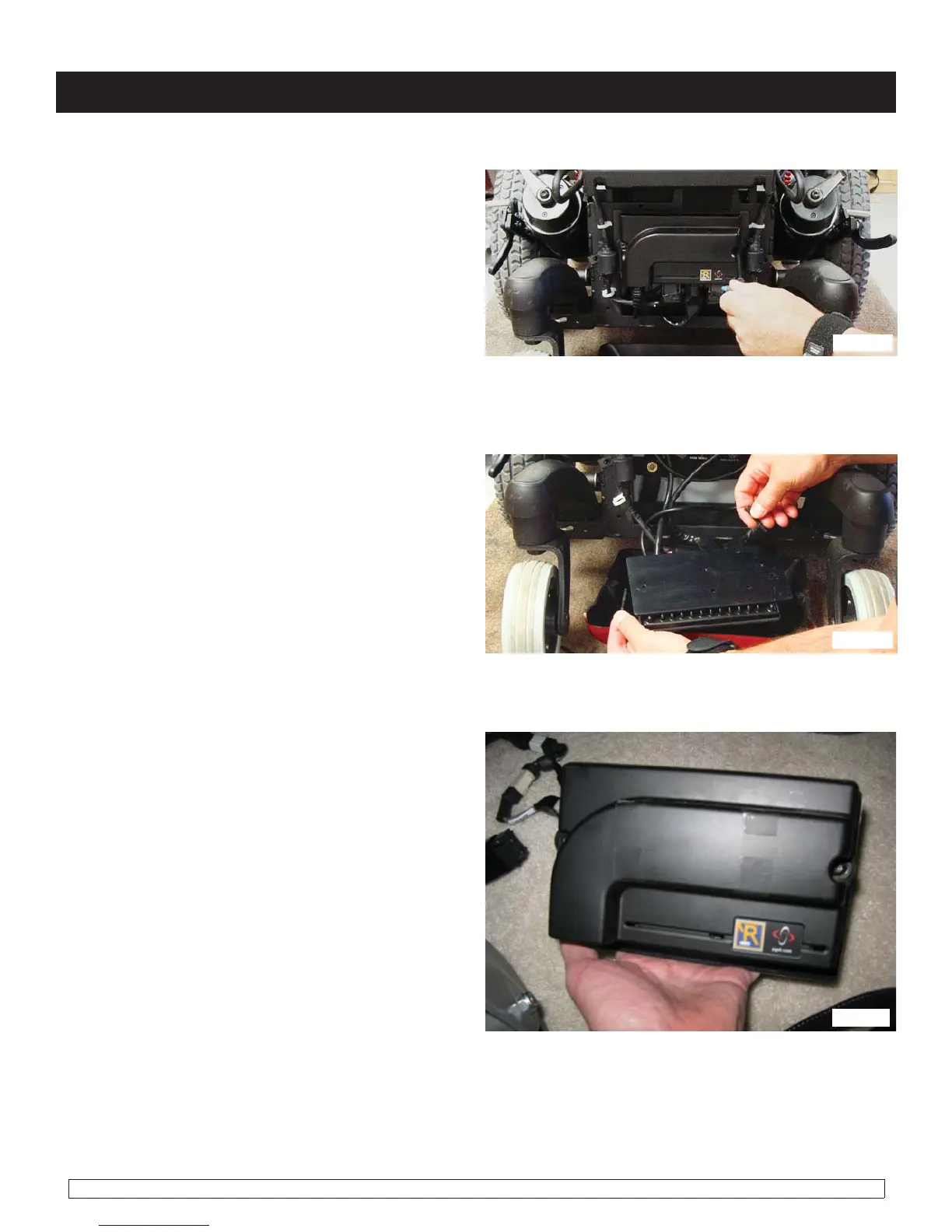

fig. 7.5.1
fig. 7.5.2
fig. 7.5.3
5. To re-install the controller reverse the previous
steps. (fi gure 7.5.3)
