QM-7 SERIES SERVICE MANUAL
PAGE 7.11
JANUARY 2012SUNRISE MEDICAL
Section 7

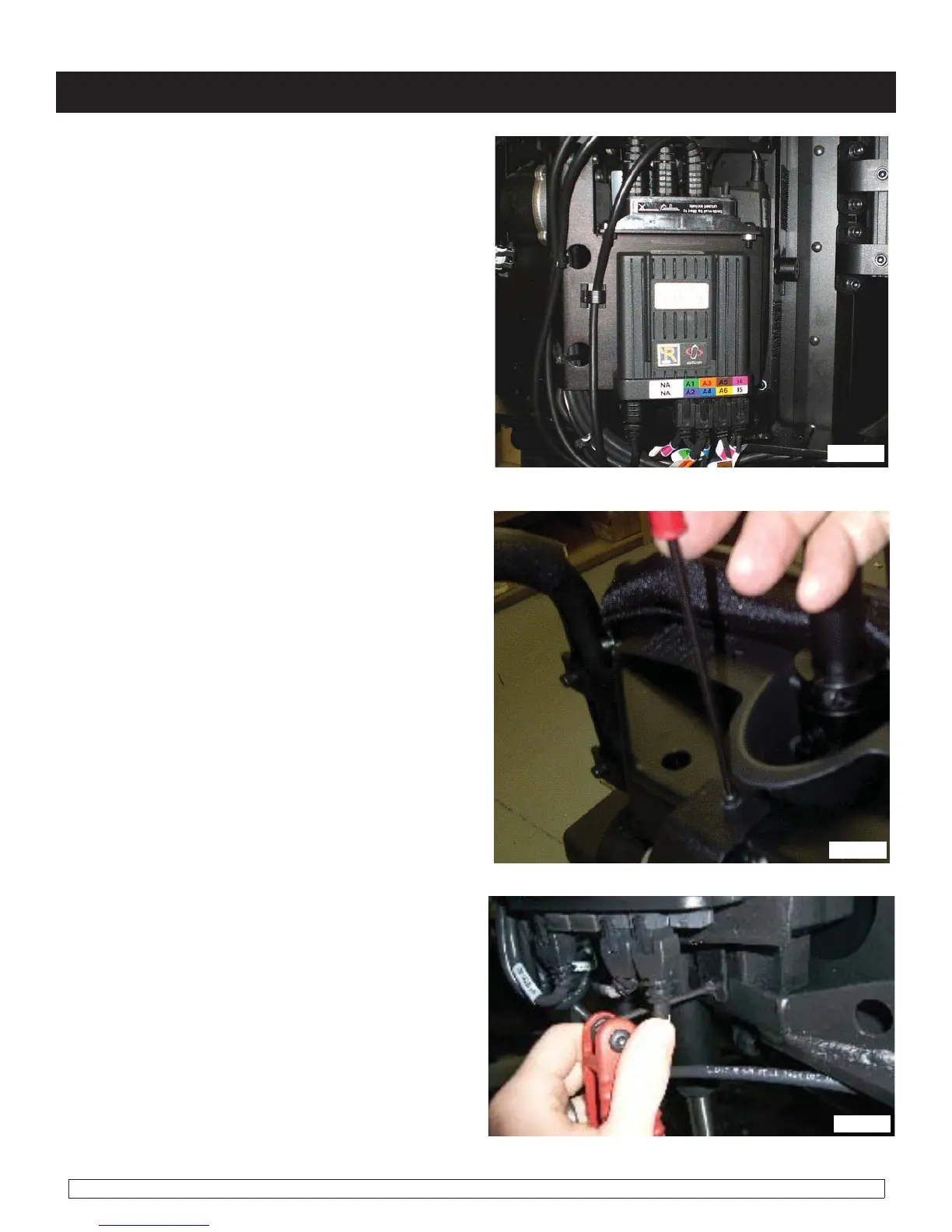

3. Use a 9/64" Hex wrench to remove the socket
head cap screws that attach the ISM mount to the
recline structure (fi gure 7.11.2).
4. Use the same wrench to loosen (Do not
Remove) the bottom two socket head cap screws.
(fi gure 7.11.3)
fig. 7.11.3
fig. 7.11.2
fig. 7.11.1
2. Remove the rear Recline shroud. This will
allow access to the ISM control Module.
(fi gure 7.11.1)
