QM-7 SERIES SERVICE MANUAL
PAGE 7.13
JANUARY 2012SUNRISE MEDICAL
Section 7
8. Use a 1/4" Hex wrench and a 9/16" open-end
wrench and remove the top bolt that holds the
recline actuator to the back structure.
(fi gure 7.13.3)

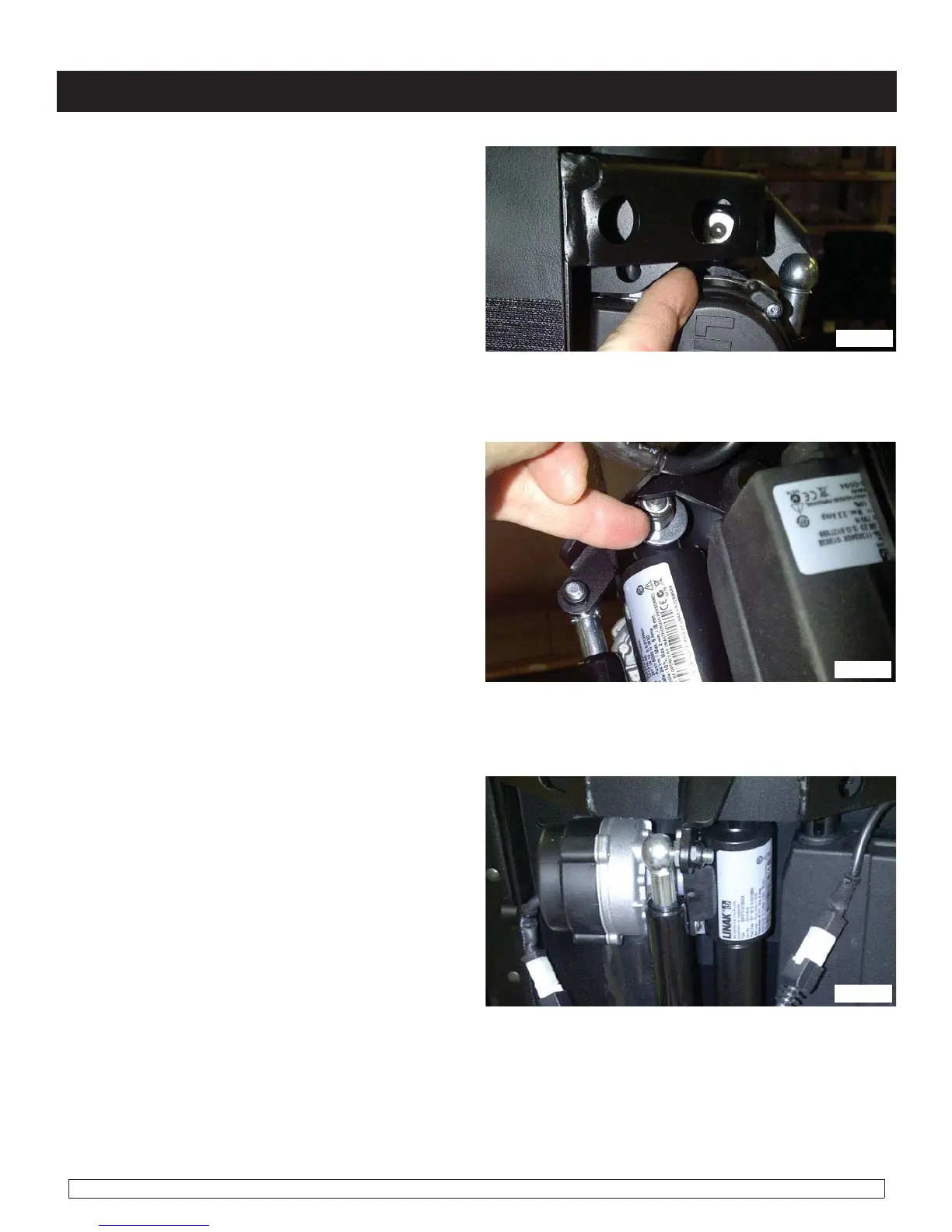

7. Prior to removal of the recline actuator,
observe the position of the top and bottom bracket
to ensure that it is mounted in the same position
during re-assembly. One side of the top bolt for
the Recline actuator is accessed as shown in
(fi gure 7.13.1). The nut and washer are found on
the other side as shown in (fi gure 7.13.2)
fig. 7.13.1
fig. 7.13.2
fig. 7.13.3
