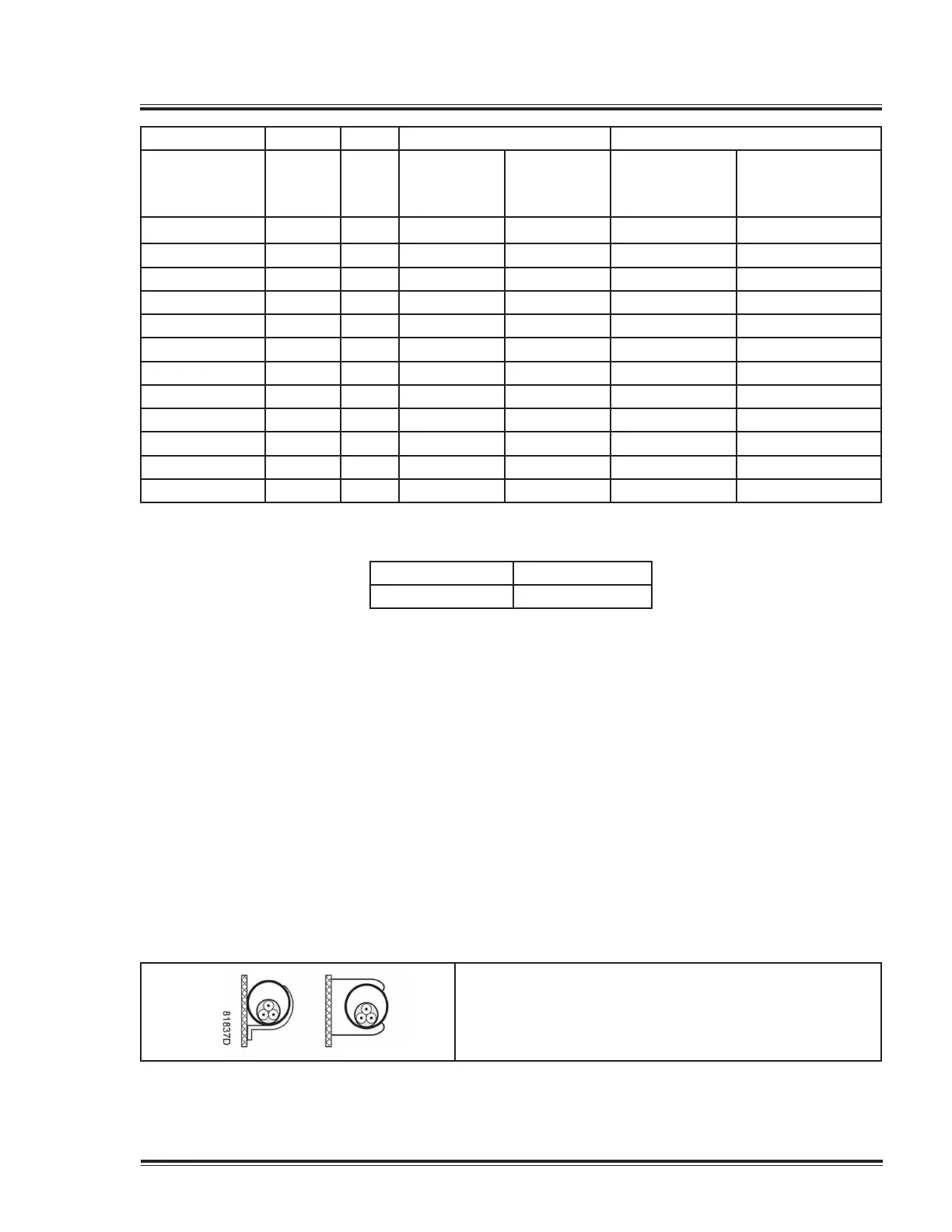

Section VIII - Technical data
Max. fuse pack Supply cables
Pump Voltage Freq.
IEC class
gL/gC
CSA HRC
from ii
Wire ends
Recommended
cable size
V Hz A A mm2 (P/FF)
QSV 430 230 60
50 50 end sockets 16
QSV 430 500 50
25 25 end sockets 4
QSV 430 575 60
20 20 end sockets 4
QSV 530 380 60
QSV 530 400 50
QSV 530 460 60
35 35 end sockets 10
QSV 530 200 50
80 80 end sockets 35
QSV 530 230 60
80 70 end sockets 25
QSV 530 500 50
32 30 end sockets 10
QSV 530 575 60
32 30 end sockets 6
I: current in the supply lines at maximum load and nominal voltage
Setting for circuit breakers
Q1 1A
Fuse calculations for IEC are done according to 60364-4-43 electrical installations of
buildings, part 4: protection for safety- section 43: protection against over current. Fuse
sizes are calculated in order to protect the cable against short circuit.
Fuse calculations for cUL and UL: The indicated fuse size is the maximum fuse size in
order to protect the motor against short circuit. For cUL fuse HRC form II, for UL fuse
class K5
Earthing
The earthing cable connected to the vacuum pump (PE) should be minimum 10 mm2
(according to EN 60204-1 section 828).
Cable sizing according IEC
The tables below indicate the current carrying capacities of cables for 3 commonly
used installation methods, calculated according to standard 60364-5-52 - electrical
installations of buildings part 5 - selection and erection equipment and section 52 -
current carrying capacities in wiring systems.
The allowed currents are valid for PVC insulated cables with three loaded copper
conductors (maximum conductor temperature 70 °C)
Installation method B2 according to table B.52.1.
Multi-core cable in conduit on a wooden wall.
Maximum allowed current in function of the ambient temperature for installation method
B2
Quincy Vacuum Pump-QSV Series 99
