Section III - Airlogic Graphic Controller
Modifying the setpoint

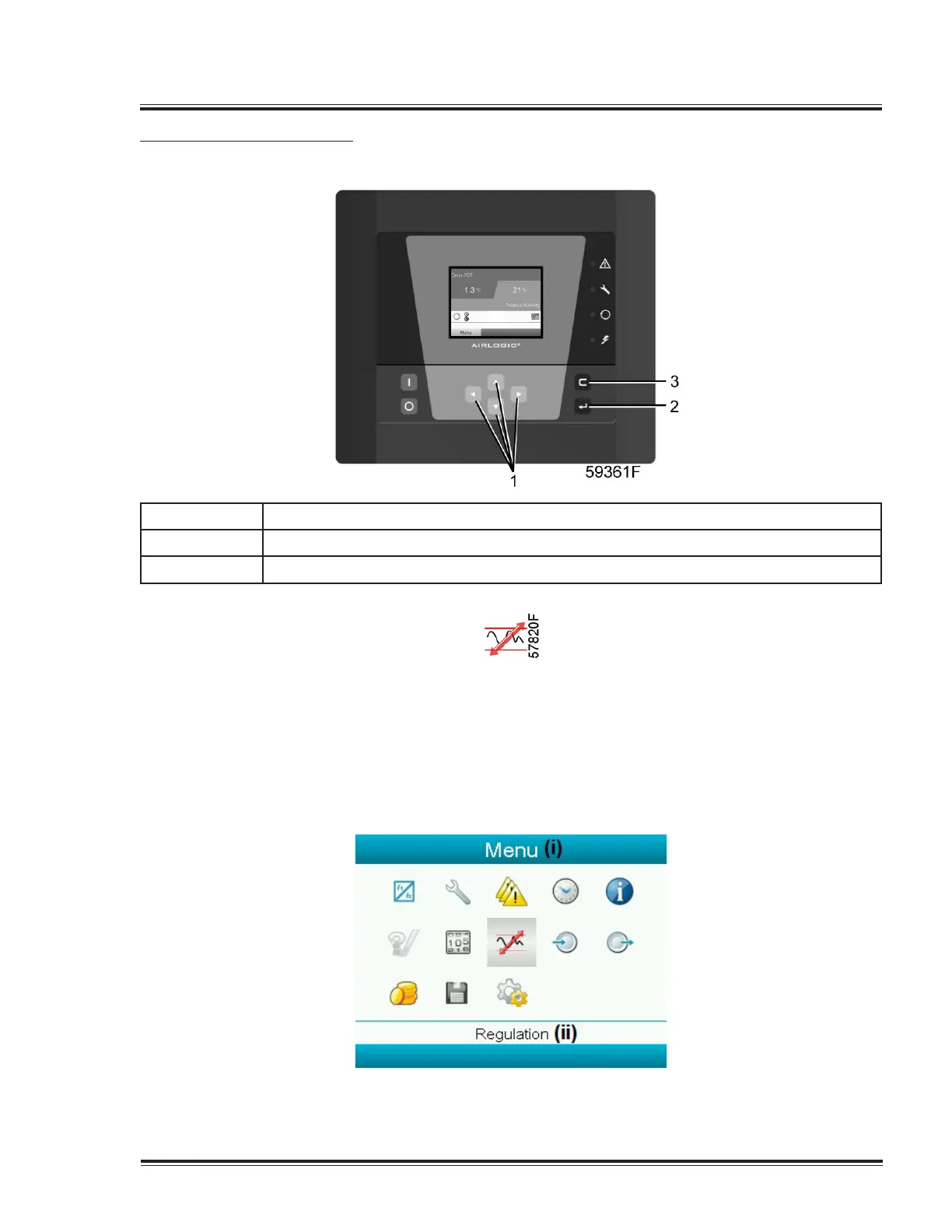

Control panel
(1) Scroll keys
(2) Enter key
(3) Escape key
Menu icon, setpoint
Function
On vacuum pumps with a frequency converter driven main motor, it is possible to
program two different setpoints. This menu is also used to select the active setpoint.
Procedure
Starting from the Main screen,
• Highlight the action key Menu using the Scroll keys and press the Enter key.
Following screen appears:
