Section III - Airlogic Graphic Controller
(iv) Automatic Operation
(v) General warning
• The screen shows a list of all out put switch their corresponding icons and readings.
• If an input is in warning or shut down, the original icon is replaced by the warning or
shut down icon respectively.
Counters

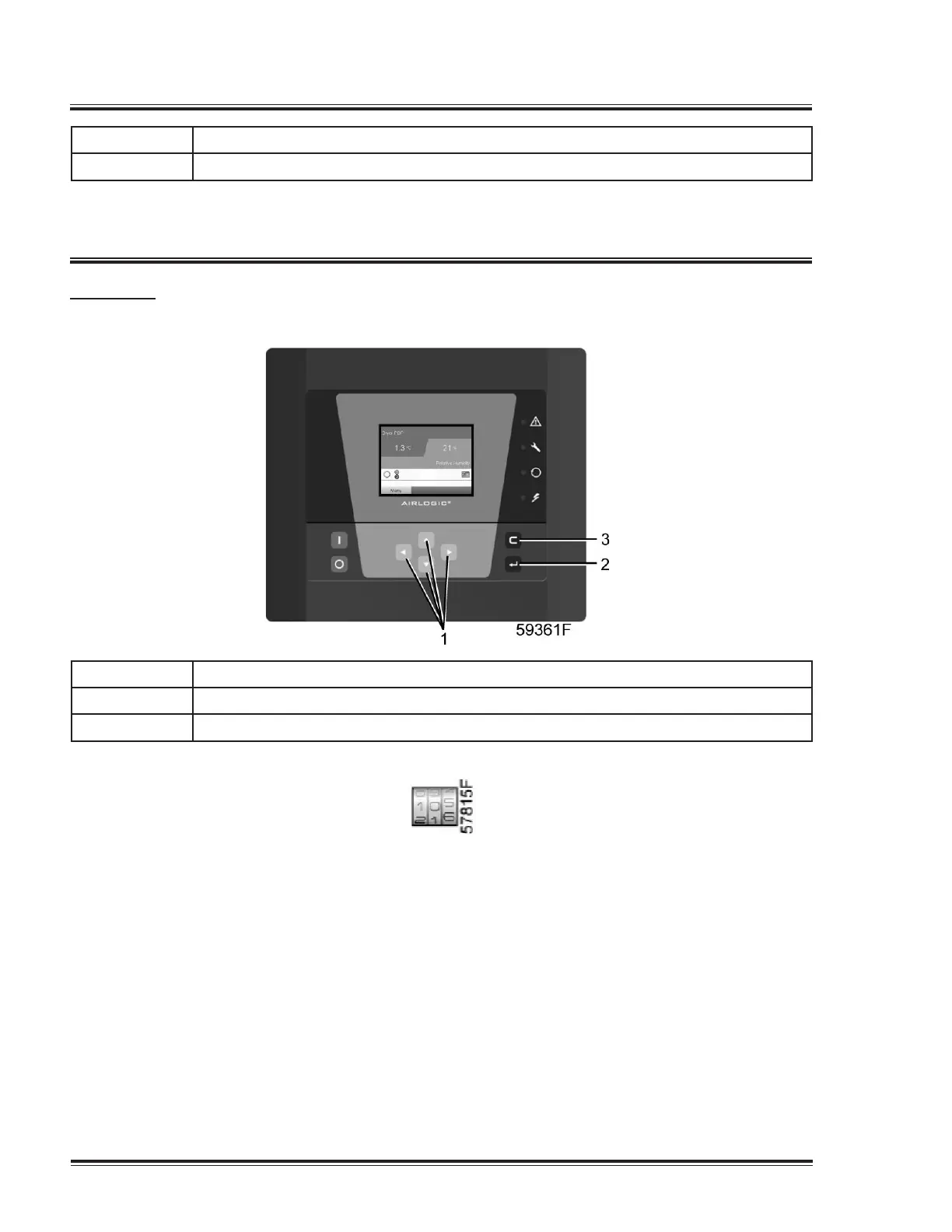

Control panel
(1) Scroll keys
(2) Enter key
(3) Escape key
Menu icon, outputs
Function
To call up:
• The running hours
• The number of motor starts
• The number of hours that the regulator has been powered up
• Fan starts
• Emergency stops
Procedure
• Starting from the Main screen (see Main screen):
• Move the cursor to the action button Menu and press the enter key (2),following
screen appears:
32 Quincy Vacuum Pump-QSV Series
