Section VI - Maintenance
Remove dirt from the coolers with a fibre brush. Brush in the direction of the cooling fins.
• Clean with an air jet in the reverse direction to normal ow.
• If it is necessary to wash the coolers with a cleaning agent, consult Quincy.
NOTICE!
After maintenance on the fan and on the coolers:
Remove the loose parts that are used as cover.

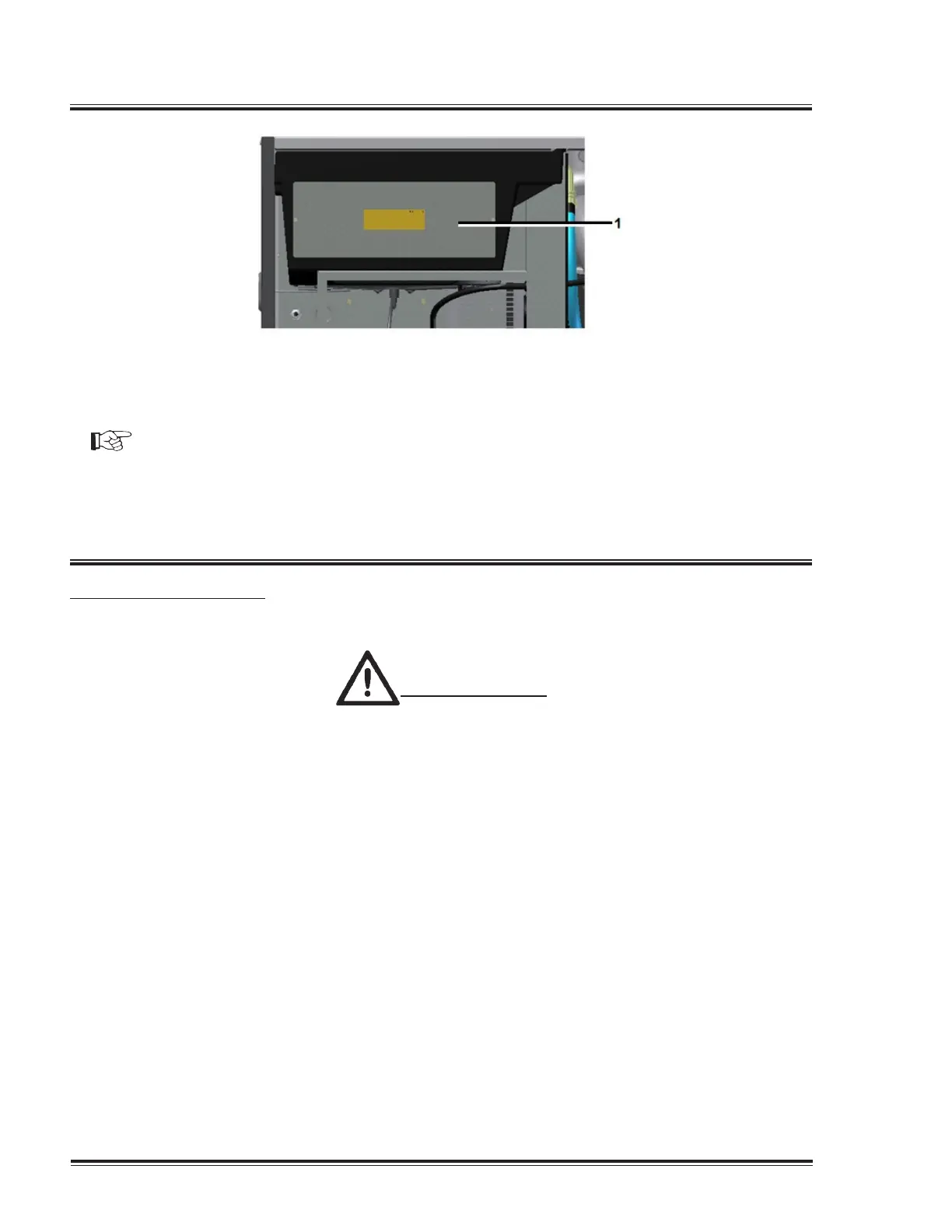

• Mount the service plate (1) at the fan compartment.
Oil separator change
Warning
CAUTION!
The operator must apply all relevant Safety precautions.
Procedure
• Stop the vacuum pump, close the air inlet valve and switch off the voltage.
• Wait a few moments for the vacuum pump to vent the vessel.
• Open the service panel in the roof.
• Unscrew the bolts of the cover (1) of the oil separator tank.
• Slide the cover (1) of the oil separator tank backwards
• Remove the oil separator elements (OS) by turning one quarter counter-clockwise
• Clean the seat on the shield. Lubricate the gasket of the new oil separator using
vacuum pump oil and screw it into place. Tighten by hand.
84 Quincy Vacuum Pump-QSV Series
