Section III - Airlogic Graphic Controller

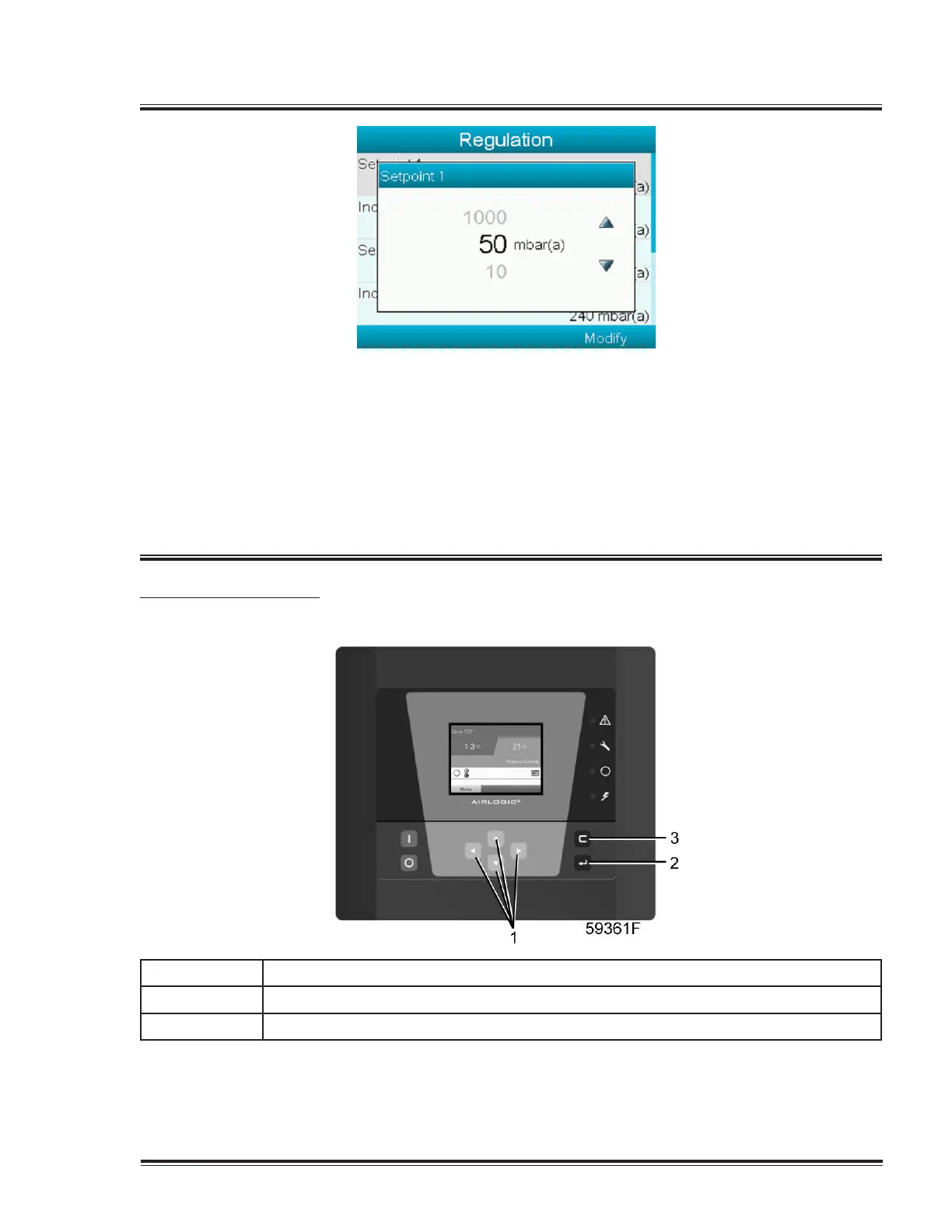

The upper and lower limit of the setting is shown in grey, the actual setting is shown in
black. Use the Scroll keys to modify the settings as required and press the Enter key to
accept.
If necessary, change the other settings as required in the same way as described above.
Indirect stop: occurs when the pressure decreases to the pre-set Indirect stop setpoint (=
setpoint minus Indirect stop level). The motor will decelerate to minimum speed and the
inlet valve will close.
Both settings (Indirect stop level and direct stop level) are programmable, see section
Programmable settings.
Event history menu
Control panel
(1) Scroll keys
(2) Enter key
(3) Escape key
Quincy Vacuum Pump-QSV Series 43
