Section III - Airlogic Graphic Controller

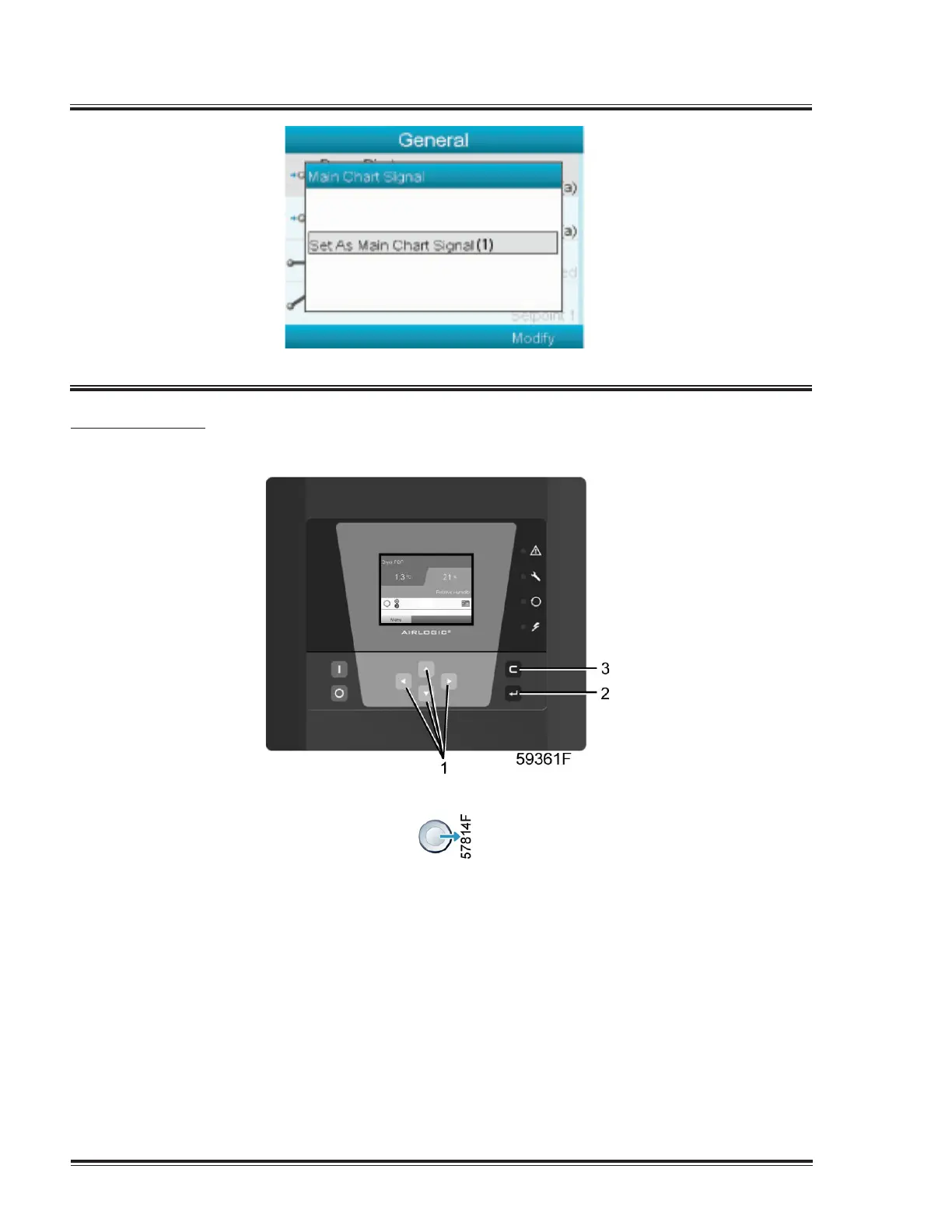

(1): Set as main chart signal
Outputs menu
Control panel
Menu icon, outputs
Function
To call up information regarding the actually measured data and the status of some in
puts such as the motor over load protection.
Procedure
Starting from the Main screen (see Main screen):
• Move the cursor to the action button Menu and press the enter key (2),following
screen appears:
30 Quincy Vacuum Pump-QSV Series
