Section III - Airlogic Graphic Controller
• Press the Enter key. The Quincy internet address appears on the screen.

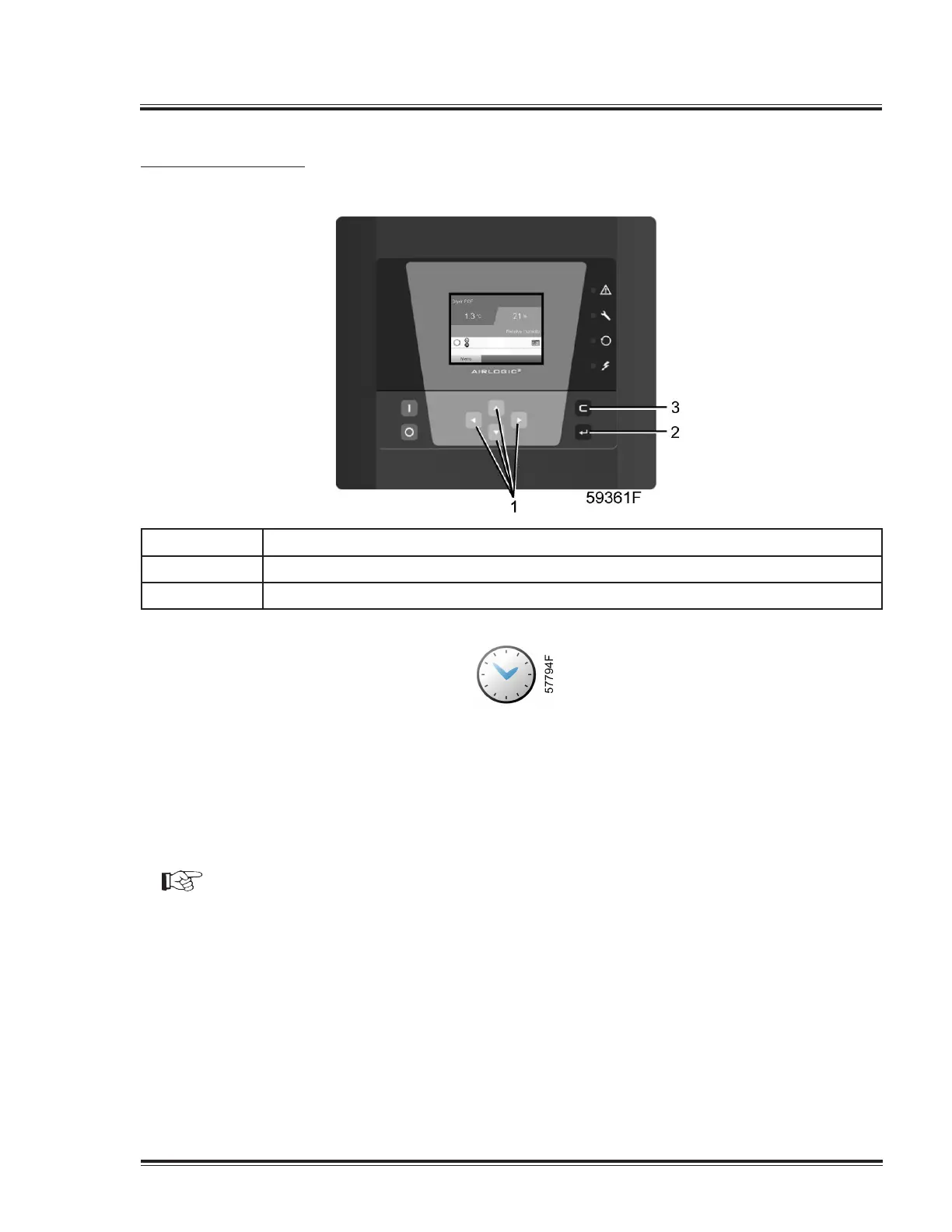

Week timer menu
Control panel
(1) Scroll keys
(2) Enter key
(3) Escape key
Menu icon, Week timer
Function
• To program time-based start/stop commands for the vacuum pump
• To program time-based change-over commands for the net pressure band
• Four different week schemes can be programmed.
• A week cycle can be programmed, a week cycle is a sequence of 10 weeks. For each
week in the cycle, one of the four programmed week schemes can be chosen.
NOTICE!
Important remark:
In the Airlogic you can select different timers on one day.(up to 8 actions). It is
however not possible to program 2 actions at the same time. The solution: leave at
least 1 minute in between 2 actions.
Example: Start Vacuum pump: 5.00 AM, Pressure setpoint 2: 5.01 AM (or later).
Procedure
Starting from the Main screen (see Main screen),
Quincy Vacuum Pump-QSV Series 49
